Si34-803 Troubleshooting by Indication on the Remote Controller
Troubleshooting 301
3.29 “
J3
” Outdoor Unit: Malfunction of Discharge Pipe
Thermistor (R3, R31~33T)
Remote
Controller
Display
J3
Applicable
Models
RXYQ5P(A)~54P(A)
Method of
Malfunction
Detection
Malfunction is detected from the temperature detected by discharge pipe temperature
thermistor.
Malfunction
Decision
Conditions
When a short circuit or an open circuit in the discharge pipe temperature thermistor is detected.
Supposed
Causes
Defect of thermistor (R31T, R32T or R33T) for outdoor unit discharge pipe
Defect of outdoor unit PC board (A1P)
Defect of thermistor connection

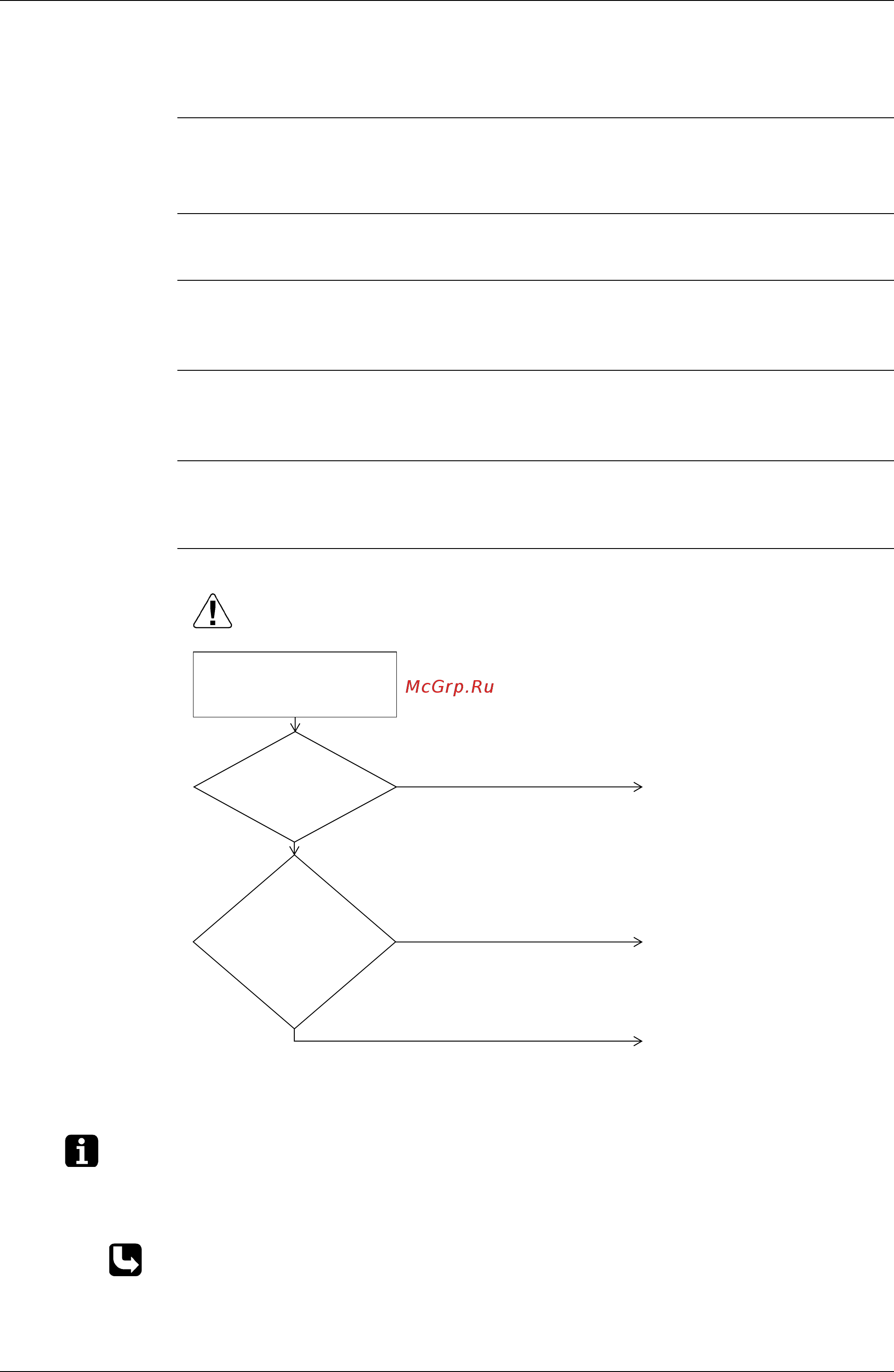

Troubleshooting
The alarm indicator is displayed when the fan is being used also.
Note: 5 HP class ··· R3T
8~12 HP class ··· R31T, R32T
14, 16Hp class ··· R31T, R32T and R33T
∗ Refer to “Thermistor Resistance / Temperature Characteristics” table on P.428.
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Resistance
is normal when
measured after
disconnecting the thermistor
R31, 32T or R33T from the
outdoor unit PC board.
(2.5kΩ to
1.3kΩ)
Replace outdoor unit PC board
(A1P).
Connect the connector and turn on
again.
NO
NO
Replace the thermistor (R31, 32T
or R33T)
YES
YES
Connector
is connected to X29A
of outdoor unit
PC board
(A1P).
Confirm which discharge
thermistor is abnormal using
outdoor unit "monitor mode".
(Refer to page 256 and 257)
