MENU SCREEN OPERATION
11

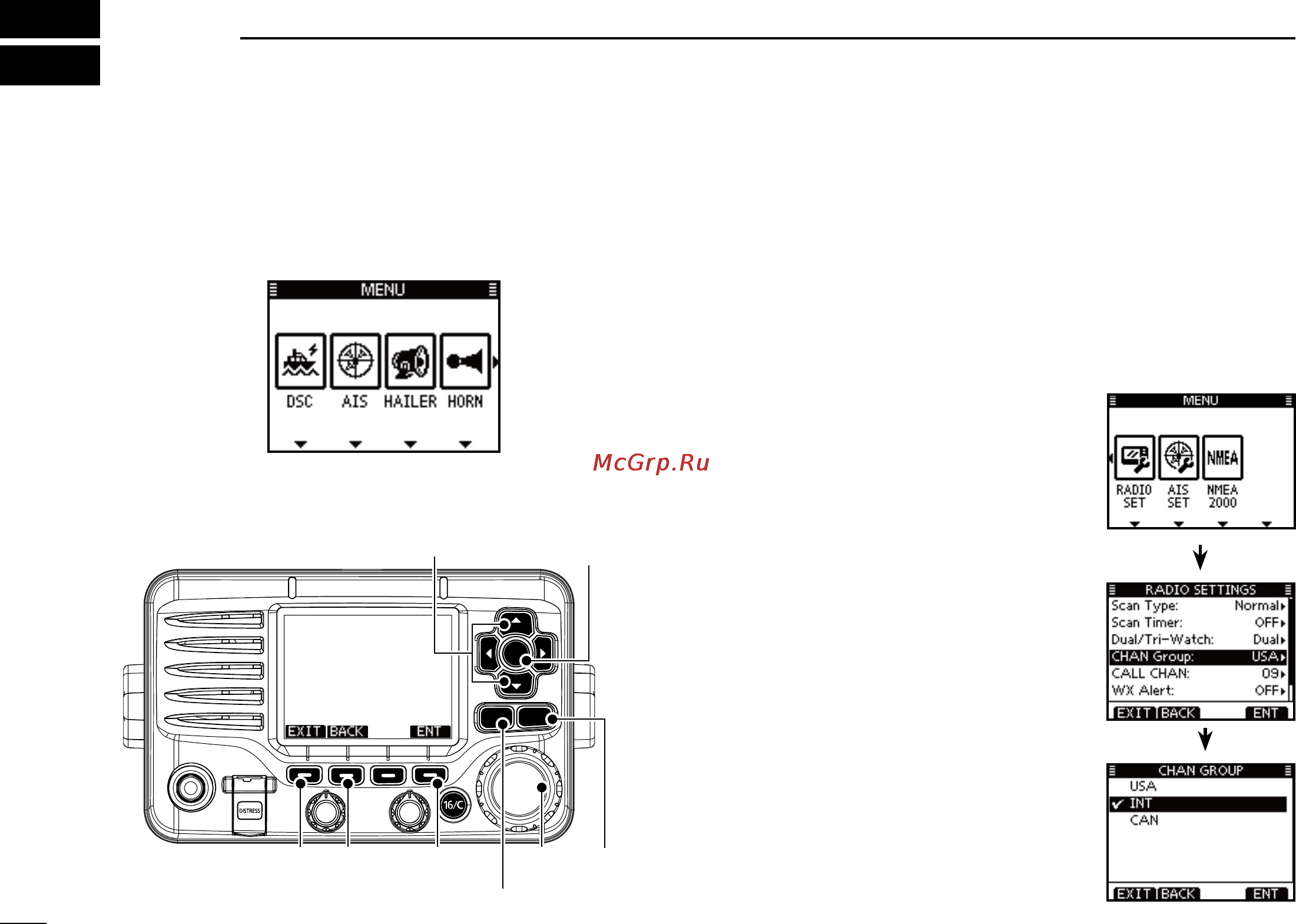

■ Menu screen operation
The Menu screen is used for programming infrequently
changed values, function settings or sending DSC calls.
D
Entering the Menu screen and operation
Example: Set the channel group to “INT”.
q Push [MENU].
w Rotate dial or push [Ω]/[≈] to select
the “RADIO SET” icon and then push
the softkey below the icon.
e Rotate dial or push [∫]/[√] to se-
lect “CHAN Group,” and then push
[ENT].
Rotate dial or push [ r ∫]/[√] to select
“INT” and then push [ENT] to set it.
•“✔” is displayed next to “INT.”
t
Push [EXIT] to exit the Menu screen.
•Push [CLEAR] or [BACK] to return to
the previous screen.
CLEARMENU
ENT
CH
CH
[ENT]
[Y]/[Z]
[CLEAR][EXIT] [ENT][BACK] Dial
[MENU]
Menu icons
