DSC OPERATION
New2001
D Deleting Individual/Group ID

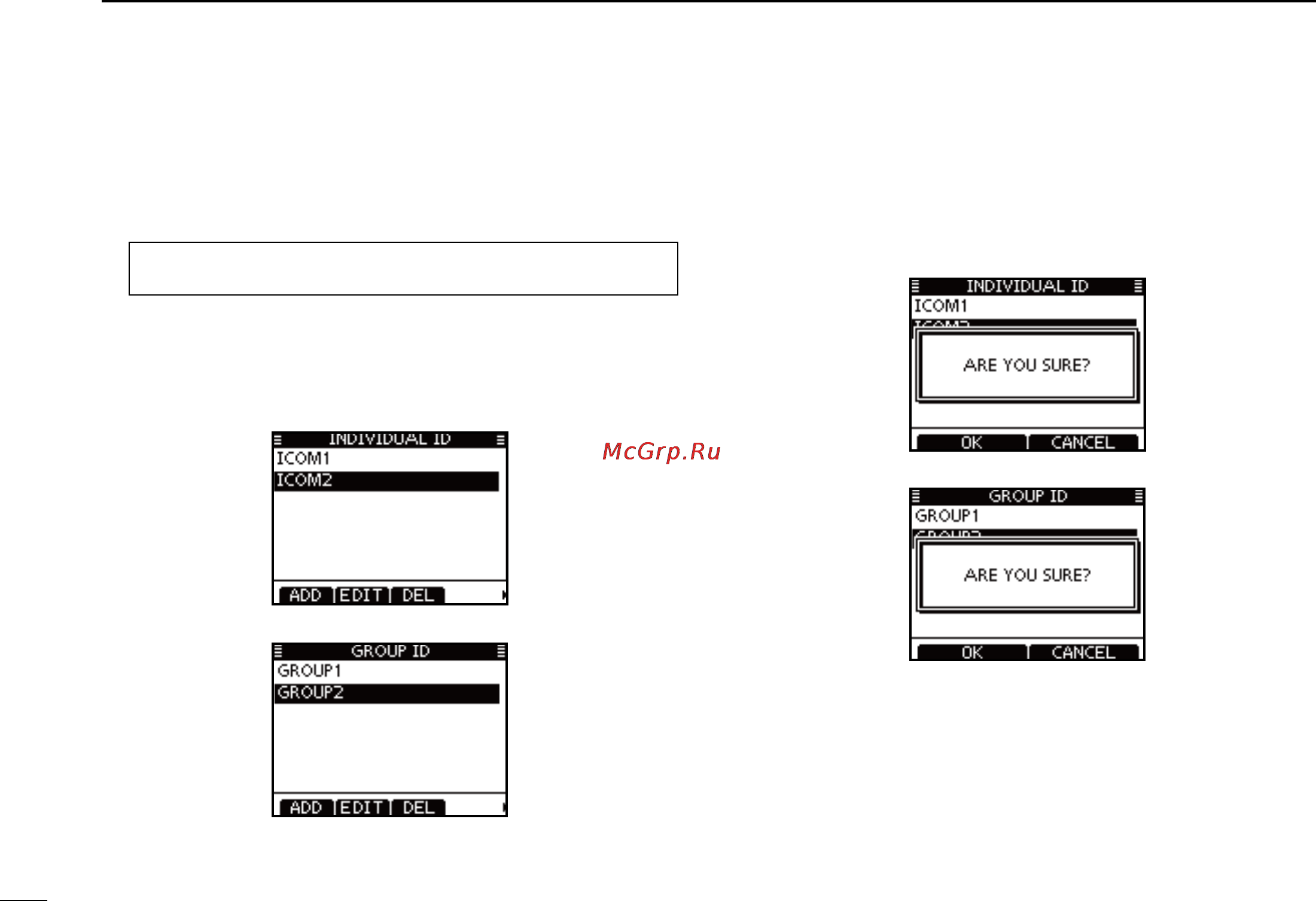

q Enter “INDIVIDUAL ID” or “GROUP ID” in the DSC SET-
TINGS menu.
•WhennoaddressIDisprogrammed,“NoID”isdisplayed.Inthis
case, push [MENU] to exit the MENU screen.
w Rotate dial or push [Y]/[Z] to select a desired ID name,
then push [DEL].
e Push [OK] to delete the ID, and return to the “INDIVIDUAL
ID” or “GROUP ID” list screen.
•Push[CANCEL]tocancelit.
r Push [MENU] to exit the MENU screen.
MENU ➪ DSC SET ➪
Individual ID
/
Group ID
(Push [MENU]) (Select icon)
(Rotate Dial, then push [ENT].)
