DSC OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
New2001
Manual Reply:

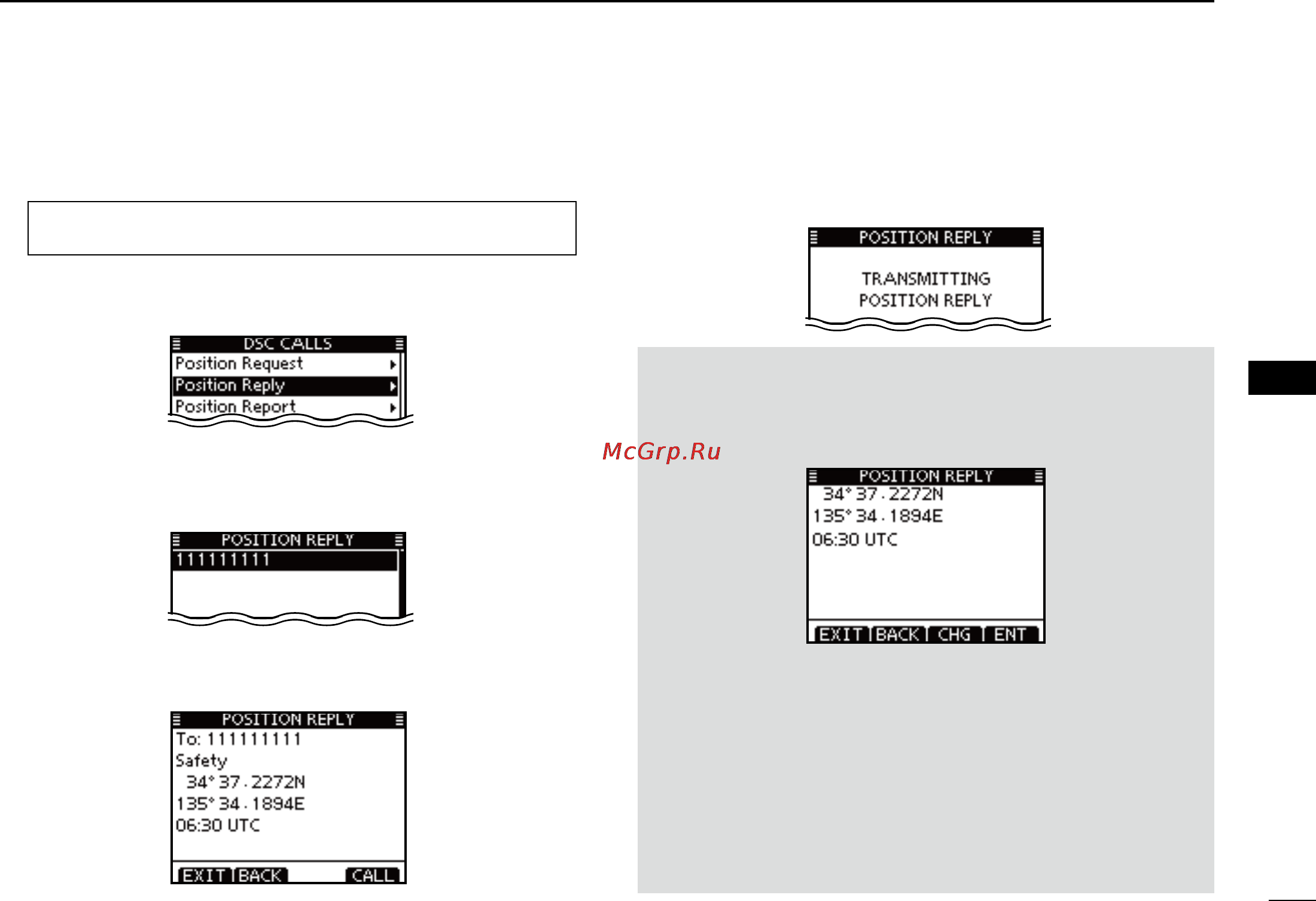

Enter “POSITION REPLY” in the DSC CALLS menu. q
MENU ➪ DSC ➪ Position Reply
(Push [MENU]) (Select icon)
(Rotate dial, then push [ENT].)
•IfnoPositionRequestcallhasbeenreceived,the“POSITION
REPLY” item will not be displayed.
Select a desired Position Request call to reply to, using w
dial or [Y]/[Z], then push [ENT].
e The Position Reply call confirmation screen is displayed.
Push [CALL] to transmit the acknowledgement call.
r While transmitting the reply call, the screen shown below
is displayed, and then returns to the normal operating
mode.
When no GPS receiver is connected, and both position and
time have been manually programmed, the screen shown
below is displayed. Edit your latitude and longitude position
and UTC time as follows:
Push [CHG], then edit your latitude and longitude position ➥
and UTC time.
•Selectadesirednumberusing[Y]/[Z]/[Ω]/[≈].
•Push[ENT]ordialtosetit.
•Tomovethe cursor,rotatedial orselect eitherarrow,“←” or
“→,” then push [ENT] or dial.
•SelectN(Northlatitude)orS(Southlatitude)whenthecursor
is on the ‘N’ or ‘S’ position.
•SelectW(Westlongitude)orE(Eastlongitude)whenthecur-
sor is on the ‘W’ or ‘E’ position.
