80
9
AIS RECEIVER (Depending on versions)
Function display ■
There are three types of function display; plotter, target list
and danger list, and you can select your desired type using
the [DISP] key.
q Push [MENU].
w Rotate dial or push [Ω]/[≈] to select the “AIS” icon and then
push the softkey below the icon.
•AISplotterisdisplayed.
e
Push [Y]/[Z] to adjust the plotter range.

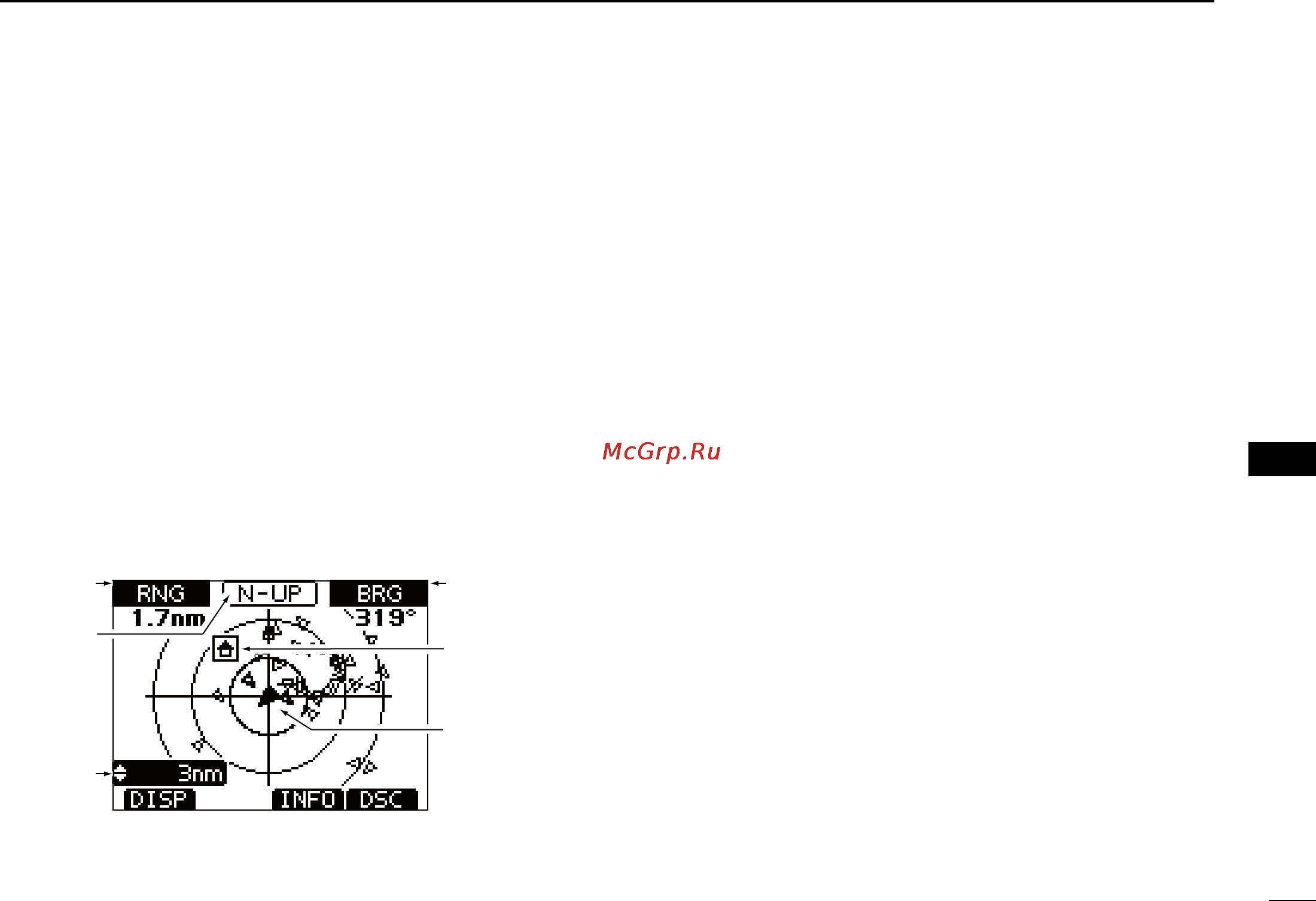

D Plotter screen
After select the “AIS” icon in the menu screen, the plotter screen
is displayed. If the GPS is connected and it receives signals from
a satellite. It shows the display range and the icons of the AIS
targets.
q DISPLAY TYPE
Shows the selected display type. You can select the dis-
play type from “AIS SET” in the menu screen (p. 87)
•When“N-UP”isdisplayed,thetopofthe plotterscreenrepre-
sents North.
•When“AC-UP”isdisplayed,thetopoftheplotterscreenrepre-
sents the direction your course is heading.
w RANGE/CPA INFORMATION
➥ Shows the range information from your vessel to the se-
lected AIS target.
➥ Shows the CPA (Closest Point of Approach) information
of the selected AIS target whose CPA is within 6 nm
(nautical miles) and TCPA (Time to CPA) is within 60
minutes of your vessel.
e BEARING/TCPA INFORMATION
➥ Shows the bearing information from your vessel to the
selected AIS target.
➥ Shows TCPA information of the selected AIS target
whose CPA is within 6 nm (nautical miles) and TCPA is
within 60 minutes of your vessel.
r TARGET BOX
Shows the selected AIS target.
•When a target box appears, push [ENT] to display the detail
screen of the selected AIS target.
1
2
3
4
6
7
8
10
11
12
13
14
15
16
r
y
t
q
e
w
4
9
