73
7
DSC OPERATION
New2001

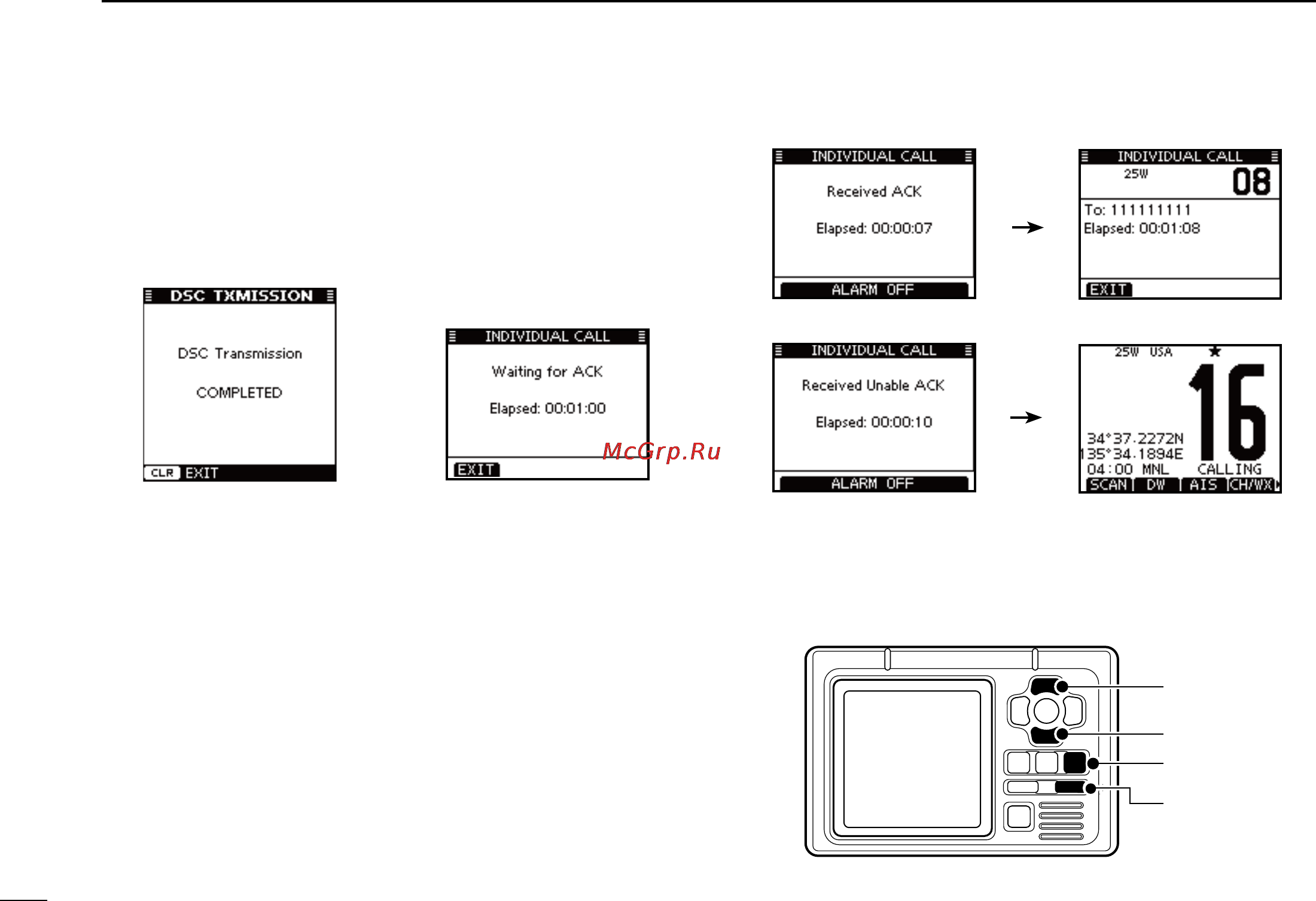

After making the individual DSC call, the transponder will r
display “DSC Transmission COMPLETED.”
•Push[CLEAR]toreturntothescreendisplayedbeforeyouen-
tered the voice channel selection screen in step w.
•ThetransceiverstandsbyonChannel70untilanacknowledge-
ment is received.
Transponder’s display Transceiver’s display
Step 2: Transceiver’s operation
When the acknowledgement is received, alarm sounds. t
If the acknowledgement ➥ ‘Able to comply
’ is received,
push [ALARM OFF] to stop the alarm, and then select
the intership channel specified in step w.
•Adifferentintershipchannelwillbeselectedifthestationyou
called cannot use the channel.
•Toreply,push[PTT]andspeakatanormalvoicelevel.
•YoucanchecktheMMSIcodeorthename,ifprogrammed,
of the AIS target on the display.
If the acknowledgement ➥ ‘Unable to comply’ is received,
push [ALARM OFF] to stop the alarm, and then return
to the operating channel before you entered the MENU
screen.
y
After the communication is finished, push [EXIT] to return
to the normal operating mode.
[DSC]
[CLEAR]
[Z]
[Y]
TRANSPONDER
‘Able to comply’ is received
‘Unable to comply’ is received
