32
7
CHAPTER CONTINUED
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

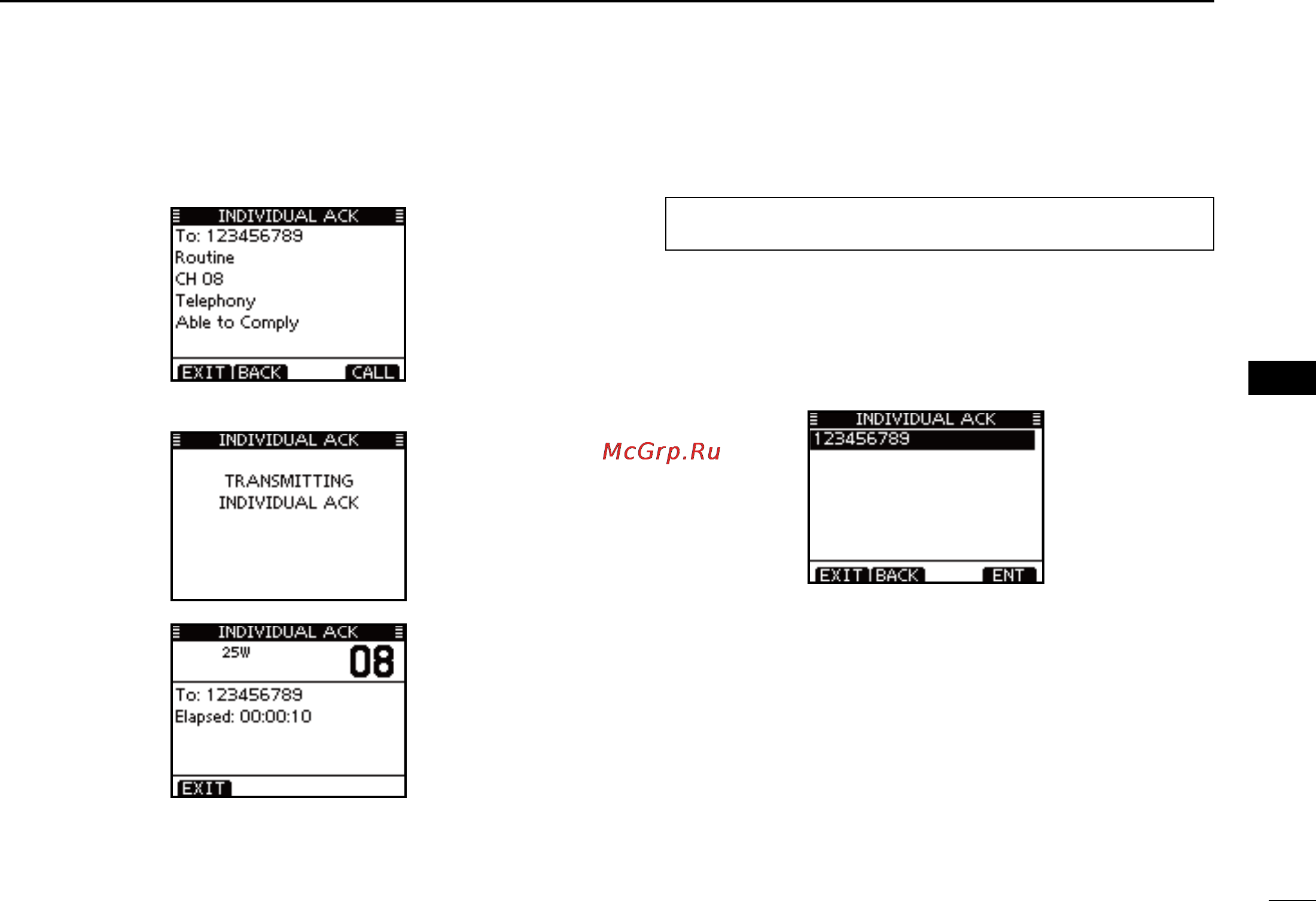

The Individual ACK confirmation screen is displayed. r
Push [CALL] to transmit an acknowledgement call.
The screens shown below are displayed. t
Reply to the call using the microphone. y
Push [EXIT] to return to the normal operating mode. u
Manual ACK:
Enter “INDIVIDUAL ACK” in the DSC CALLS menu. q
MENU ➪ DSC ➪ Individual ACK
(Push [MENU]) (Select icon)
(Rotate dial, then push [ENT].)
•WhennoIndividualcallhasbeenreceived,“IndividualACK”item
will not be displayed.
Select a desired individual address or ID name to reply to, w
using dial or [Y]/[Z], then push [ENT].
Perform steps e e to u, as described in “Quick ACK:,” be-
ginning on the previous page.
