Icom IC-M506 [50/124] Dsc operation

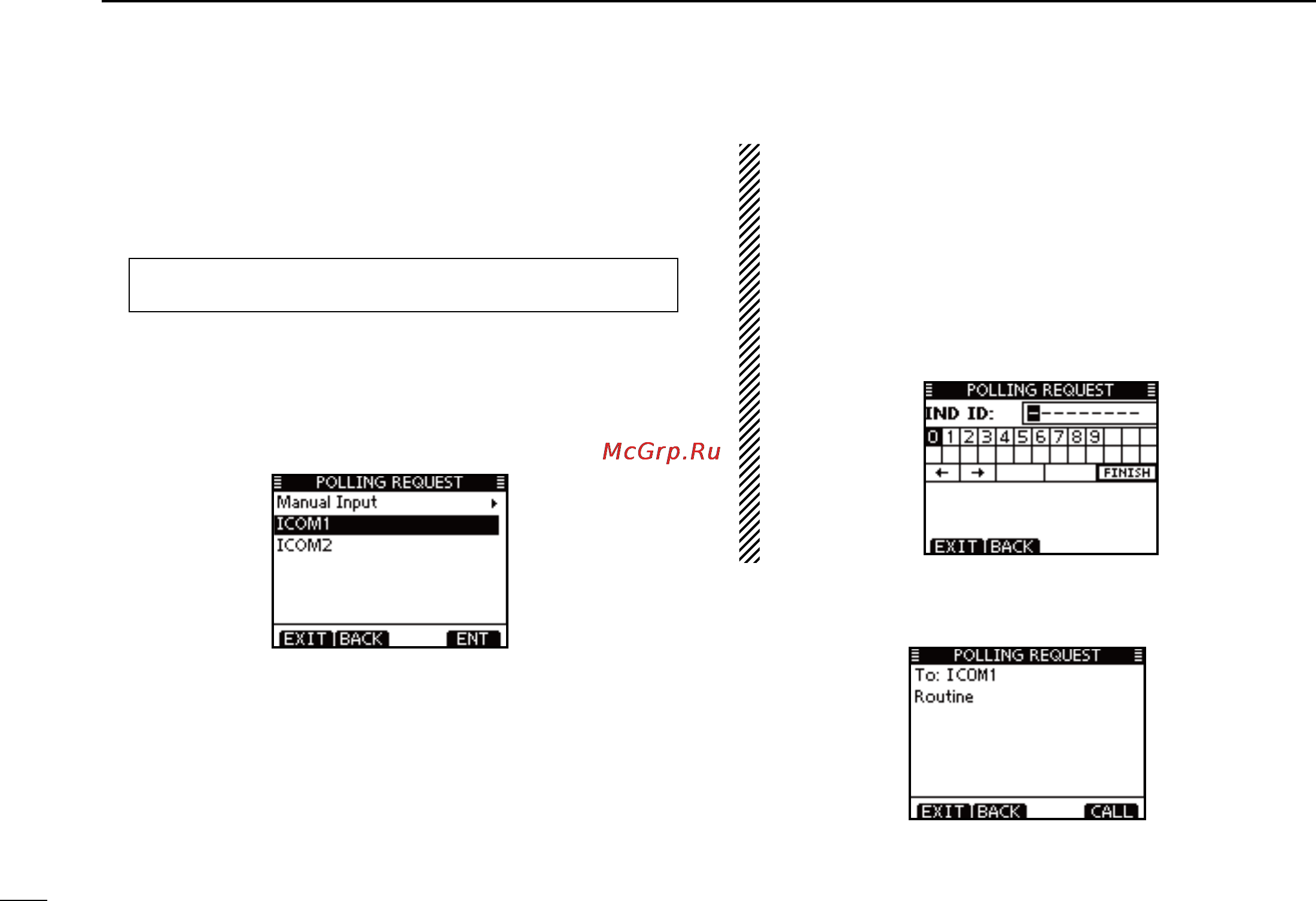

![Icom IC-M506 [50/124] Dsc operation](/views2/1074276/page50/bg32.png)
41
7
DSC OPERATION
New2001
Transmitting a Polling Request Call D
Transmit a Polling Request Call when you want to know a
specific vessel is in the communication area, or not.
Enter “POLLING REQUEST” in the DSC CALLS menu. q
MENU ➪ DSC ➪ Polling Request
(Push [MENU]) (Select icon)
(Rotate dial, then push [ENT].)
Select the desired pre-programmed individual address, or w
“Manual Input,” using dial or [Y]/[Z], then push [ENT].
•TheIDcodefortheIndividualcallcanbesetrst.(p.19)
•When“ManualInput”isselected,setadesired9digitMMSIID
code for the individual you wish to call.
About Manual Inputting:
Enter a desired individual ID in the following way:
•Selectadesirednumberusing[Y]/[Z]/[Ω]/[≈].
•Push[ENT]ordialtosetit.
•Tomovethecursor,rotatedialorselecteitherarrow,“←” or “→,”
then push [ENT] or dial.
•Therstdigitisspeciedas‘0’foraGroupID.IfaGroupIDis
entered, an error beep sounds after pushing [FINISH].
•Thersttwodigitsare‘0’foranycoaststationID.
A confirmation screen is displayed. e
•Conrmthecallcontents.
