DSC OPERATION
New2001New2001
D Transmitting a Test Acknowledgement call
When the “TEST ACK” in DSC settings is set to ‘Auto’
(p. 68), the transceiver automatically transmits a reply call
when receiving a Test call.
Quick ACK:

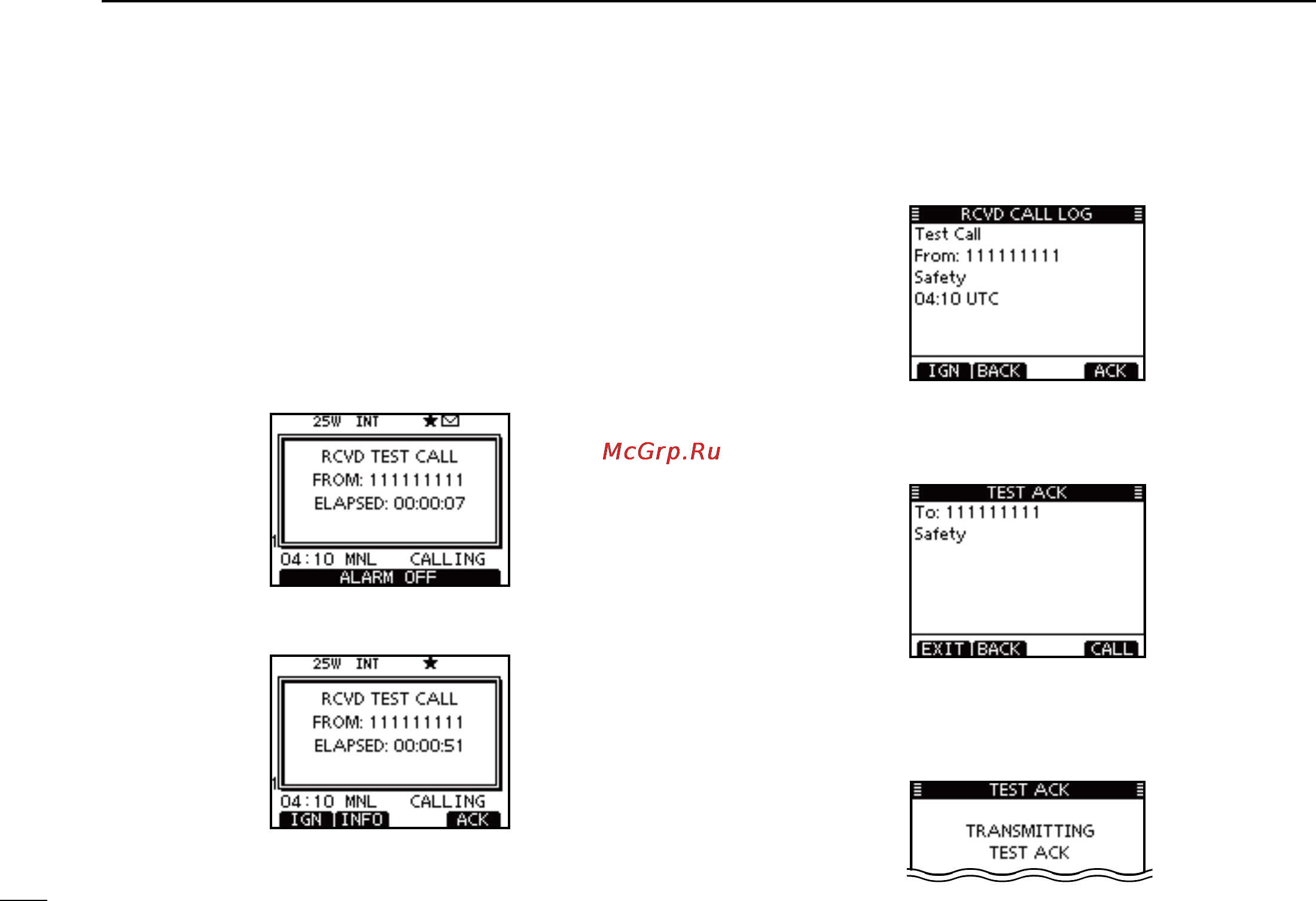

q When a Test call is received, alarm sounds and the screen
shown below is displayed.
Push [ALARM OFF] to stop the alarm.
•Evenifyoudonotpush[ALARMOFF],thealarmstopsafter2
minutes, and then the screen in step w is displayed.
Push [ACK]. w
•Push[INFO]todisplaytheTestcallinformation.
Push [BACK] to return to the previous screen, or push [ACK].
The Test ACK confirmation screen is displayed. e
Push [CALL] to transmit the acknowledgement call.
r While transmitting the acknowledgement call, the screen
shown below is displayed, and then returns to the normal
operating mode.
