DSC OPERATION
New2001New2001
D Transmitting a Position Report Reply call
Transmit a Position Report Reply call when a Position Report
call is received.

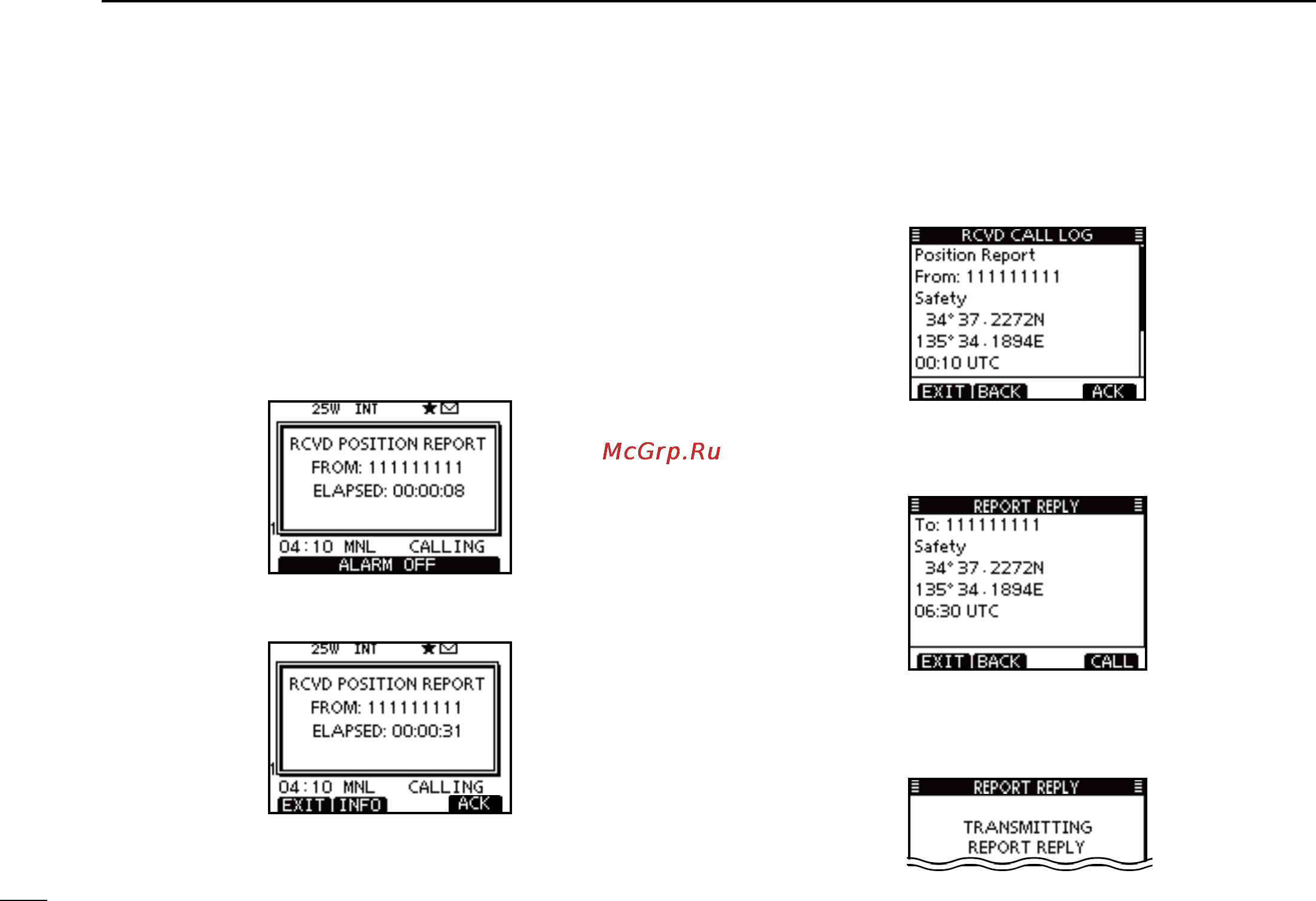

Quick Reply:
q When a Position Report Request is received, alarm sounds
and the screen shown below is displayed.
Push [ALARM OFF] to stop the alarm.
•Evenifyoudonotpush[ALARMOFF],thealarmstopsafter2
minutes, and then the screen in step w is displayed.
w Push a softkey to select your desired action.
•Push[INFO]todisplaythePositionReportRequestcallinforma-
tion.
Push [EXIT] to return to the previous screen.
e The Position Report Reply confirmation screen is dis-
played.
Push [CALL] to transmit the reply call.
r While transmitting the reply call, the screen shown below
is displayed, and then returns to the normal operating
mode.
