52
7
DSC OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

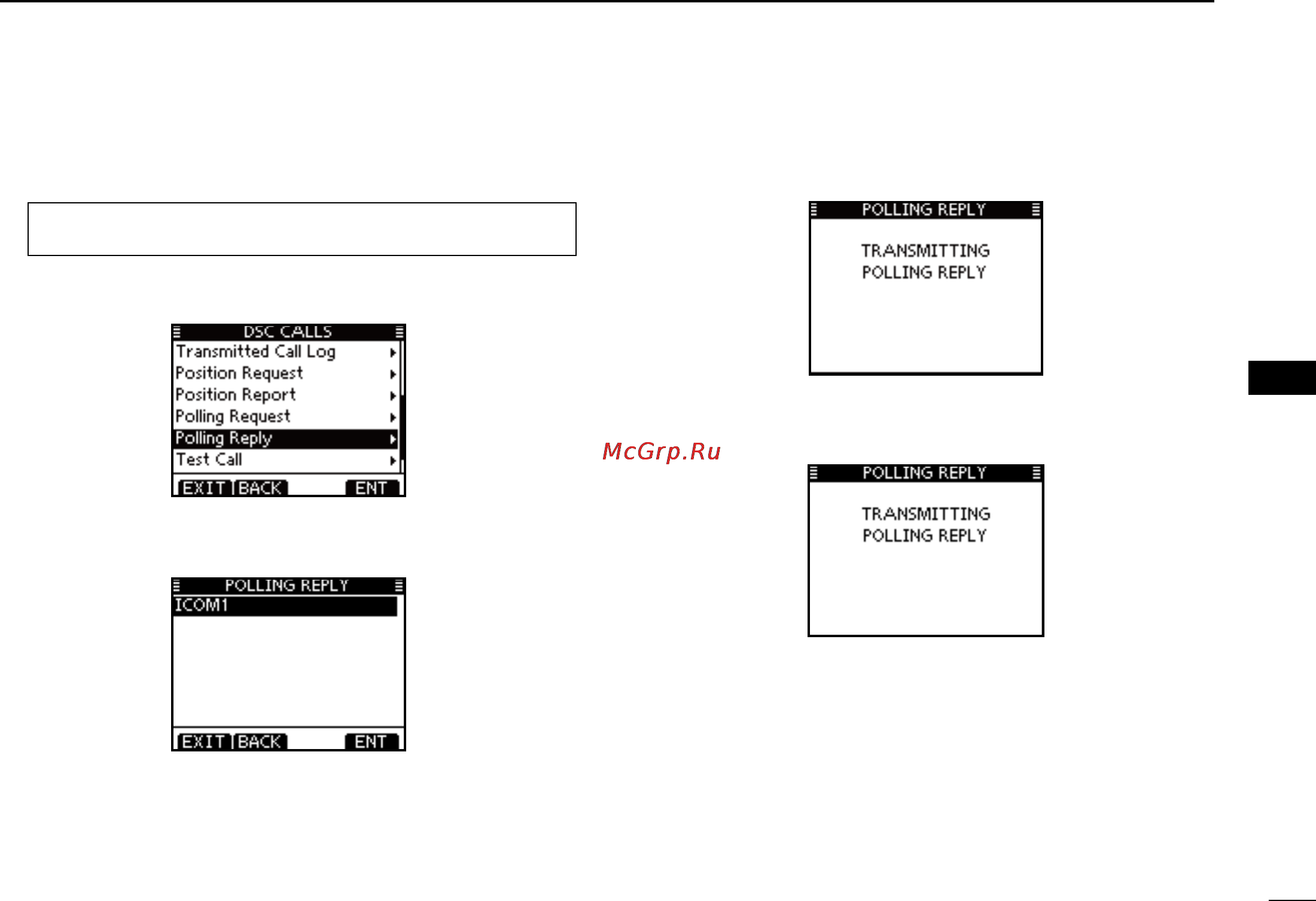

Manual Reply:
Enter “POLLING REPLY” in the DSC CALLS menu. q
MENU ➪ DSC ➪ Polling Reply
(Push [MENU]) (Select icon)
(Rotate dial, then push [ENT].)
•IfnoPollingRequestcallhasbeenreceived,the“POLLINGRE-
PLY” item will not be displayed.
Select a desired Polling Request call to be replied, using w
dial or [Y]/[Z], then push [ENT].
e
The Polling Reply call confirmation screen is displayed.
Push [CALL] to transmit the acknowledgement call.
r While transmitting the reply call, the screen shown below
is displayed, and then returns to the normal operating
mode.
