78
8
OTHER FUNCTIONS
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

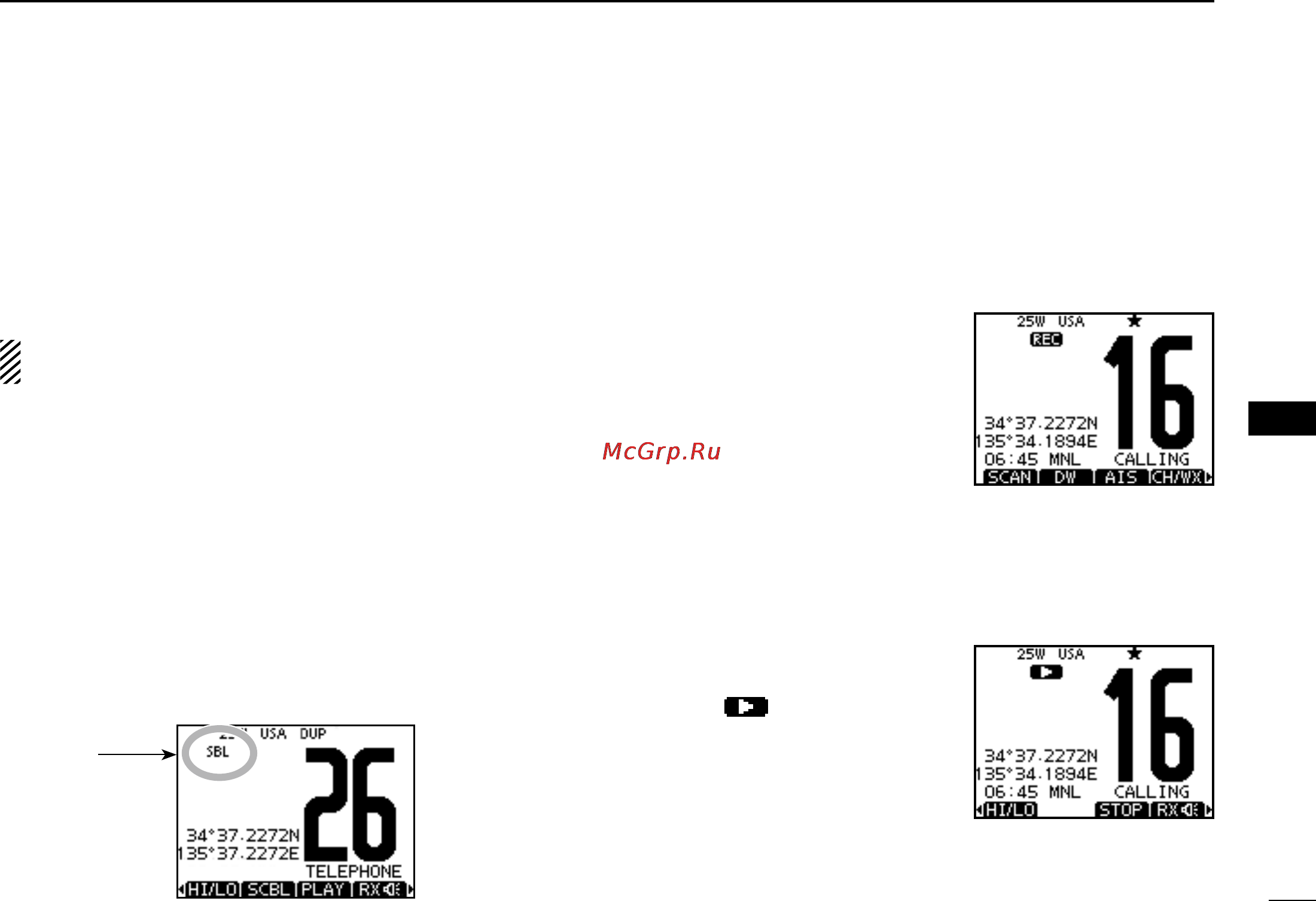

■ Voice scrambler operation
The voice scrambler provides private communications. In
order to receive or send scrambled transmissions, you must
activate the scrambler function. You also need to program
the scrambler code in the Menu screen. (p. 98)
The scrambler function automatically turns OFF when
Channel 16 or 70 is selected.
q
Select an operating channel except Channel 16, 70 or
weather channels.
w
Push [SCBL] to turn the Voice Scrambler ON or OFF.
•The“SBL”iconappearswhenthevoicescramblerisON.
D Programming scrambler codes
There are 32 codes (1 to 32) available for programming. Set
the code in the Menu screen. In order to understand each
other, all transceivers in your group must have the same
scramble code. See page 98 for scrambler code setting de-
tails.
Voice recorder function ■
This transceiver has an automatic recording function that can
record the last 120 seconds of the receiving audio. You can
playback the audio that you could not hear clearly.
Starts recording automatically
when the signal is received.
•The“REC”iconappearswhilere-
cording.
•Stops recording 3 seconds after
the signal disappears.
•Stopsrecording when the channel
is changed.
•Therecordedvoicedataiserased
when the transceiver is turned
OFF.
q Push [PLAY] to playback the
recorded voice.
•The“ ” icon appears while
playing.
w Push [STOP] to return to nor-
mal operating screen.
D Playback the recorded voice
Appears
(Available when the scrambler unit is installed)
