Transmitting DSC calls ■
To ensure correct operation of the DSC function, make
sure you correctly set the CH70 SQL Level. (p. 71)

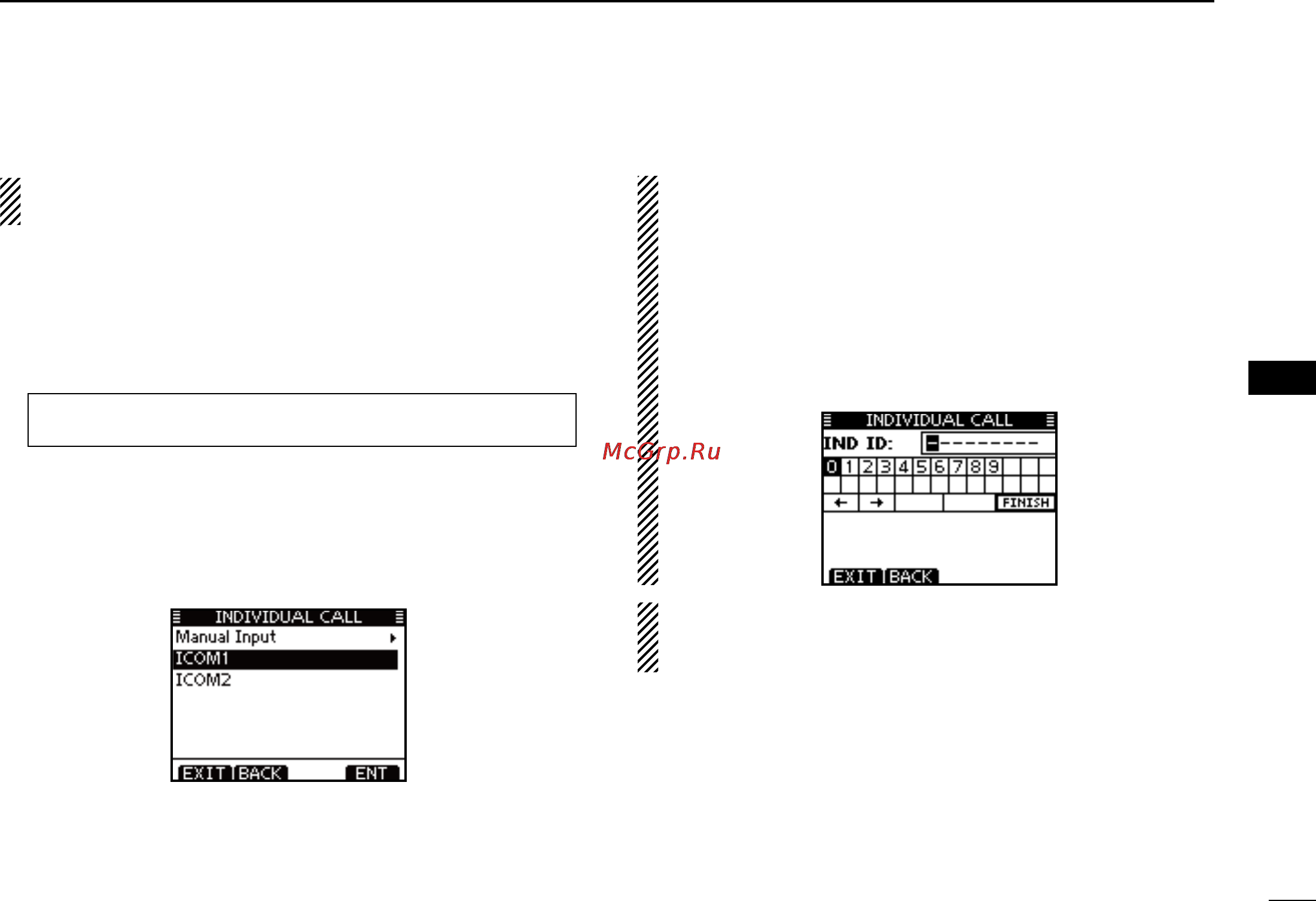

Transmitting an individual call D
The Individual call function allows you to transmit a DSC sig-
nal to only a specific station.
Enter “INDIVIDUAL CALL” in the DSC CALLS menu. q
MENU ➪ DSC ➪ Individual Call
(Push [MENU]) (Select icon)
(Rotate dial, then push [ENT].)
Select the desired pre-programmed individual address, or w
“Manual Input,” using dial or [Y]/[Z], then push [ENT].
•TheIDcodefortheIndividualcallcanbesetrst.(p.19)
•When“ManualInput”isselected,setadesired9digitMMSIID
code for the individual you wish to call.
About Manual Inputting:
Enter a desired individual ID in the following way:
•Selectadesirednumberusing[Y]/[Z]/[Ω]/[≈].
•Push[ENT]ordialtosetit.
•Tomovethecursor,rotatedialor select either arrow, “←” or “→,”
then push [ENT] or dial.
•Therstdigitisspeciedas‘0’foraGroupID.IfaGroupIDis
entered, an error beep sounds after pushing [FINISH].
•Thersttwodigitsare‘0’foranycoaststationID.
NOTE: When a coast station is selected in step w, the
voice channel is automatically specified by the coast sta-
tion. Therefore, skip step e and go directly to step r.
+ Continued on the next page.
