DSC OPERATION
Receiving an All Ships Call D

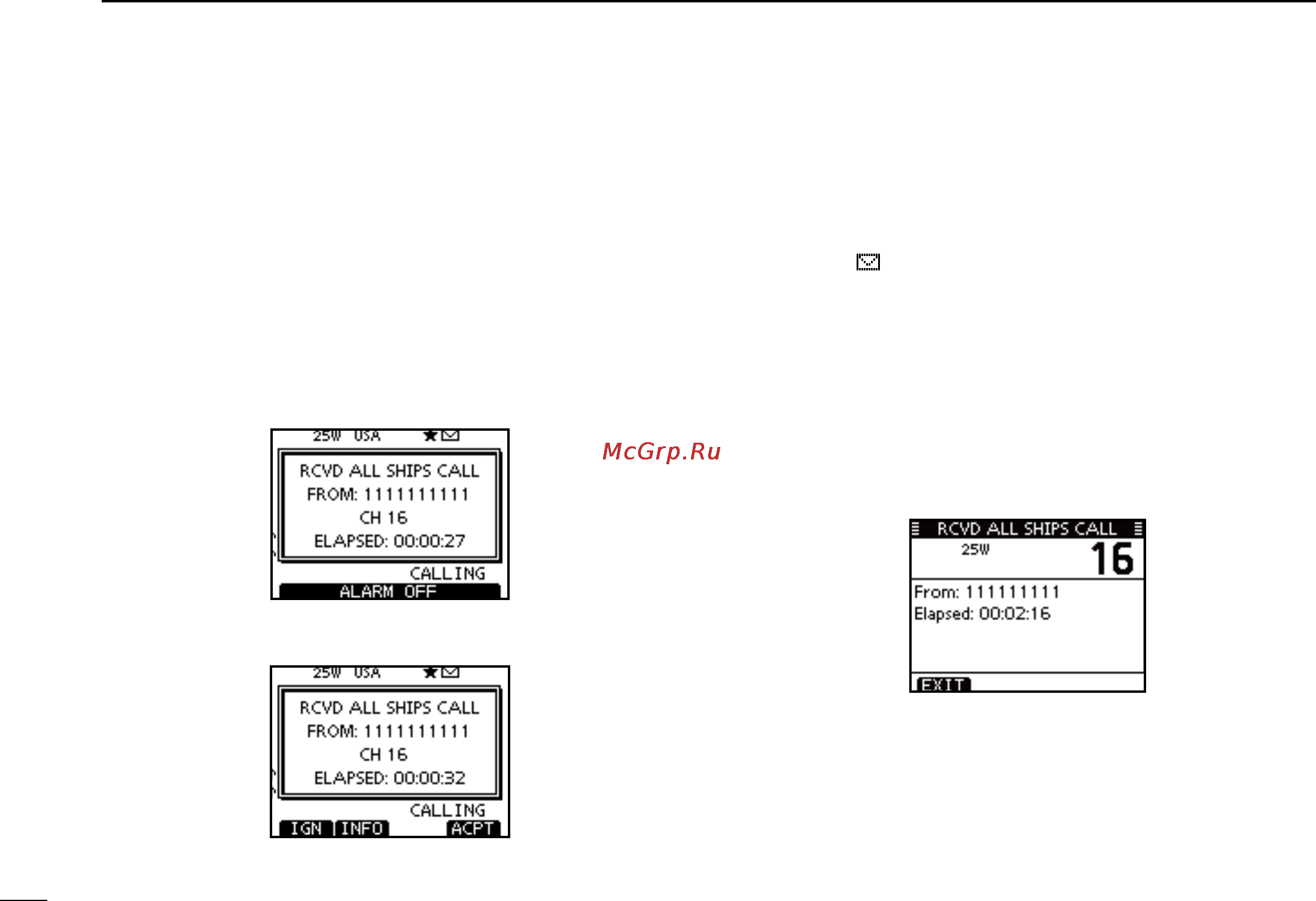

When an All Ships Call is received:
➥ The alarm sounds for 2 minutes.
➥ “RCVD ALL SHIPS CALL” appears. The LCD backlight
may blink for 2 minutes, depending on the received Cat-
egory.
q Push [ALARM OFF] to stop the alarm and the blinking
backlight.
•Evenifyoudonotpush[ALARMOFF],thealarmstopsafter2
minutes, and then the screen in step w is displayed.
Push a softkey to select your desired action. w
[IGN]
➥Push to ignore the Call and return to the normal operat-
ing mode.
•ThetransceiverexitstheDSCmode.
•The“ ” icon continues to blink and the Call is stored in the
Received Call Log.
[INFO]
➥Push to display the Received call information. (p. 65)
[ACPT]
➥ Push to monitor the channel specified by the calling sta-
tion (Example: 16) for an announcement from the call-
ing station.
