46
7
DSC OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
New2001

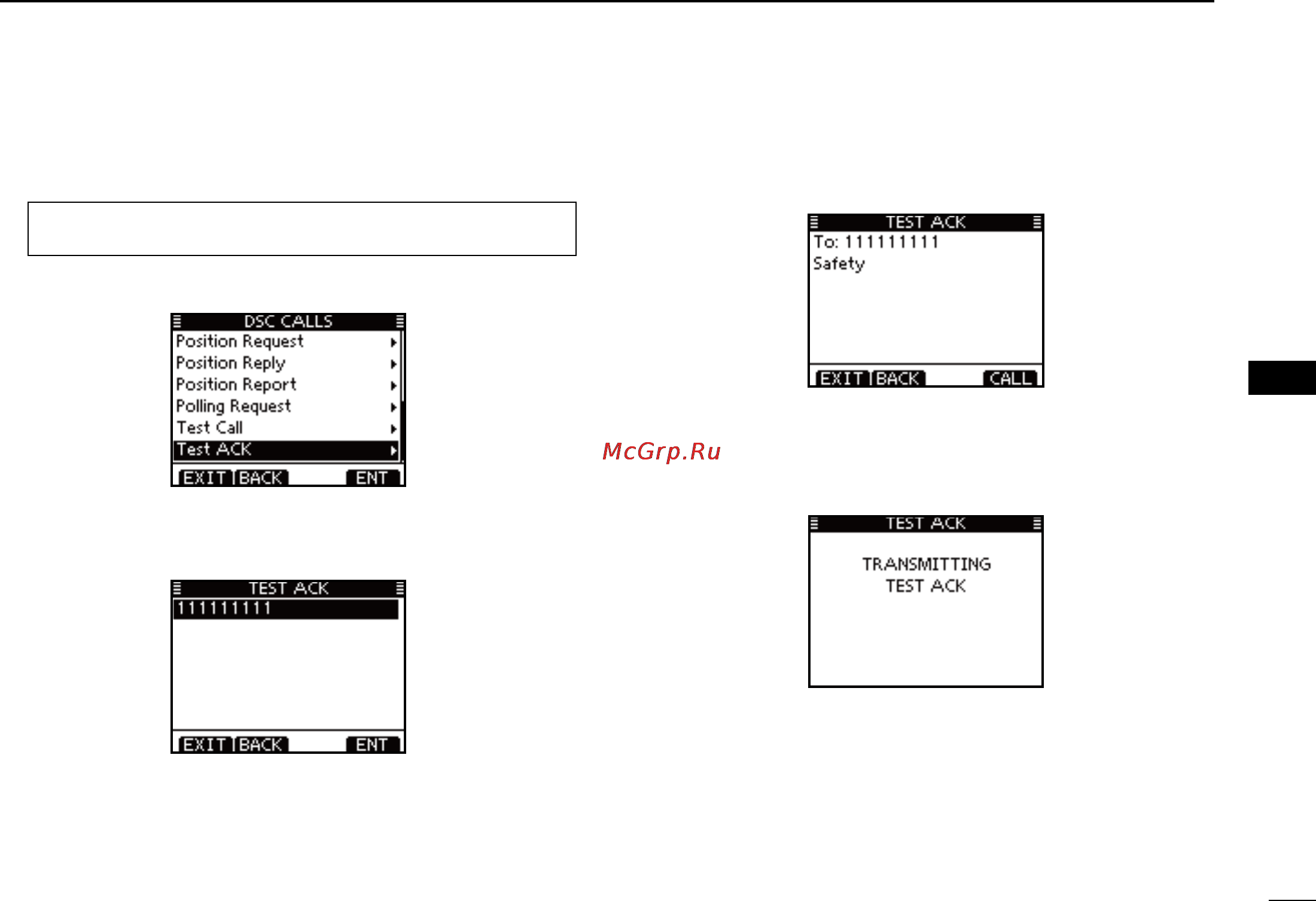

Manual ACK:
Enter “TEST ACK” in the DSC CALLS menu. q
MENU ➪ DSC ➪ Test ACK
(Push [MENU]) (Select icon)
(Rotate dial, then push [ENT].)
•IfnoTestcallhasbeenreceived,the“TESTACK”itemwillnot
be displayed.
w Select a desired Test call to reply to, using dial or [Y]/[Z],
then push [ENT].
e The Test ACK confirmation screen is displayed.
Push [CALL] to transmit the acknowledgement call.
r While transmitting the acknowledgement call, the screen
shown below is displayed, and then returns to the normal
operating mode.
