MENU SCREEN OPERATION
New2001
D Noise Cancel
Set the Noise Cancel function for both receive and transmit.
RX: The function reduces noise component in your receive
signals for your smooth reception.
TX: It is effective to turn ON the TX noise cancel function
when you operate under a noisy surround area.
q

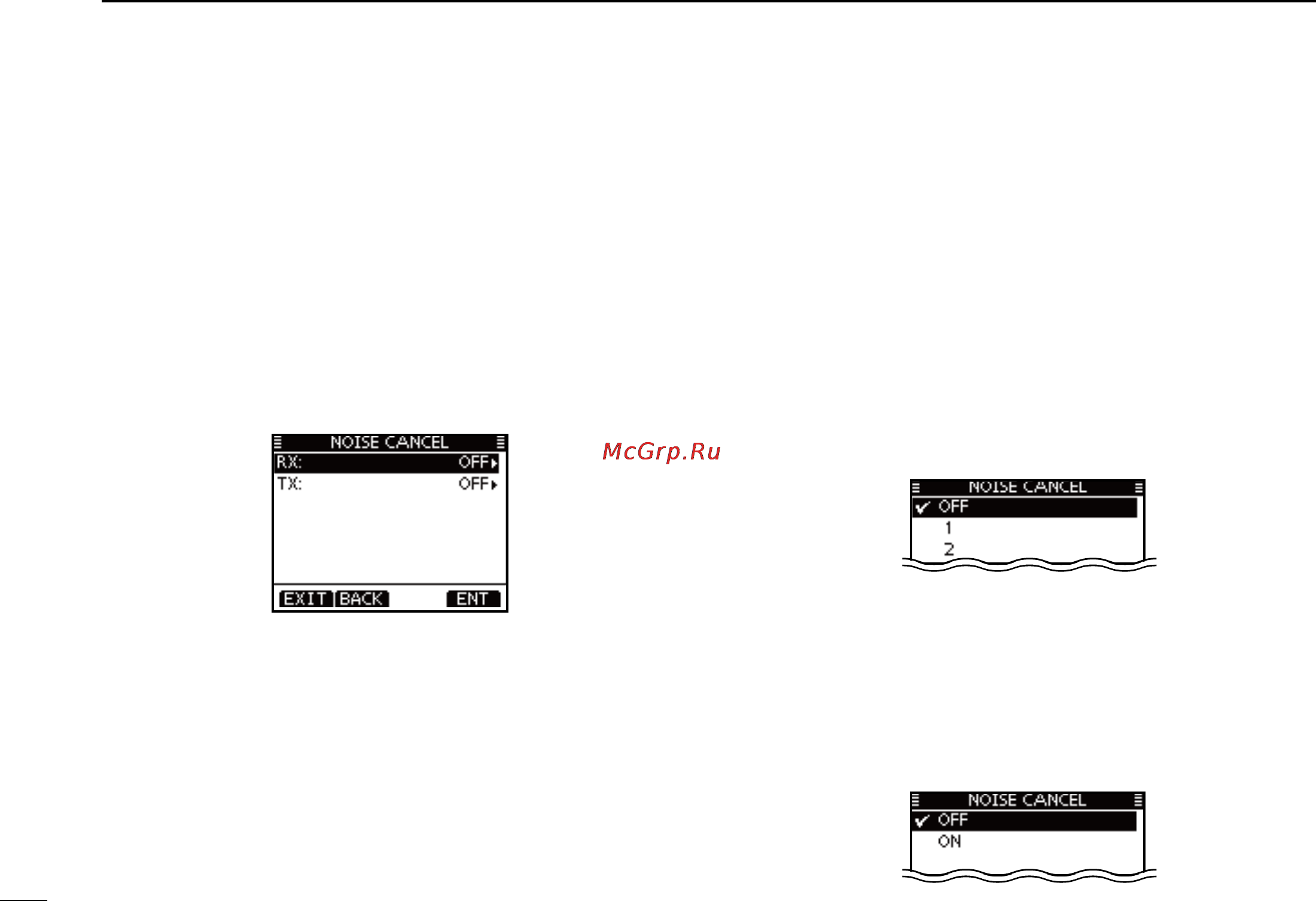

When the “NOISE CANCEL” screen is displayed, rotate dial
or push [∫]/[√] to select “RX” or “TX,” and then push [ENT].
Rotate dial or push [ w ∫]/[√] to select the option, and then
push [ENT] to set it.
•“✔” is displayed next to the selected option.
Push [EXIT] to exit the Menu screen. e
•Push[CLEAR]or[BACK]toreturntothepreviousscreen.
• RX
Turn the receive Noise Cancel function ON or OFF.
(Default: OFF)
OFF: Turns OFF the function.
1: The Noise Cancel function reduces noise components
in the received signal to approximately one half.
2: The Noise Cancel function reduces noise components
in the received signal to approximately one third.
3: The Noise Cancel function reduces noise components
in the received signal to approximately one tenth.
• TX
Turn the transmit Noise Cancel function ON or OFF.
(Default: OFF)
OFF: Turns OFF the function.
ON: The Noise Cancel function reduces noise components
in the transmitted signal to one third.
