Icom IC-M506 [38/124] Dsc operation

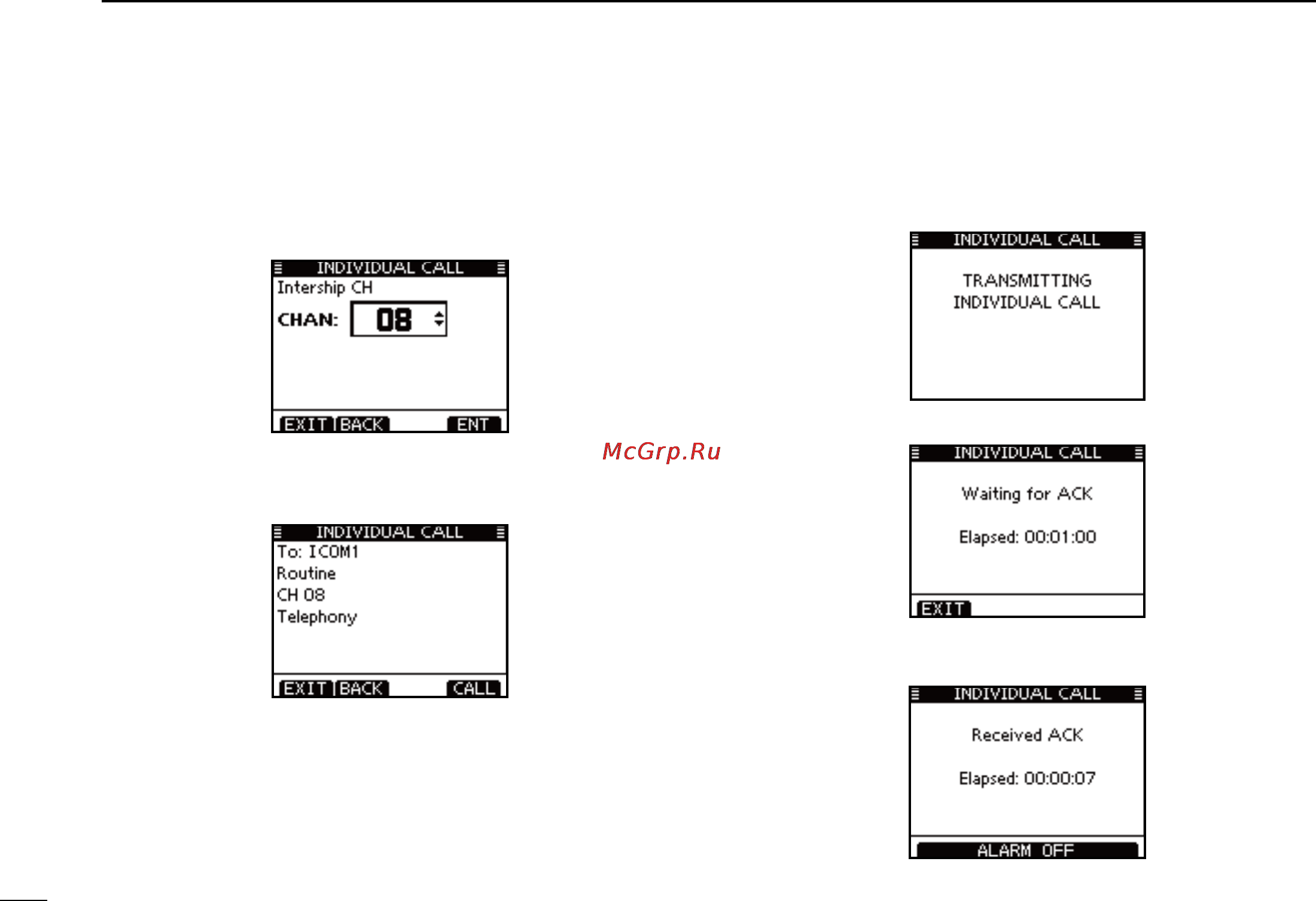

![Icom IC-M506 [38/124] Dsc operation](/views2/1074276/page38/bg26.png)
29
7
DSC OPERATION
New2001
D Transmitting DSC calls (continued)
e Select a desired intership channel using dial or [Y](CH)/
[Z](CH), then push [ENT].
•Intershipchannelsarealreadypresetintothetransceiverinthe
recommended order.
r A confirmation screen is displayed.
•Conrmthecallcontents.
t Push [CALL] to transmit the Individual call.
•IfChannel70isbusy,thetransceiverstandsbyuntilthechannel
becomes clear.
y Standby on Channel 70 until an acknowledgement is re-
ceived.
u When the acknowledgement ‘Able to comply’ is received,
alarm sounds and the screen below is displayed.
