Channel group selection D
There are preprogrammed USA channels, International chan-
nels and Canadian channels. These channel groups may be
specified for the operating area.
q Push [MENU].
w Rotate dial or push
[Ω]/[≈] to select the “RADIO SET”
icon and then push the softkey below the icon.
•RADIOSETTINGSmenuisdisplayed.

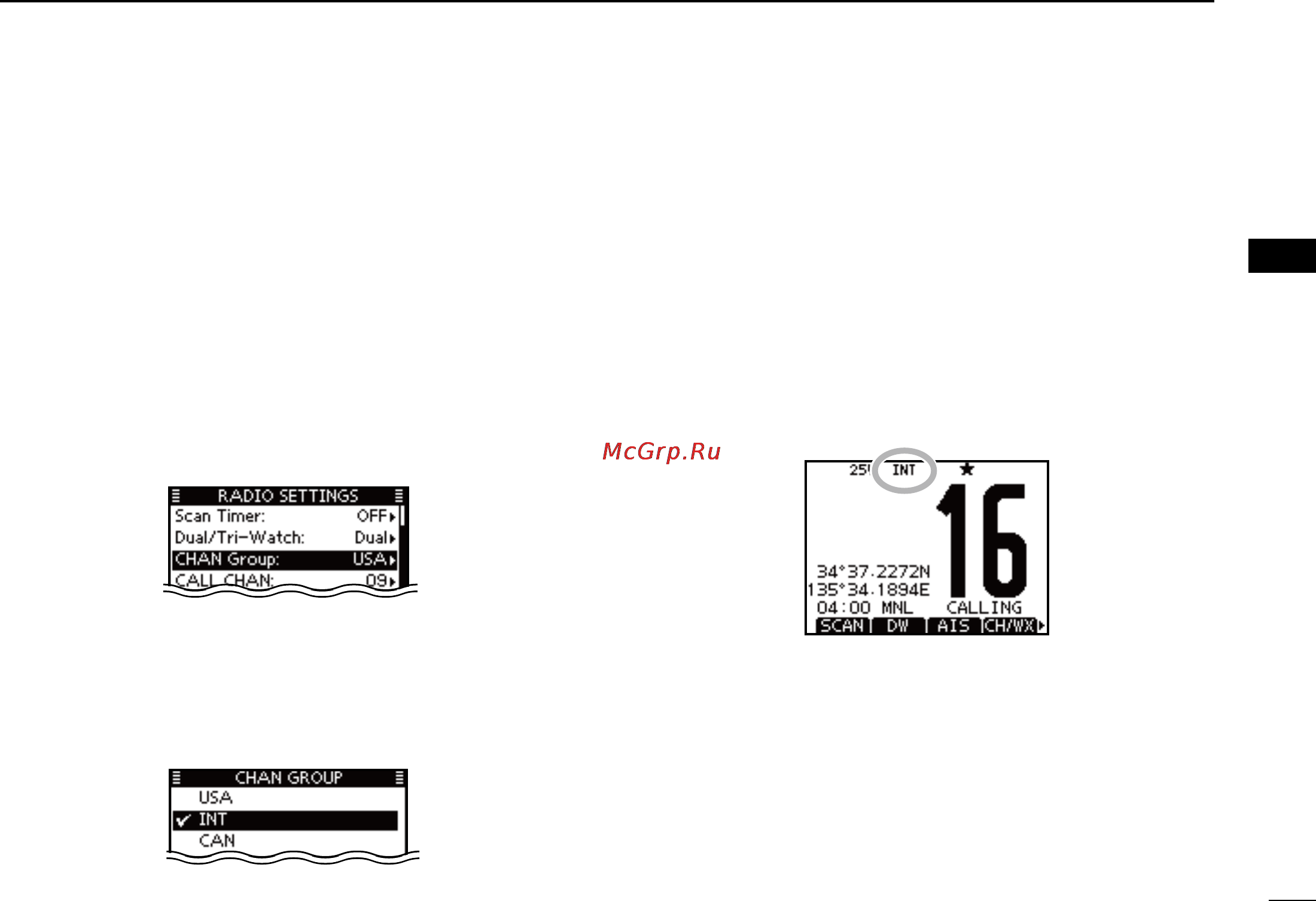

e Rotate dial or push [∫]/[√] to select “CHAN Group,” and
then push [ENT].
r Rotate dial or push [∫]/[√] to select the desired channel
group, and then push [ENT].
•USA (USA), International (INT) and Canadian (CAN) channel
groups can be selected.
t Push [EXIT] to exit the Menu screen.
y Push [∫](CH) or [√](CH) to select a channel.
•Pushing[Y]/[Z] on the microphone selects only Favorite chan-
nels.
•YoucanturnOFFtheFAVonMICsetting(p.100).Afterthat,you
can select all channels by the microphone.
•The“DUP”iconappearswhenaduplexchannelisselected.
•“A”appearswhenasimplexchannelisselected.
