Icom IC-M506 [101/124] Menu screen items
![Icom IC-M506 [101/124] Menu screen items](/views2/1074276/page101/bg65.png)
New2001
92
11
MENU SCREEN OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Menu screen items ■
The Menu screen contains the following items.
DSC D
Item Ref. Item Ref.
•IndividualCall p. 28
•PositionRequest
p. 37
•IndividualACK*
1
p. 31
•
Position Reply*
1
p. 47
•GroupCall p. 33
•
Position Report p. 39
•AllShipsCall p. 35
•
Polling Request p. 41
•DistressCall p. 23 •PollingReply*
1
p. 51
•ReceivedCallLog p. 65 •TestCall p. 43
•
Transmitted Call Log
p. 67 •TestACK*
1
p. 45
D CONFIG (Configuration)
Item Ref. Item Ref.
•Backlight p. 93 •HornFrequency p. 95
•DisplayContrast p. 93 •InactivityTimer p. 95
•KeyBeep p. 93 •UnitID p. 96
•KeyAssignment p. 94 •COMMANDMICSP*
3
p. 96
•KeyMovement p. 94
•UTCOffset p. 95
*
1
Appears only after receiving a corresponding call.
*
2
Appears only when no GPS information is received.
*
3
Appears only when the optional HM-195 is connected.
*
4
Appears only when a GPS receiver compatible with NMEA 0183
(ver. 2.0 or later) or NMEA 2000 is connected.
*
5
Appears only when the voice scrambler unit is installed.

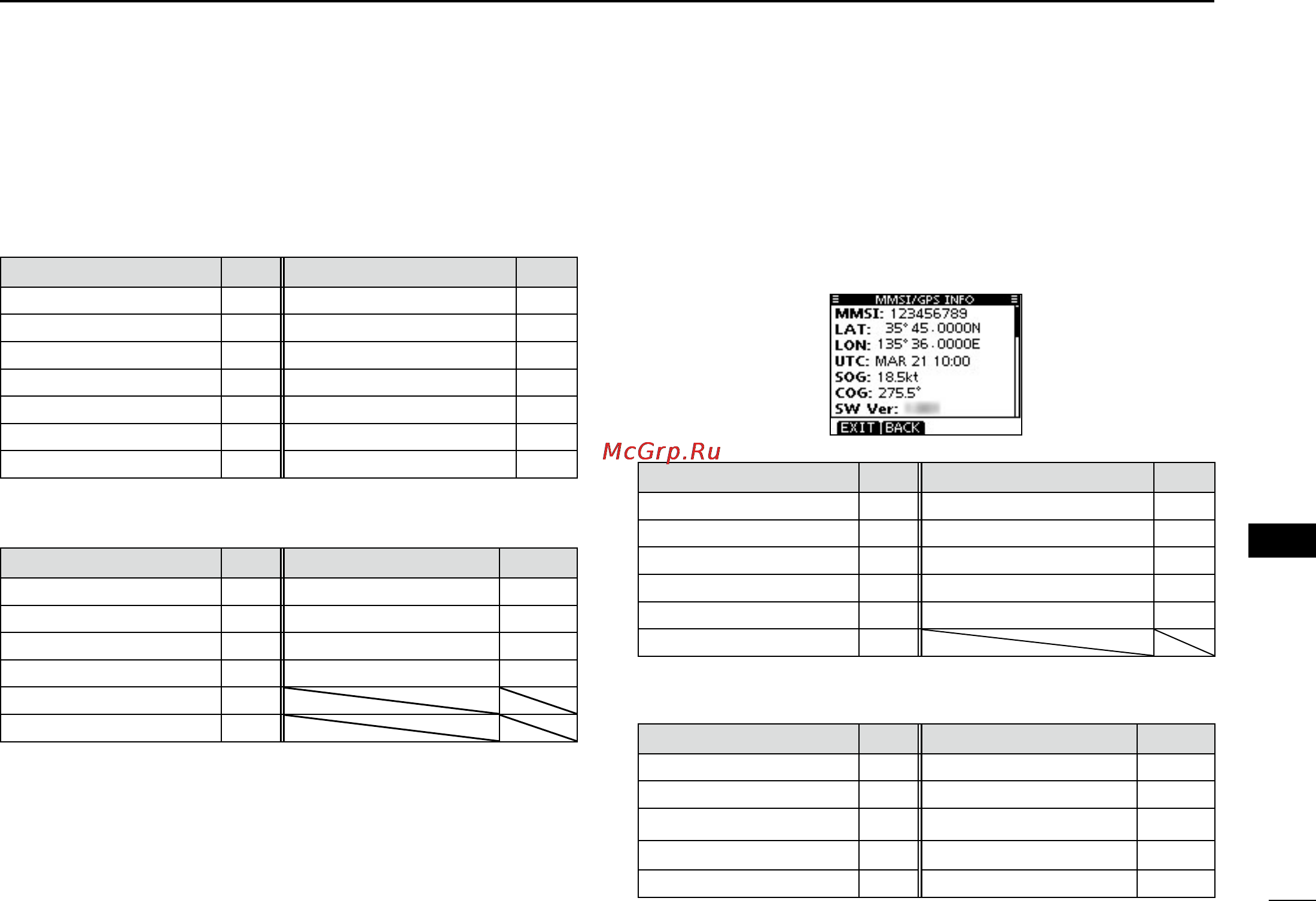

D MMSI/GPS
The transceiver shows the programmed MMSI code, GPS in-
formation*
4
, and installed option unit.
If the code is not programmed, “NO DSC MMSI” is displayed.
DSC SET D
Item Ref. Item Ref.
•PositionInput*
2
p. 22 •CH16Switch p. 69
•IndividualID p. 19 •DSCDataOutput p. 70
•GroupID p. 20 •AlarmStatus p. 70
•IndividualACK p. 68 •CH70SQLLevel p. 71
•PositionACK p. 68 •DSCLoopTest p. 71
•TestACK p. 68
D RADIO SET
Item Ref. Item Ref.
•ScanType p. 97 •WXAlert p. 98
•ScanTimer p. 97 •VoiceScrambler*
5
p. 98
•Dual/Tri-Watch p. 97 •NoiseCancel p. 99
•CHANGroup p. 97 •VoiceRecord p. 100
•CALLCHAN p. 98 •FAVonMIC p. 100
