20
7
DSC OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

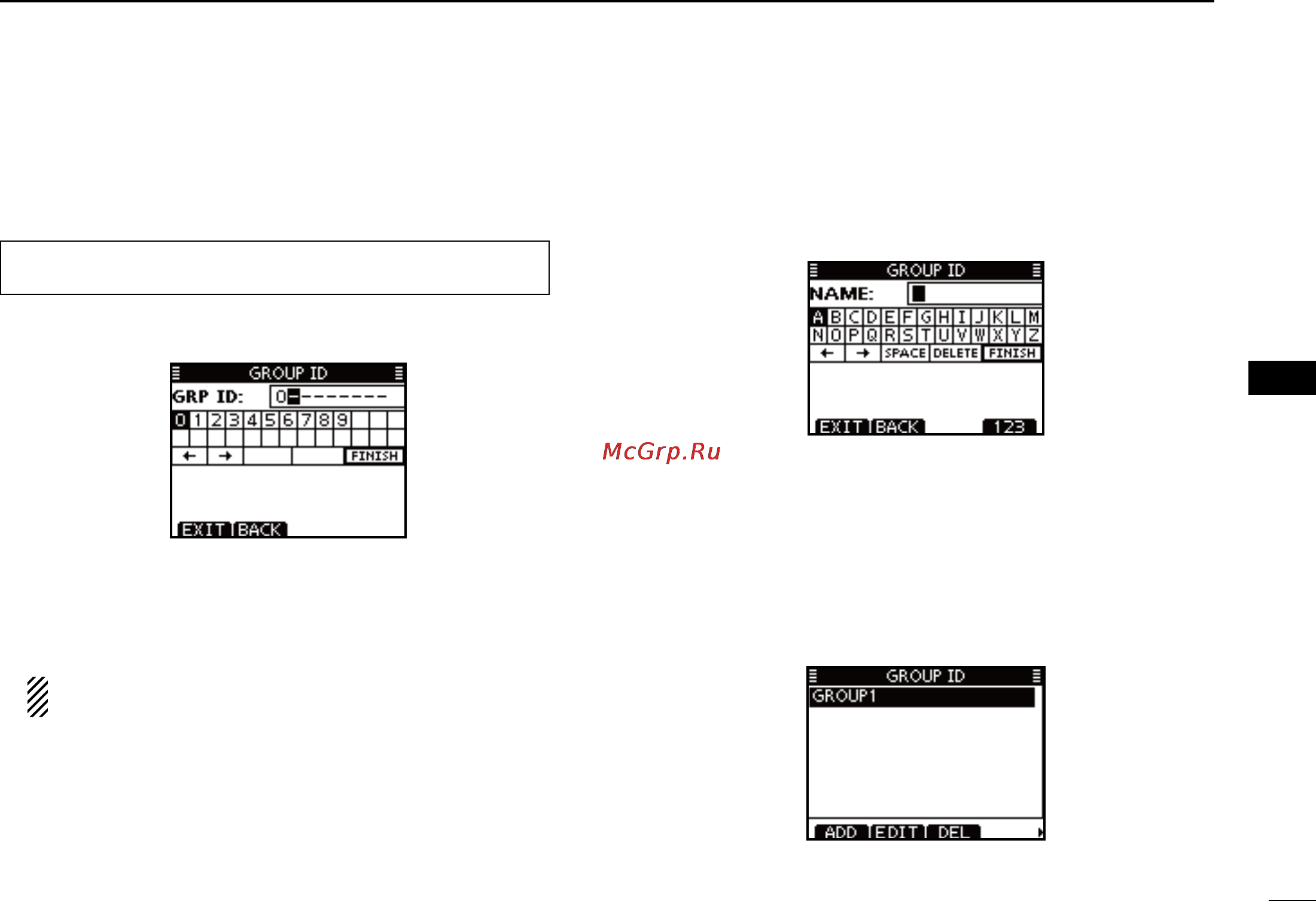

D Programming Group ID
Enter “GROUP ID” in the DSC SETTINGS menu. q
Push [ADD]. w
•The“GROUPID”programscreenisdisplayed.
e Enter a desired group ID in the following way:
•Selectadesirednumberusing[Y]/[Z]/[Ω]/[≈].
•Push[ENT]ordialtosetit.
•Tomovethecursor,rotatedialorselecteitherarrow,“←” or “→,”
then push [ENT] or dial.
The first digit is fixed as ‘0’ for a Group ID.
The first two digits are ‘0’ for any Coast station ID.
r Repeat step e to input the specific 9 digits group code.
t After entering the 9 digit code, push [ENT] or dial to set it.
•TheGroupIDnameprogrammingscreenisdisplayed.
Enter a desired 10 digit ID name in the following way: y
•Selectadesiredcharacterusing[Y]/[Z]/[Ω]/[≈].
•Push[ENT]ordialtosetit.
•Tomovethecursor,rotatedialor select either arrow, “←” or “→,”
then push [ENT] or dial.
•Push[123]then[!$?]then[ABC]toselectacharactergroup.
After entering the ID name, select “FINISH” using dial or u
Y]/[Z]/[Ω]/[≈], then push [ENT] or dial to program it.
•The“GROUPID”listscreenisdisplayed.
i Push [MENU] to exit the MENU screen.
MENU ➪ DSC SET ➪
Group ID
(Push [MENU]) (Select icon)
(Rotate dial, then push [ENT].)
