Icom IC-M506 [42/124] Dsc operation
![Icom IC-M506 [42/124] Dsc operation](/views2/1074276/page42/bg2a.png)
33
7
DSC OPERATION
New2001

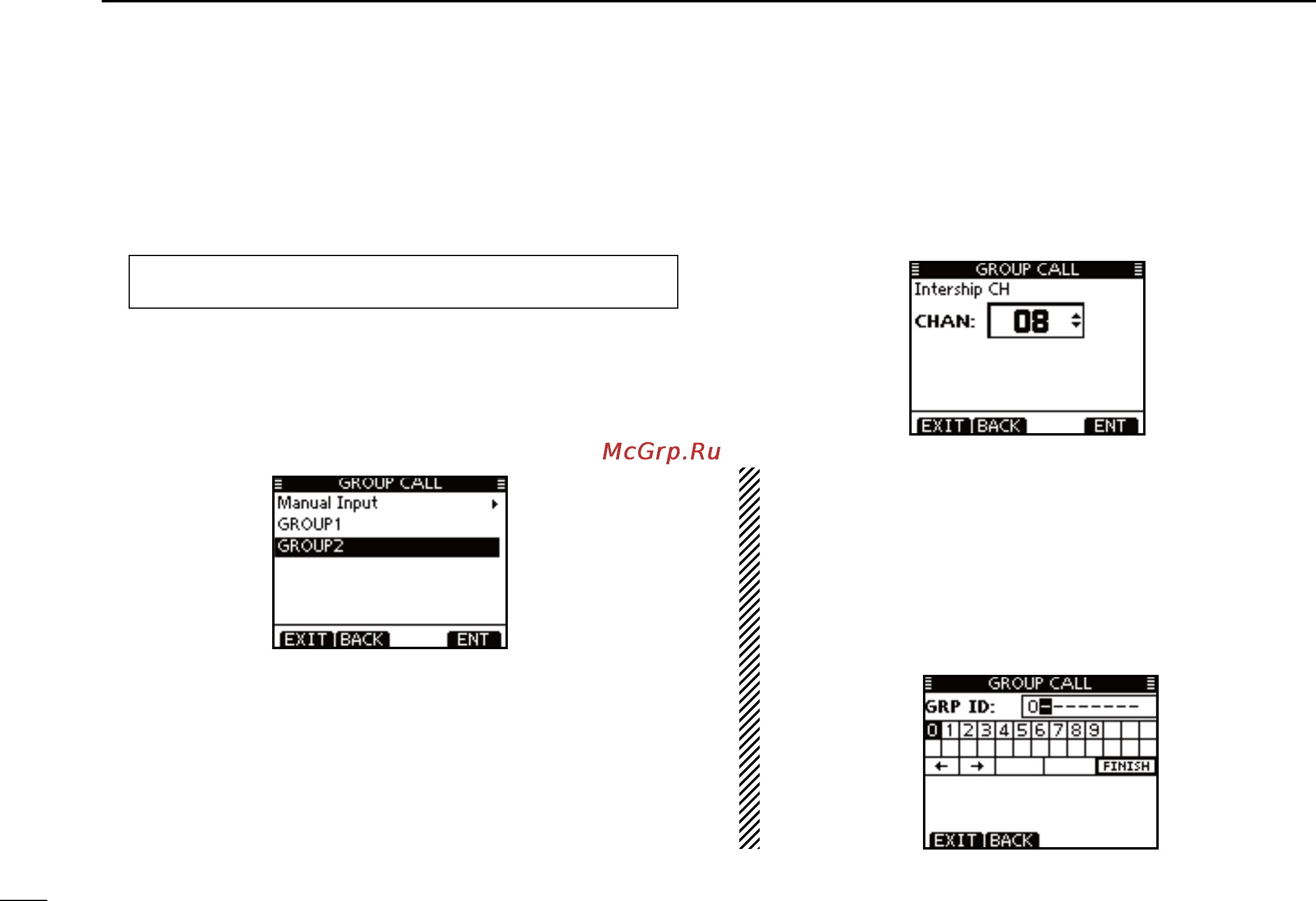

Transmitting a Group call D
The Group call function allows you to transmit a DSC signal
to only a specific group.
Enter “GROUP CALL” in the DSC CALLS menu. q
MENU ➪ DSC ➪ Group Call
(Push [MENU]) (Select icon)
(Rotate dial, then push [ENT].)
Select the desired pre-programmed group address or w
“Manual Input,” using dial or [Y]/[Z], then push [ENT].
•TheIDcodefortheGroupcallcanbesetrst.(p.20)
•When“ManualInput”isselected,setthe8digitIDcodeforthe
group you wish to call.
e Select a desired intership channel using dial or [Y](CH)/
[Z](CH), then push [ENT].
•Intershipchannelsarealreadypresetintothetransceiverinthe
recommended order.
About Manual Inputting:
Enter a desired group ID in the following way:
•Selectadesirednumberusing[Y]/[Z]/[Ω]/[≈].
•Push[ENT]ordialtosetit.
•Tomovethecursor,rotatedialor select either arrow, “←” or “→,”
then push [ENT] or dial.
•Therstdigitisspeciedas‘0’foraGroupID.
•Thersttwodigitsare‘0’foranyCoaststationID.
