30
7
CHAPTER CONTINUED
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Push [ALARM OFF] to stop the alarm and then select the
intership channel specified in step e.
•Adifferentintershipchannelwillbeselectedifthestationyou
called cannot use the channel.
•Replyusingthemicrophone.Andgotostepi.

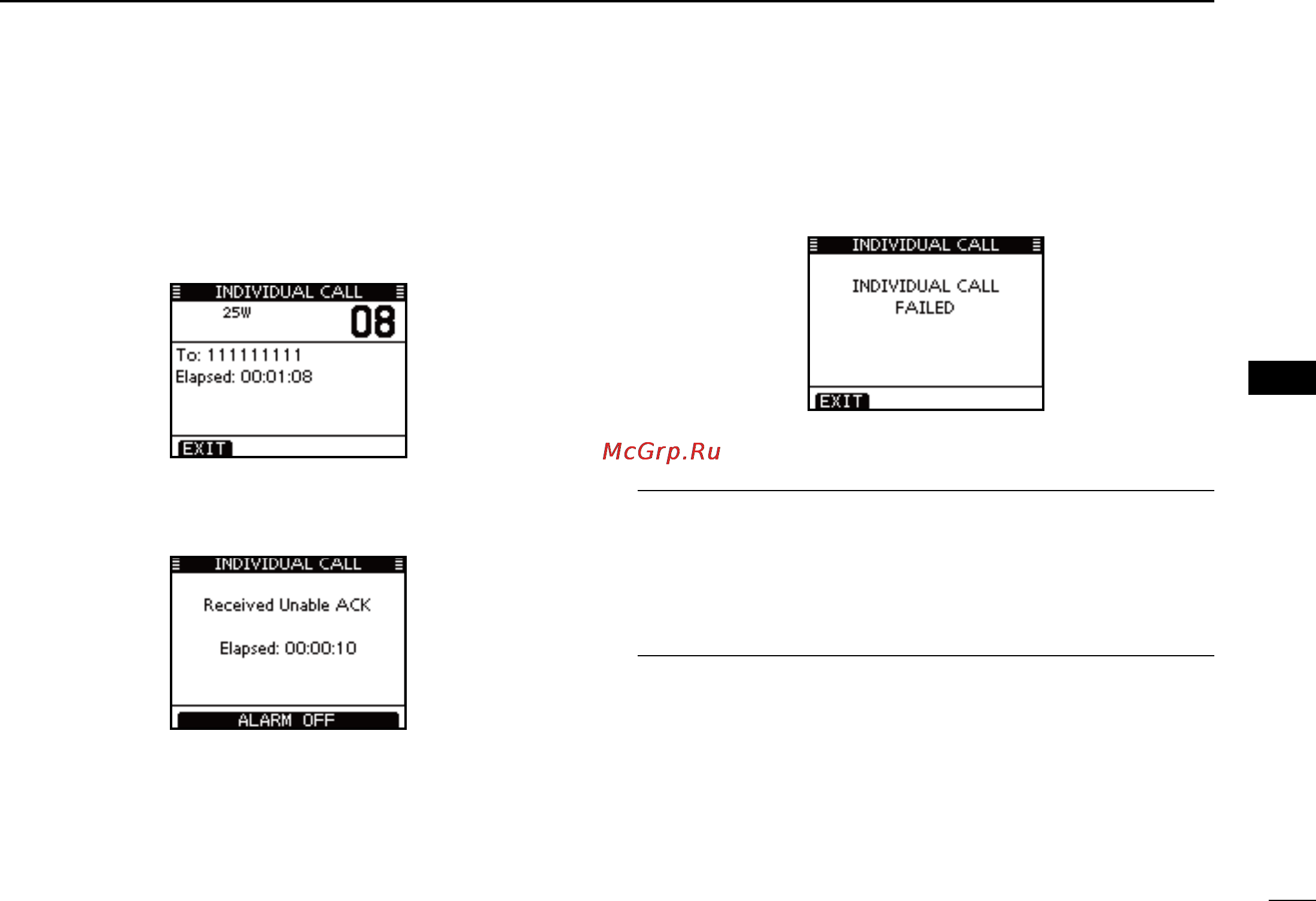

Or, when the acknowledgement ‘Unable to comply’ is re-
ceived, alarm sounds and the screen below is displayed.
Push [ALARM OFF] to stop the alarm. Then push [EXIT]
to return to the operating channel (before you entered the
MENU screen).
i After communicating, push [EXIT] to return to the normal
operating mode.
Convenient! ✓
When the optional MA-500TR
c l a s s b a i s t r a n s p o n d e r
is
connected to your transceiver, you can transmit individual
DSC calls to selected AIS targets on the transponder without
needing to enter the target’s MMSI code.
See pages
72
and
102
for more details.
