40
7
DSC OPERATION
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

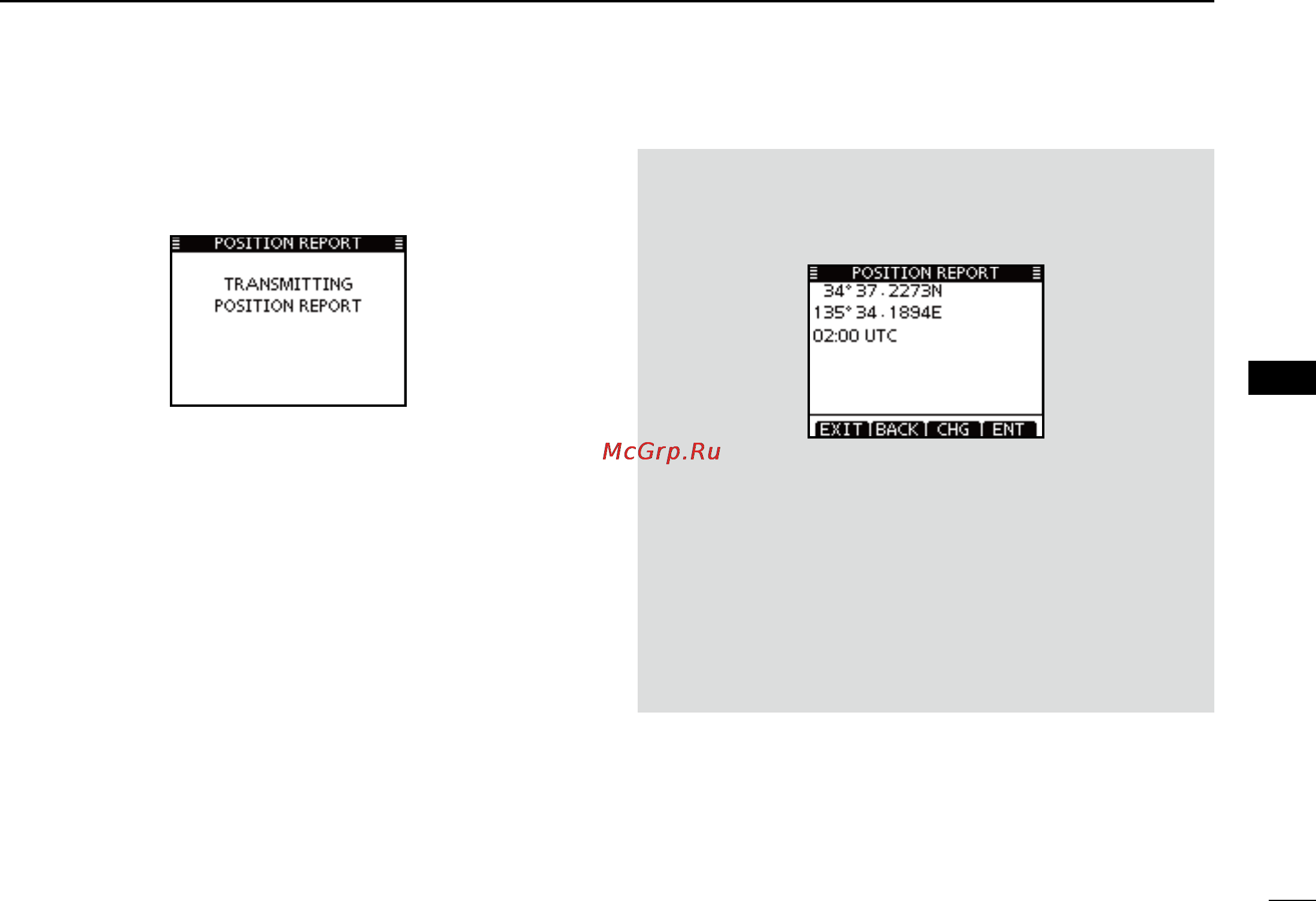

Push [CALL] to transmit the Position Report Call. r
•IfChannel70isbusy,thetransceiverstandsbyuntilthechannel
becomes clear.
After the Position Report Call has been transmitted, the t
transceiver automatically returns to the normal operating
mode.
When no GPS receiver is connected, and both position and
time have been manually programmed, the screen shown
below is displayed. Edit your latitude and longitude position
and UTC time as follows:
Push [CHG], then edit your latitude and longitude position ➥
and UTC time.
•Selectadesirednumberusing[Y]/[Z]/[Ω]/[≈].
•Push[ENT]ordialtosetit.
•Tomovethecursor, rotate dial or select either arrow,“←” or
“→,” then push [ENT] or dial.
•SelectN(Northlatitude)orS(Southlatitude)whenthecursor
is on the ‘N’ or ‘S’ position.
•SelectW(Westlongitude)orE(Eastlongitude)whenthecur-
sor is on the ‘W’ or ‘E’ position.
