Icom IC-M506 [40/124] Dsc operation
![Icom IC-M506 [40/124] Dsc operation](/views2/1074276/page40/bg28.png)
31
7
DSC OPERATION
New2001
Transmitting an Individual Acknowledgement D
When receiving an Individual call, you can transmit an ac-
knowledgement (‘Able to Comply,’ ‘Propose New Channel’ or
‘Unable to Comply’) by using the on-screen prompts (Quick
ACK.) Also, you can send an acknowledgement through the
MENU system (Man ual ACK.)
Quick ACK:

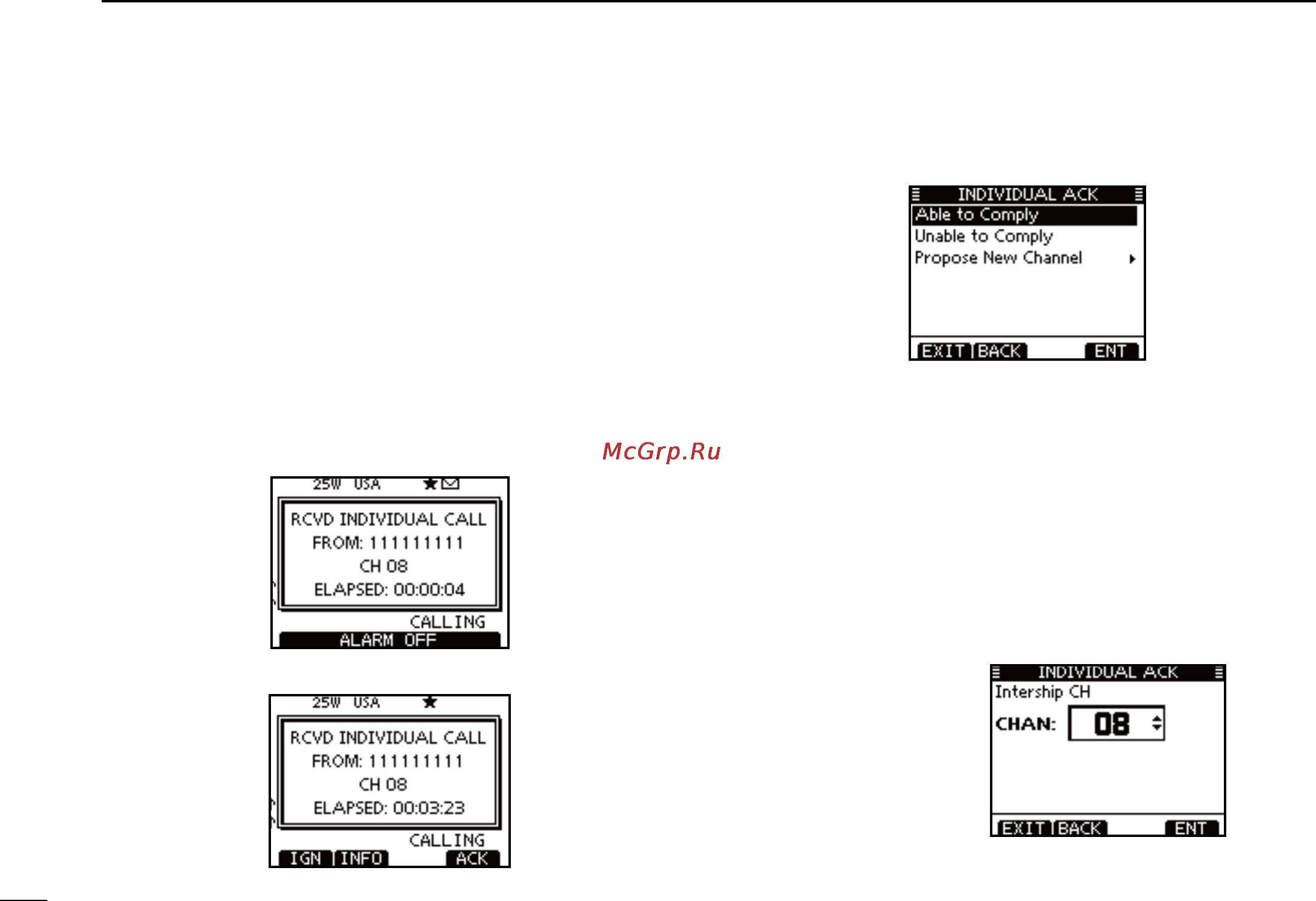

When an Individual call is received, alarm sounds and the q
screen below is displayed.
Push [ALARM OFF] to stop the alarm.
•Evenifyoudonotpush[ALARMOFF],thealarmstopsafter2
minutes, and then the screen in step w is displayed.
Push [ACK]. w
Select one of three options, then push [ENT]. e
•AbletoComply: Make an acknowledgment call without
any changes.
•UnabletoComply: Youcannotmakeacommunication.
The Acknowledgement call (‘Unable to
Comply’) can be automatically transmit-
ted, if set. See page 68 for details.
•ProposeNewChannel:You can make an acknowledgement
call, but you specify the intership chan-
nel. Select a desired intership channel,
using dial, or [Y](CH)/[Z](CH), then
push [ENT].
