101
CONNECTIONS AND MAINTENANCE
12

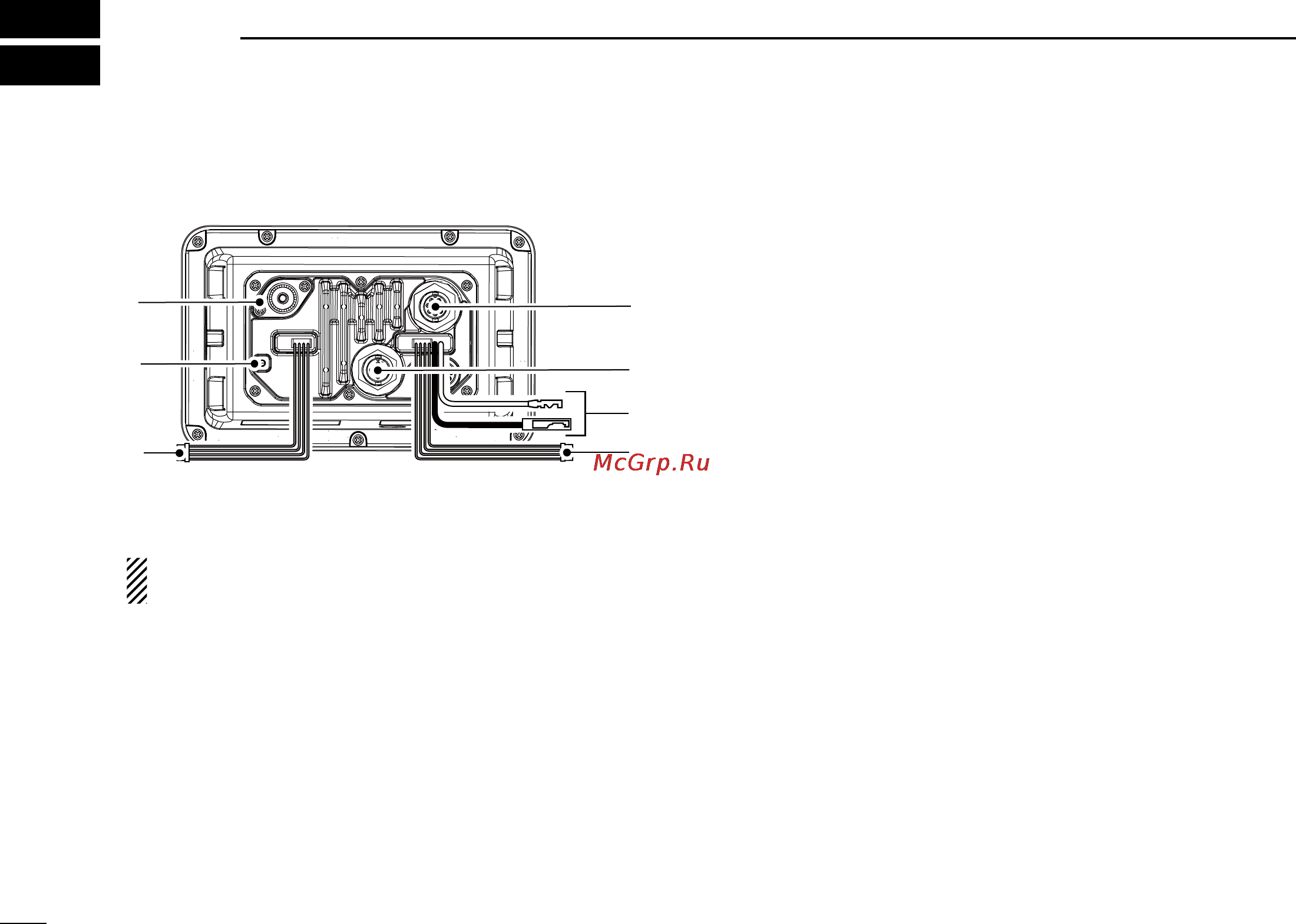

Connections ■
u
r
w
q
e
t
y
q ANTENNA CONNECTOR
Connects to a marine VHF antenna with a PL-259 connec-
tor.
CAUTION: Transmitting without an antenna may dam-
age the transceiver.
w GROUND TERMINAL
Connects to a vessel ground to prevent electrical shocks
and interference from other equipment occurring. Use a
PH M3 × 6 screw (not supplied).
e NMEA 0183 IN/OUT LEADS
Brown: Talker B (Data-L)
Connects to an NMEA In Negative line of a PC or NMEA
0183 (ver. 2.0 or later) sentence format DSC, DSE com-
patible navigation equipment, to receive position data from
other ships.
White: Talker A (Data-H)
Connects to an NMEA In Positive line of a PC or NMEA
0183 (ver. 2.0 or later) sentence format DSC, DSE com-
patible navigation equipment, to receive position data from
other ships.
Green: Listener B (Data-L)
Connects to an NMEA Out Negative line of a GPS receiver
for position data.
•ANMEA0183ver.2.0orlaterRMC,GGA,GNS,GLLandVTG
sentence format compatible GPS receiver is required. Ask your
dealer about suitable GPS receivers.
Yellow: Listener A (Data-H)
Connects to an NMEA Out Positive line of a GPS receiver
for position data.
•ANMEA0183ver.2.0orlaterRMC,GGA,GNS,GLLandVTG
sentence format compatible GPS receiver is required. Ask your
dealer about suitable GPS receivers.
r AF OUT LEADS
Blue: External Speaker (+)
Black: External Speaker (–)
Connects to an external speaker.
Orange: Hailer (+)
Gray: Hailer (–)
Connects to a Hailer.
•Haileroutputpower:Morethan25Wwitha4˘ load
