12
4
BASIC OPERATION
New2001
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
u Hold down [PTT] to transmit, then speak at your normal
voice level.
•The“ ” icon appears.
•Channel70cannotbeusedfortransmissionotherthanDSC.
i Release [PTT] to receive.
Information ✓
The Noise Cancel function reduces random noise components
in the transmit and/or receive signal. See page
99
for details.
Simplex channels, 3, 21, 23, 61, 64, 81, 82 and 83 CANNOT
be lawfully used by the general public in U.S.A. waters.
IMPORTANT: To maximize the readability of your transmit-
ted signal, pause a few seconds after pushing [PTT], hold
the microphone 5 to 10 cm (2 to 4 inches) from your mouth
and speak at a normal voice level.
NOTE for the TOT (Time-out Timer) function ✓
The TOT function inhibits continuous transmission beyond a
preset time period after the transmission starts.
10 seconds before transmission is cutoff, a beep sounds to
indicate the transmission will be shut down and “TOT” appears
in the channel name field. Transmission is not possible for 10
seconds after this shut down.

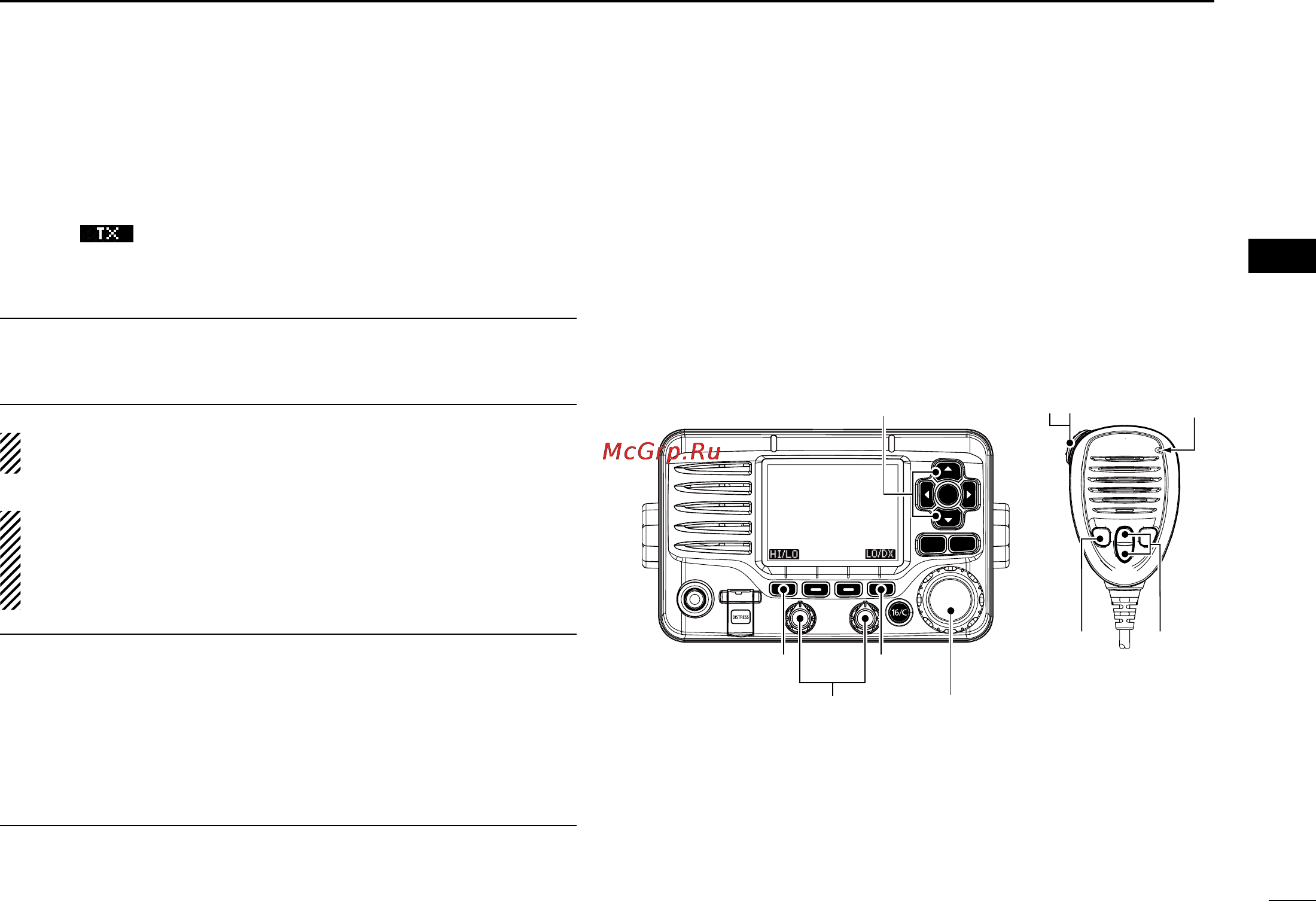

Microphone
iu
ry
CLEARMENU
ENT
CH
CH
t
y
q
r
w
