57
7
DSC OPERATION

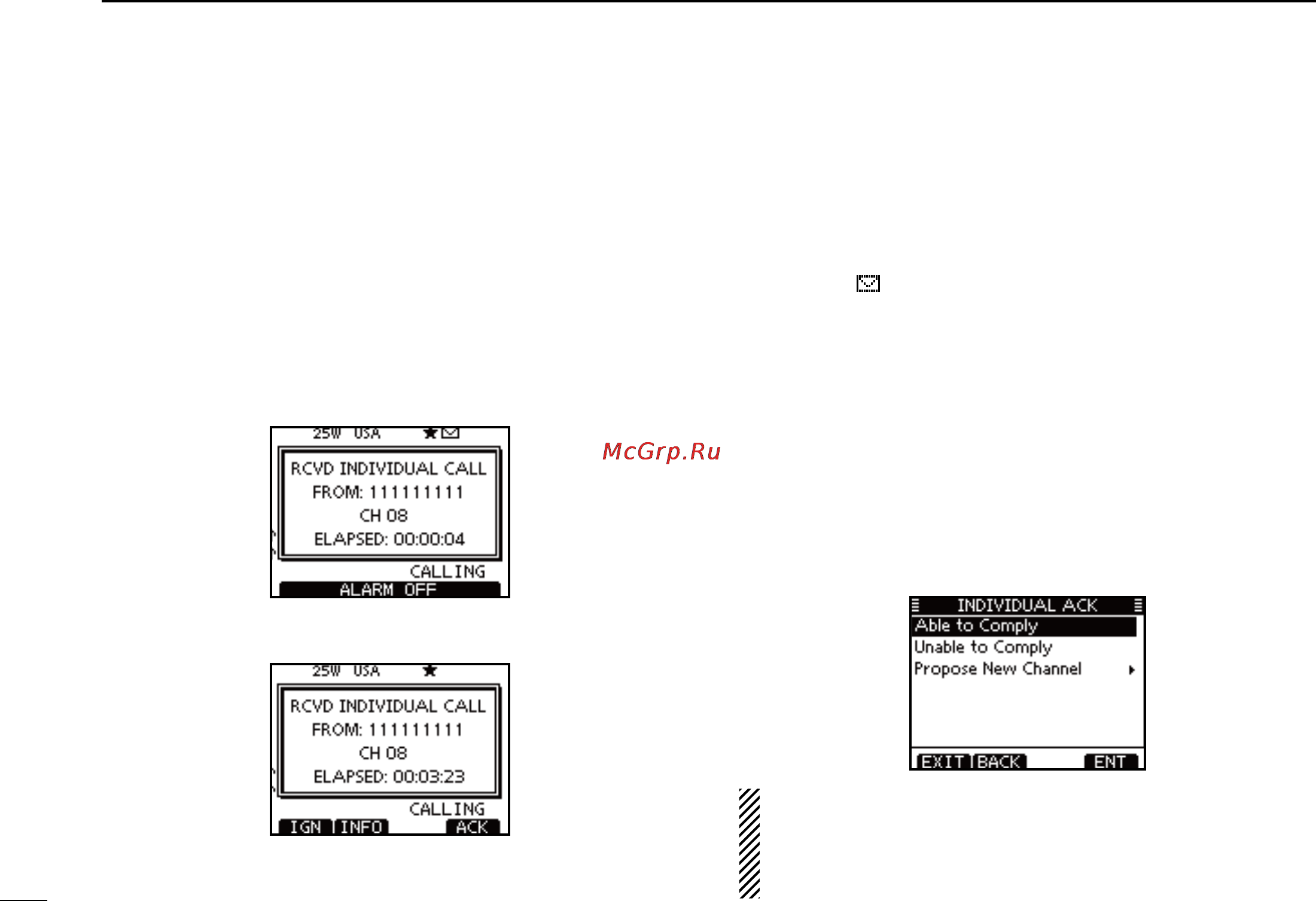

Receiving an Individual Call D
When an Individual Call is received:
➥ The alarm sounds for 2 minutes.
➥ “RCVD INDIVIDUAL CALL” appears. The LCD backlight
may blink for 2 minutes, depending on the received Cat-
egory.
q Push [ALARM OFF] to stop the alarm and the blinking
backlight.
•Evenifyoudonotpush[ALARMOFF],thealarmstopsafter2
minutes, and then the screen in step w is displayed.
w Push a softkey to select your desired action.
[IGN]
➥
Push to ignore the Call and return to the normal operating
mode.
•ThetransceiverexitstheDSCmode.
•TheCallisstoredintheReceivedCallLog.
•The“ ” icon continues to blink and the Call is stored in the
Received Call Log.
[INFO]
➥Push to display the Received call information. (p. 65)
[ACK]
➥ Push to display the “INDIVIDUAL ACK” screen to re-
ply to the Call, and select the channel specified by the
calling station for voice communication, depending on
your situation. See page 31 for details of the Individual
Acknowledgement procedure.
When “INDIVIDUAL ACK” is set to “Auto (Unable),” the
transceiver automatically replies to the Call. In that case,
both the TX and RX calls are stored in the Transmitted and
Received Call Logs.
