56
7
DSC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

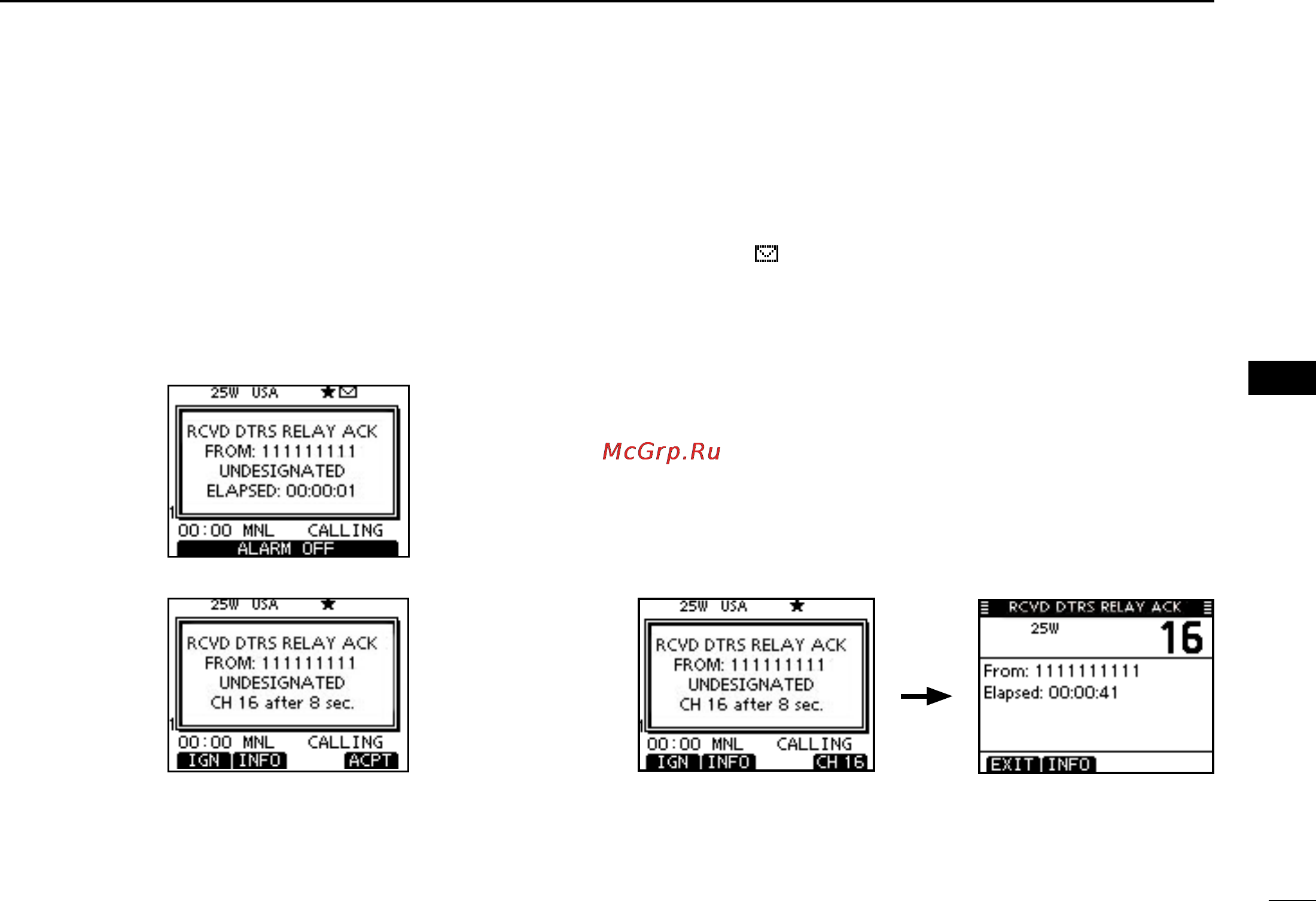

D Receiving a Distress Relay Acknowledgement
When a Distress Relay Acknowledgement is received:
➥ The emergency alarm sounds for 2 minutes.
➥ “ RCVD DTRS RELAY ACK” appears and the LCD back-
light blinks.
q Push [ALARM OFF] to stop the alarm and the blinking
backlight.
•Evenifyoudonotpush[ALARMOFF],thealarmstopsafter2
minutes, and then the screen in step w is displayed.
w Push a softkey to select your desired action.
[IGN]
➥Push to return to the normal operating mode.
•ThetransceiverexitstheDSCmode.
•Bypushing[PTT],thetransceiveralsoexitstheDSCmode.
•The“ ” icon continues to blink and the Call is stored in the
Received Call Log.
[INFO]
➥Push to display the Received call information. (p. 65)
[ACPT]
Push to accept the call. ➥
And then, push [CH 16] to switch the operating channel
to Channel 16, and then monitor it, as a coast station
may require assistance.
•Ifyouhaven’tpushed[CH16]within10seconds,theoperat-
ing channel automatically switches to Channel 16. (p. 69)
Push
