87
9
AIS RECEIVER (Depending on versions)
New2001

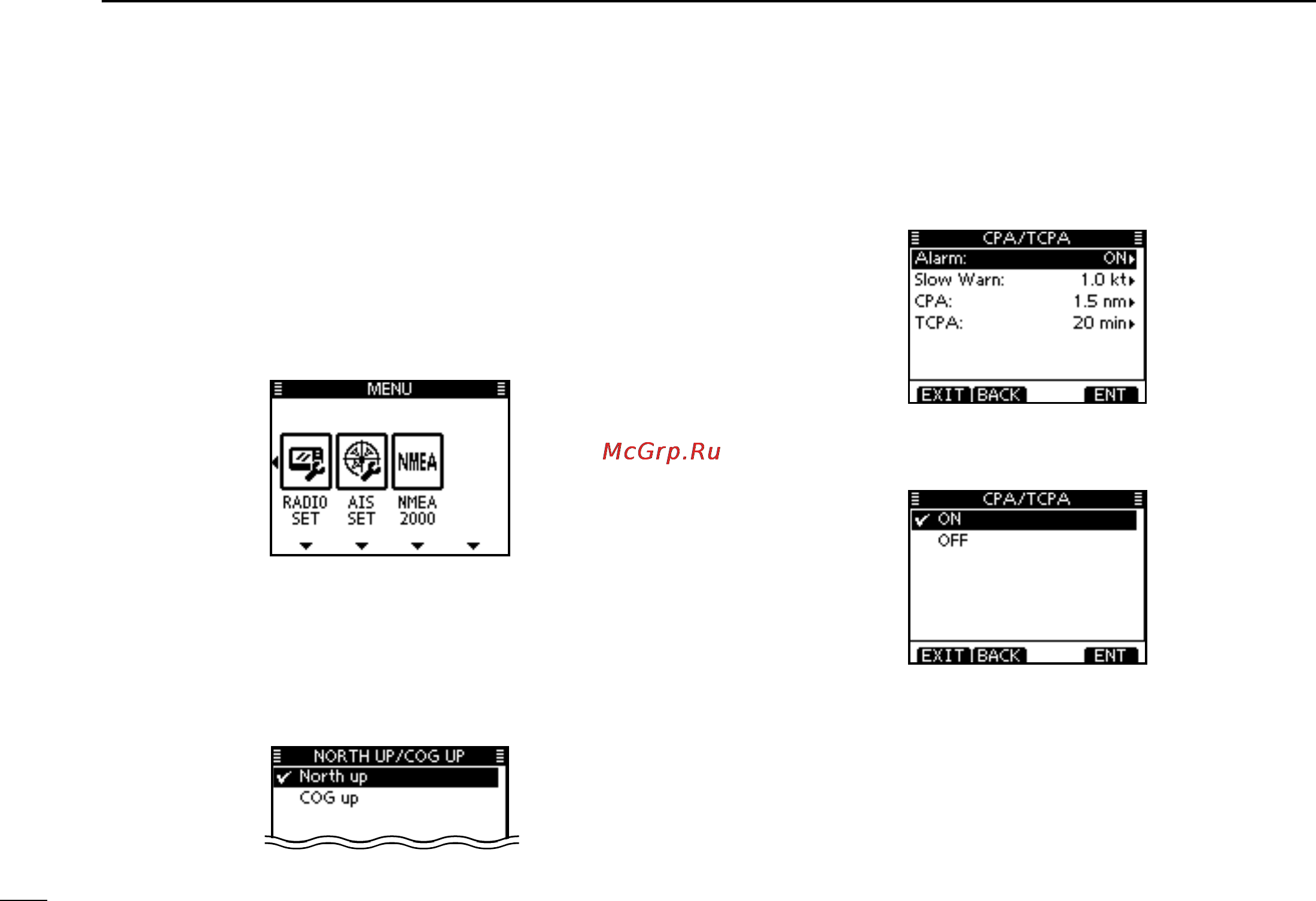

AIS Settings ■
AIS settings can be customized from “AIS SET” in the menu
screen.
q Push [MENU].
w
Rotate dial or push [Ω]/[≈] to select the “AIS SET” icon and
then push the softkey below the icon.
•AISsettingsmenuisdisplayed.
D North up/COG UP:
Select the display type for AIS plotter.
•When“Northup”isdisplayed,thetopoftheplotterdisplayrepre-
sents North.
•When“COGup” is displayed,thetopoftheplotterdisplayrepre-
sents the direction your course is heading.
D CPA/TCPA
In this menu, you can edit alarm settings for AIS receiver.
• Alarm
You can turn the collision alarm function ON or OFF.
