DSC OPERATION
D Other messages (Continued)
e Push [Y] or [Z] to select the desired item, then push
[ENT].
•Themessageintheunopenedlehasnotbeenread.
r Rotate dial to scroll the DSC message contents.
•Thestoredmessagehasvariousinformation,dependingonthe
DSC call type.
To delete the displayed DSC message, push [DEL]. t
•Theconrmationscreenisdisplayed,thenpush[OK]todelete.
Push [EXIT] to return to the normal operating mode. y

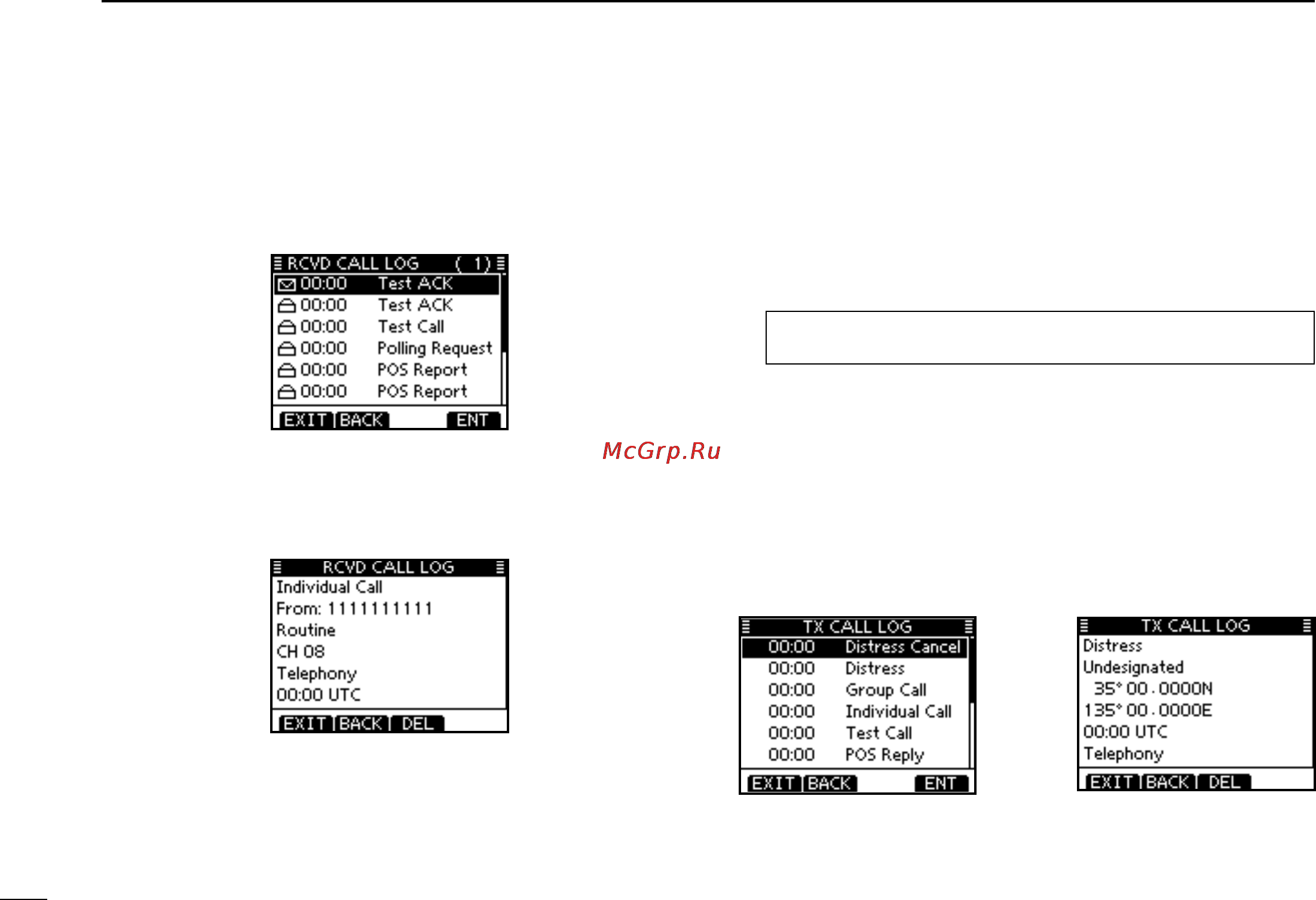

Transmitted Call log ■
The transceiver automatically stores up to 50 transmitted
calls, and the logs can be used as a supplement to your log-
book.
Enter “TX CALL LOG” in the DSC CALLS menu. q
MENU ➪ DSC ➪
Transmitted Call Log
(Push [MENU]) (Select icon)
(Rotate dial, then push [ENT].)
Push [ w Y]/[Z] to select the desired item, then push [ENT].
Rotate dial to scroll the DSC message contents. e
To delete the displayed DSC message, push [DEL]. r
•Theconrmationscreenisdisplayed,thenpush[OK]todelete.
Push [EXIT] to return to the normal operating mode. t
