New2001
77
8
OTHER FUNCTIONS

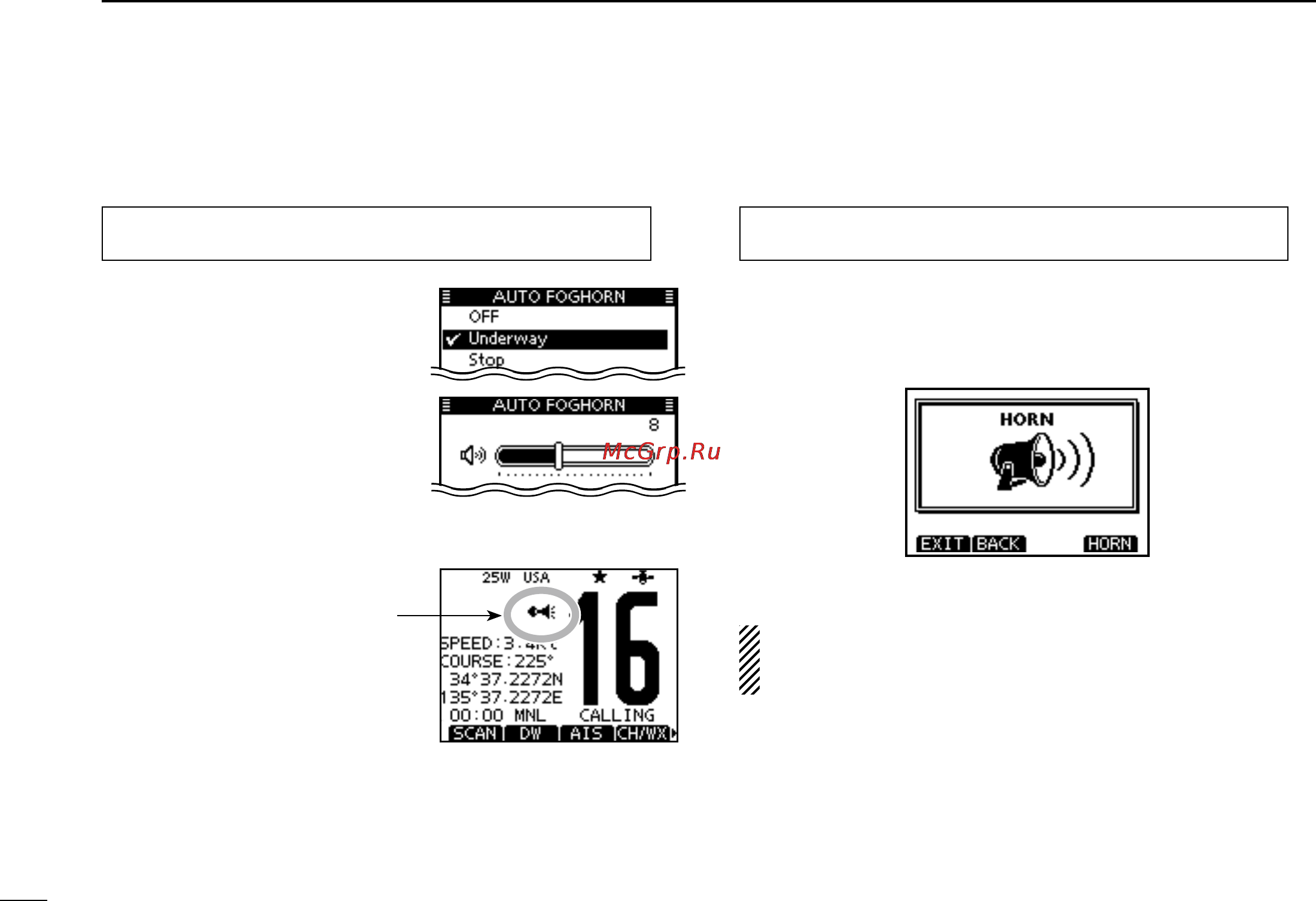

q Enter “Auto Foghorn” in the HORN menu.
D Manual Horn function
q Enter “Manual Horn” in the HORN menu.
w Hold down [HORN] to sound a horn.
•Whileholdingdown[HORN],thehornsounds,andthescreen
below is displayed.
•Toadjustthehornvolumelevel,rotatedial.
e Push [EXIT] to return to the normal operating screen.
While in the Horn mode, the transmit and receive functions
are disabled. When the transceiver is transmitting, the
Horn function is disabled.
MENU ➪ HORN ➪ Auto Foghorn
(Push [MENU]) (Select icon)
(Rotate dial, then push [ENT].)
Appears
w Rotate dial or push [Y]/[Z] to
select the desired foghorn pat-
tern, and then push [ENT].
e Rotate dial or
push [Y]/[Z]/[Ω]/
[≈]
to adjust the foghorn level.
•Thefoghornlevelisadjustablein
20 steps.
r Push [MENU] to exit the MENU
screen.
•Thehorniconisdisplayed.
t To return to normal operation,
select [OFF] in the Auto Fog-
horn menu.
MENU ➪ HORN ➪ Manual Horn
(Push [MENU]) (Select icon)
(Rotate dial, then push [ENT].)
