DSC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

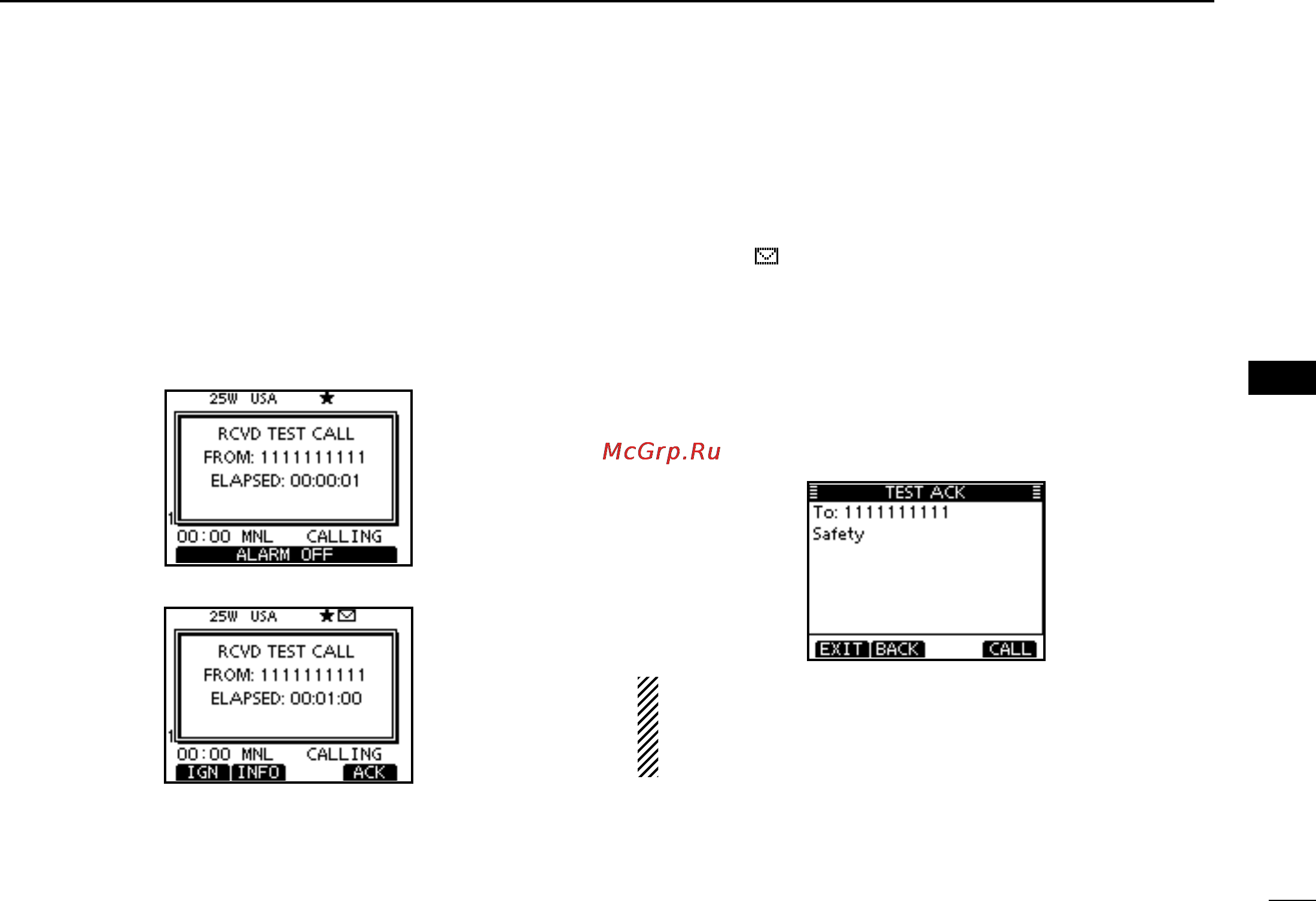

D Receiving a Test Call
When a Test Call is received:
➥ The alarm sounds for 2 minutes.
➥ “RCVD TEST CALL” appears. The LCD backlight blinks for
2 minutes.
q Push [ALARM OFF] to stop the alarm and the blinking
backlight.
•Evenifyoudonotpush[ALARMOFF],thealarmstopsafter2
minutes, and then the screen in step w is displayed.
w Push a softkey to select your desired action.
[IGN]
➥Push to ignore the Call and return to the normal operat-
ing mode.
•ThetransceiverexitstheDSCmode.
•The“ ” icon continues to blink and the Call is stored in the
Received Call Log.
[INFO]
➥Push to display the Received call information. (p. 65)
[ACK]
➥ Push to display the “TEST ACK” screen to reply to the
Call. (p. 45)
When “TEST ACK” is set to “Auto TX,” the transceiver au-
tomatically replies to the Call. In that case, both the TX and
RX calls are stored in the Transmitted and Received Call
Logs.
