Icom IC-M506 [44/124] Dsc operation
![Icom IC-M506 [44/124] Dsc operation](/views2/1074276/page44/bg2c.png)
35
7
DSC OPERATION
New2001

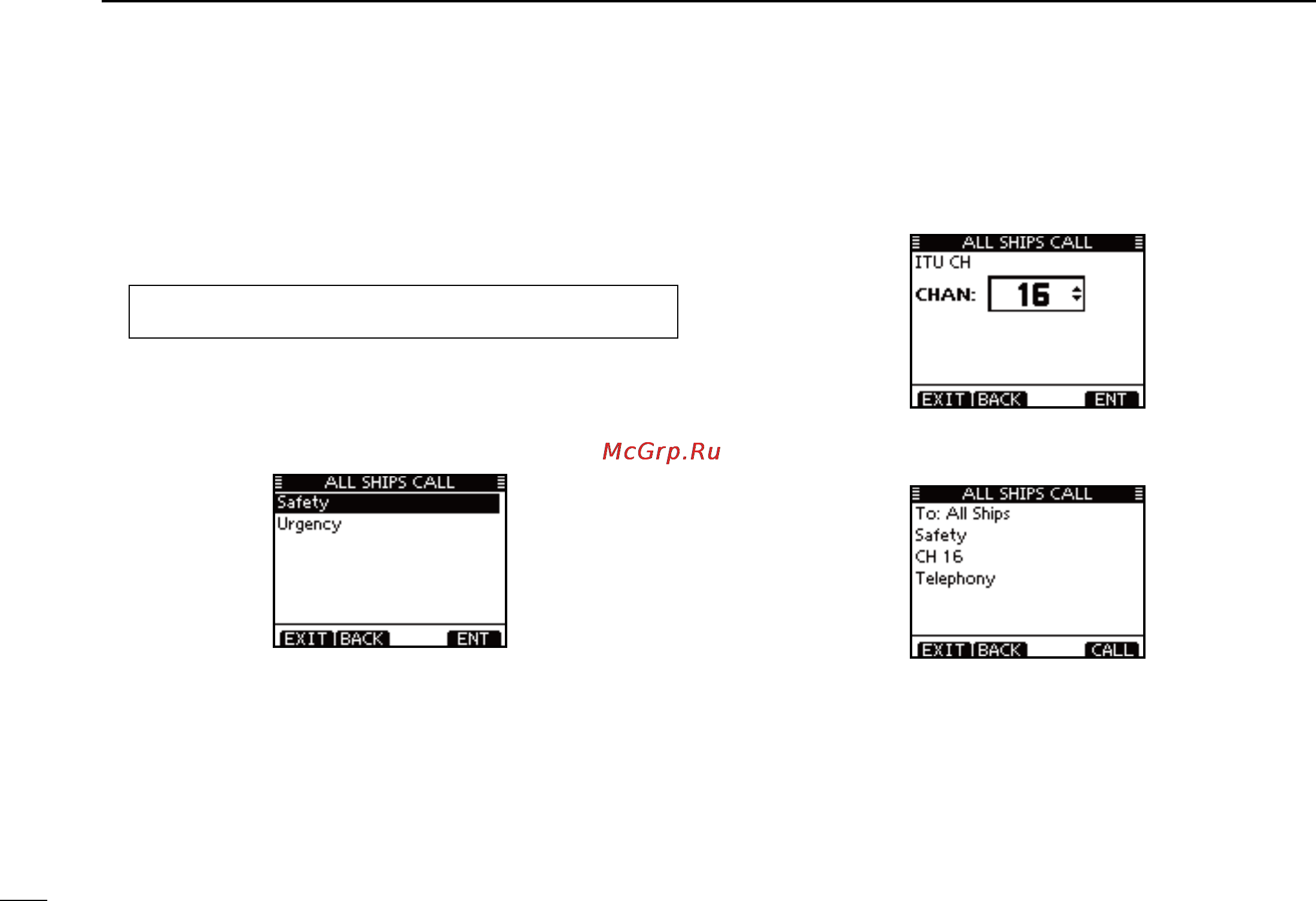

Transmitting an All Ships call D
All ships, that have DSC transceiver, use Channel 70 as their
‘listening channel.’ When you want to announce a message to
these ships within range, use the ‘All Ships Call’ function.
Enter “ALL SHIPS CALL” in the DSC CALLS menu. q
MENU ➪ DSC ➪ All Ships Call
(Push [MENU]) (Select icon)
(Rotate dial, then push [ENT].)
Select a desired category, using dial or [ w Y]/[Z], then push
[ENT].
•The selectable category may differ, depending on the pro-
grammed setting. Ask your dealer for the selectable categories.
Select a desired traffic channel, using dial or [ e Y]/[Z], then
push [ENT].
•Theselectedchannelisdisplayed.
r A confirmation screen is displayed.
•Conrmthecallcontents.
