47
7
DSC OPERATION
New2001New2001
Transmitting a Position Reply call D
Transmit a Position Reply call when a Position Request call
is received.
When the “POSITION ACK” in DSC Settings is set to ‘Auto’
(p. 68), the transceiver automatically transmits a reply call
when receiving a Position Request call.
Quick Reply:

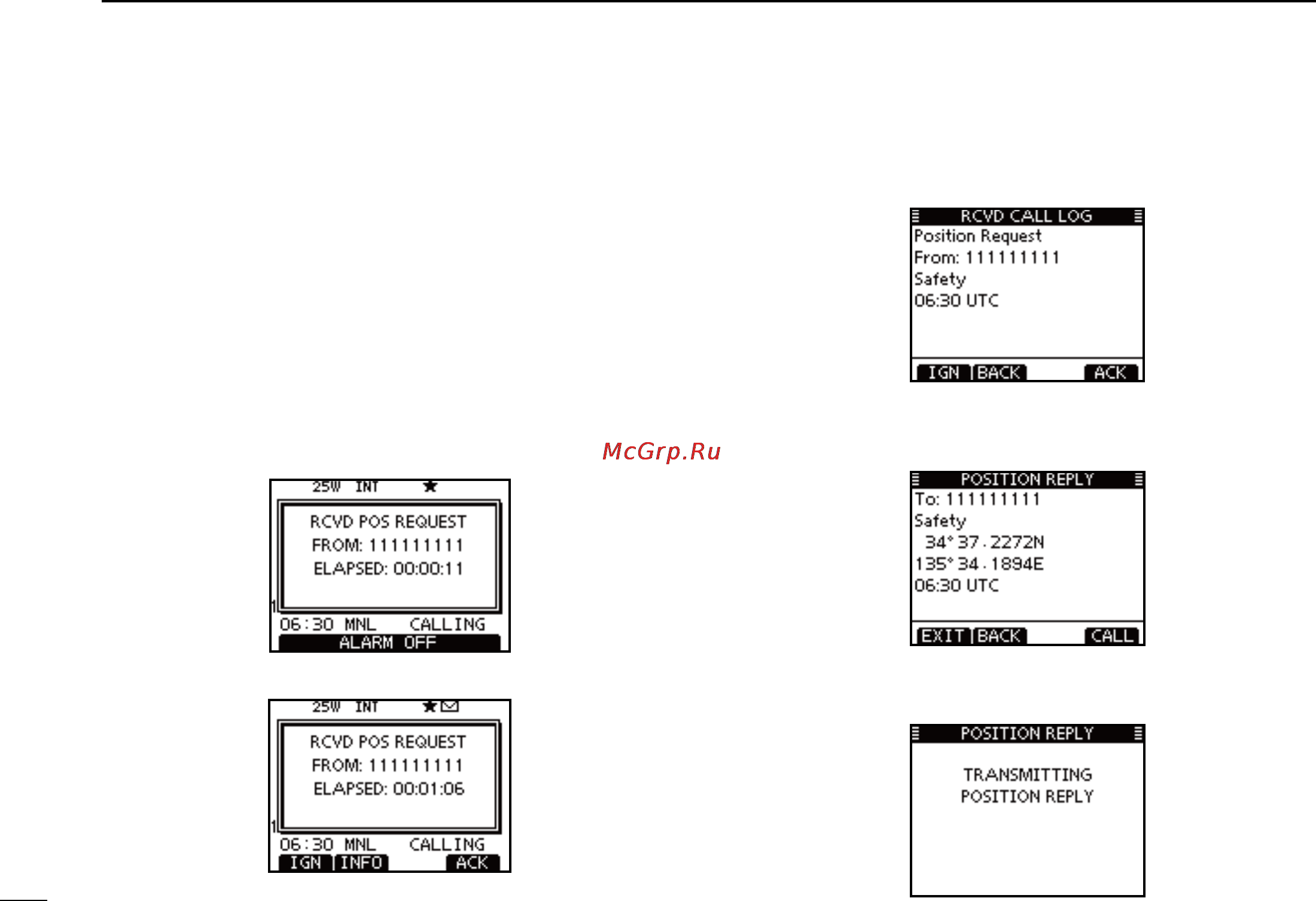

q When a Position Request call is received, alarm sounds
and the screen shown below is displayed.
Push [ALARM OFF] to stop the alarm.
•Evenifyoudonotpush[ALARMOFF],thealarmstopsafter2
minutes, and then the screen in step w is displayed.
w Push [ACK].
•Push[INFO]todisplaythePositionRequestcallinformation.
Push [BACK] to return to the previous screen, or push [ACK].
The Position Reply confirmation screen is displayed. e
Push [CALL] to transmit the reply call.
While transmitting the reply call, the screen shown below r
is displayed, and then returns to the normal operating
mode.
