75
8
OTHER FUNCTIONS

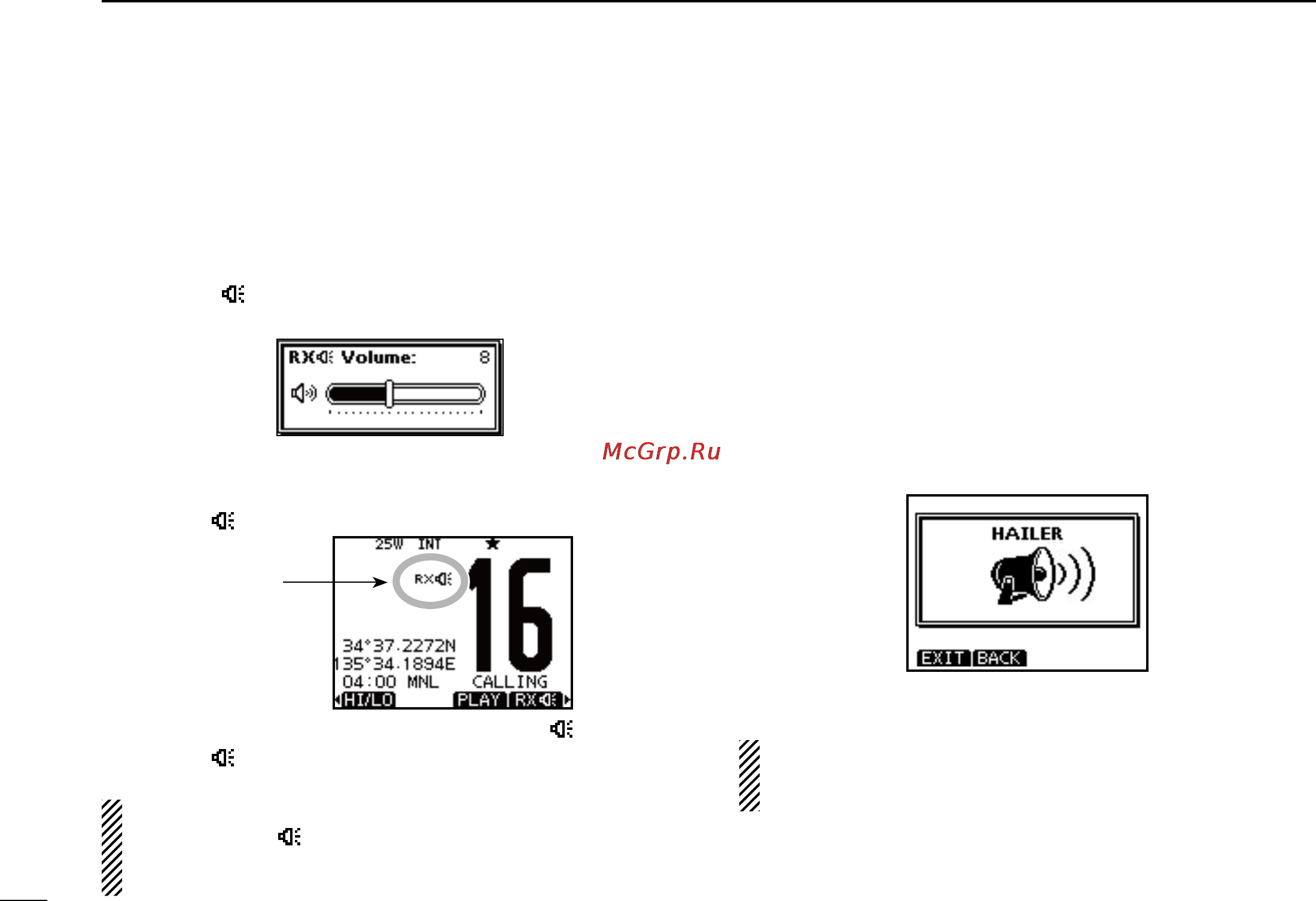

RX Hailer function ■
The RX Hailer function enables you to hear the received au-
dio on the deck or bridge through a Hailer speaker.
Connect an external hailer speaker as described on page 101.
Push q
[RX
]
to enter the RX Hailer mode.
•TheRXHailervolumeleveladjustmentscreenisdisplayed.
Rotate dial or push [ w Y]/[Z]/[Ω]/[≈] to adjust the RX Hailer
volume level, and then push [ENT].
•The“RX
”icon appears.
e
To return to normal operating mode,
push
[RX ].
•The“RX ” icon disappears.
To adjust the audio output level in the RX Hailer mode,
hold down
[RX
] for 1 second to display
the RX Hailer
volume level adjustment screen, and then rotate dial. After
adjusting, push [ENT] to set it.
Hailer operation ■
The IC-M506 has a 2 way hailer function, making it unneces-
sary to leave the bridge to talk with a another party.
Connect an external hailer speaker as described on page 101.
•Transmittingisnotpossiblewhileusingthehailer.
q Push [MENU].
w Rotate dial or push [Ω]/[≈] to select the “HAILER” icon and
then push the softkey below the icon.
•HAILERscreenisdisplayed.
e Hold down [PTT] and speak at a normal voice level.
•Whileholdingdown[PTT],thescreenbelowisdisplayed.
•Toadjustthehailerlevel,rotatedial.
r Push [EXIT] to return to normal operating screen.
While in the hailer mode, the transmit and receive func-
tions are disabled. When the transceiver is transmitting,
the hailer function is disabled.
Appears
