19
New2001
DSC OPERATION
7

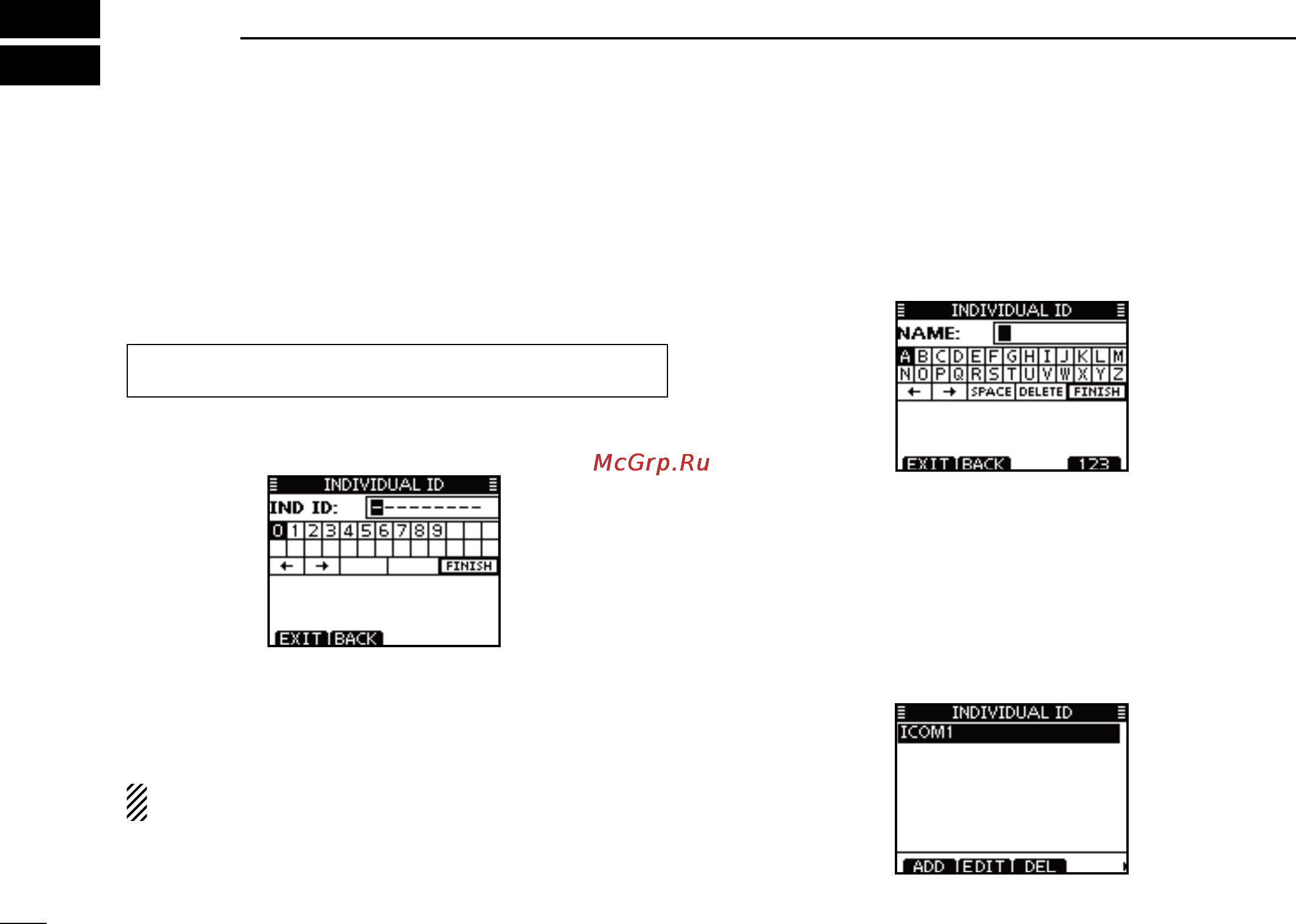

DSC address ID ■
Programming Individual ID D
A total of 100 DSC address IDs can be programmed and as-
signed a name of up to 10 characters.
Enter “INDIVIDUAL ID” in the DSC SETTINGS menu. q
Push [ADD]. w
•The“INDIVIDUALID”programscreenisdisplayed.
Enter a desired individual ID in the following way: e
•Selectadesirednumberusing[Y]/[Z]/[Ω]/[≈].
•Push[ENT]ordialtosetit.
•Tomovethecursor,rotatedialorselecteitherarrow,“←” or “→,”
then push [ENT] or dial.
The first digit is specified as ‘0’ for a Group ID.
The first two digits are ‘0’ for any Coast station ID.
r Repeat step e to enter all 9 digits.
t After entering the 9 digit code, push [ENT] or dial to set it.
•TheIDnameprogrammingscreenisdisplayed.
y Enter a desired 10 digit ID name in the following way:
•Selectadesiredcharacterusing[Y]/[Z]/[Ω]/[≈].
•Push[ENT]ordialtosetit.
•Tomovethecursor,rotatedialor select either arrow, “←” or “→,”
then push [ENT] or dial.
•Push[123]then[!$?]then[ABC]toselectacharactergroup.
u After entering the ID name, select “FINISH” using [Y]/[Z]/
[Ω]/[≈], then push [ENT] to program it.
•The“INDIVIDUALID”listscreenisdisplayed.
i Push [MENU] to exit the MENU screen.
MENU ➪ DSC SET ➪
Individual ID
(Push [MENU]) (Select icon)
(Rotate dial, then push [ENT].)
