86
9
AIS RECEIVER (Depending on versions)
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
D Content lists of EPIRB-AIS targets’ DETAIL
screens
•TypeofAISTarget
•MMSICode
•CallSign
•IMONumber
•ClosestPointofApproach
•TCPA(TimetoCPA)
•Position(Latitude,
Longitude)
•SpeedOverGround
•CourseOverGround
•Heading
•PositionAccuracy
(H: High, L: Low)
•Range
•Bearing
•RateOfTurn
•BowtoAntennalength
•SterntoAntennalength
•PortsidetoAntenna
length
• Starboard side to Antenna
length
•Length
•Beam
•Draught
•TypeofShip
•NavigationStatus
•Destination
•Date
•Time

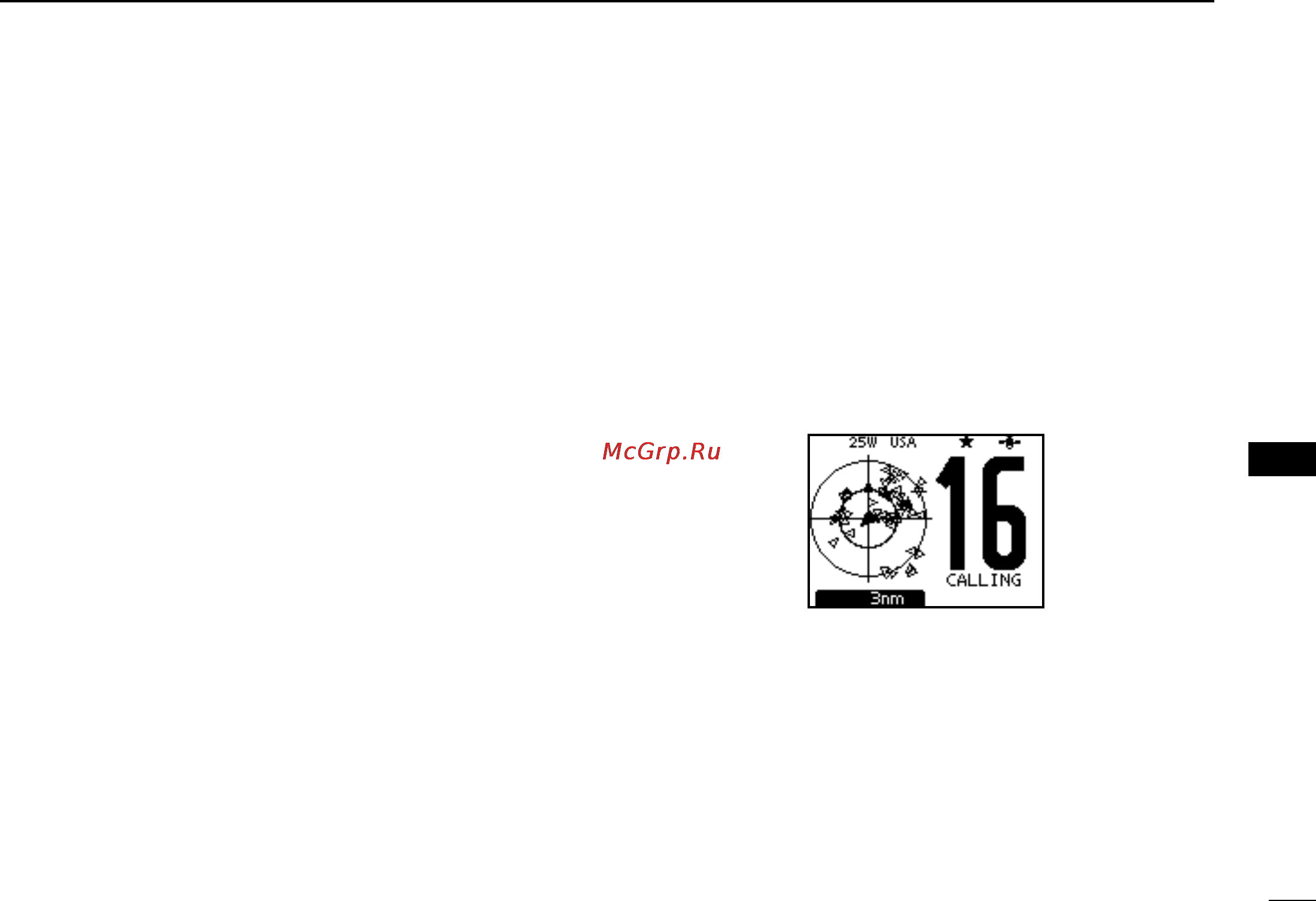

D AIS combo screen
You can display the AIS plotter during basic operation. (p 9)
q
Push [AIS] to display the
AIS plotter on the left side of the
screen
.
➥ Push [∫]/[√] to select an operating channel.
➥ Push [Ω]/[≈] to select a vessel.
•
A softkey [INFO] will appear.
➥ Push [INFO] or [ENT] to display the detail screen of the
selected AIS target.
➥ Push [MENU] to enter the Menu screen. (p. 91)
➥ Push [CLEAR] to exit the AIS combo screen.
