106
12
CONNECTIONS AND MAINTENANCE
e
End bolt
Locking nut
r

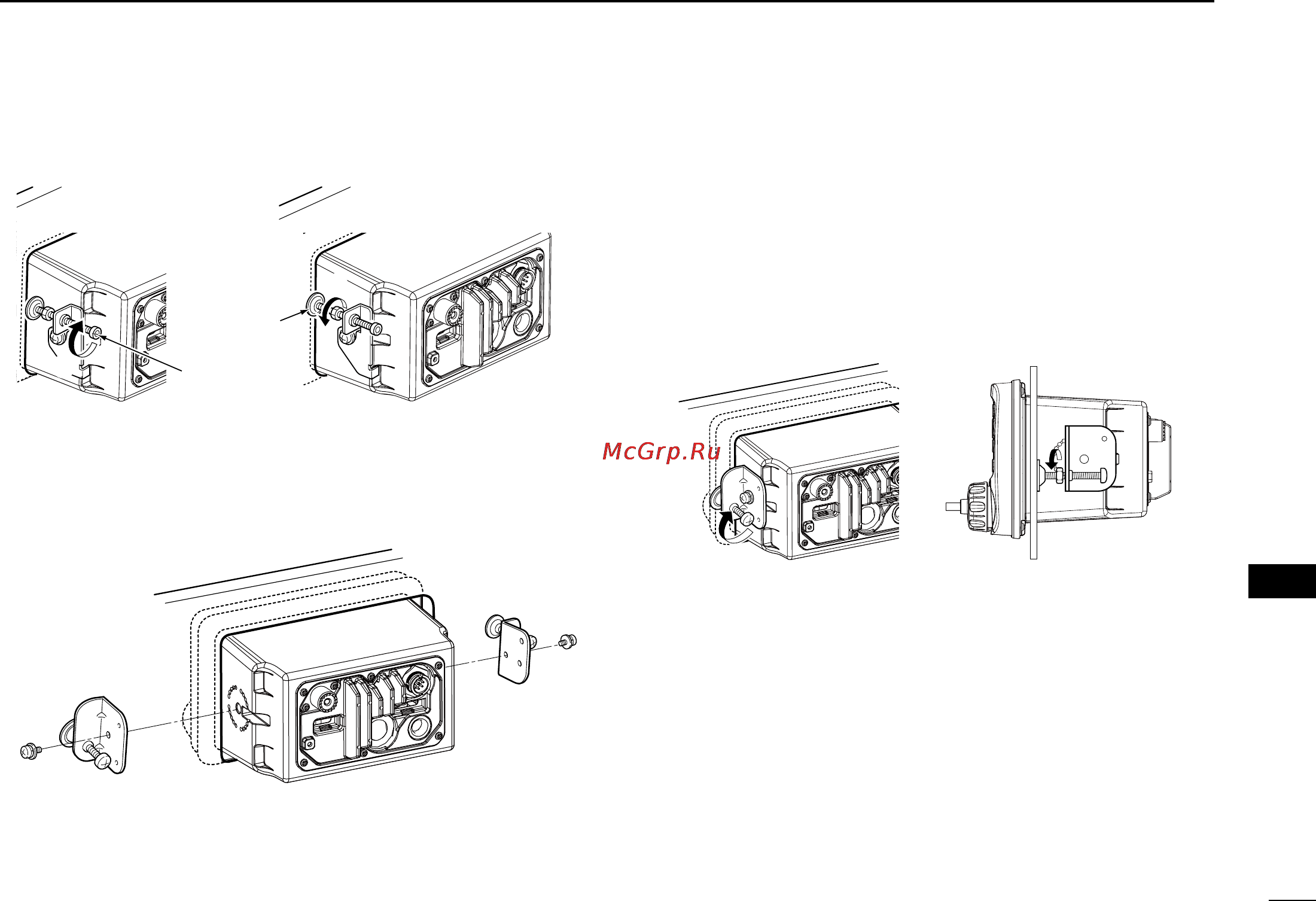

D MB-132 installation
q Attach the clamps on either side of the transceiver with 2
supplied bolts. (M5 × 8 mm)
•Makesurethattheclampsalignparalleltothetransceiverbody.
w Tighten the end bolts on the clamps (clockwise) so that the
clamps press firmly against the inside of the instrument
control panel.
e Tighten the locking nuts (counterclockwise) so that the trans-
ceiver is securely mounted in position, as shown below.
r Connect the antenna and power cable, then return the in-
strument control panel to its original place.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
w
e
