Icom IC-RX7 [11/108] Optional battery case
![Icom IC-RX7 [11/108] Optional battery case](/views2/1074718/page11/bgb.png)
New2001
3
1
ACCESSORY ATTACHMENT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
e Attach the battery cover to the receiver.
Keep battery contacts clean. It’s a good idea to clean bat-
tery terminals once a week.

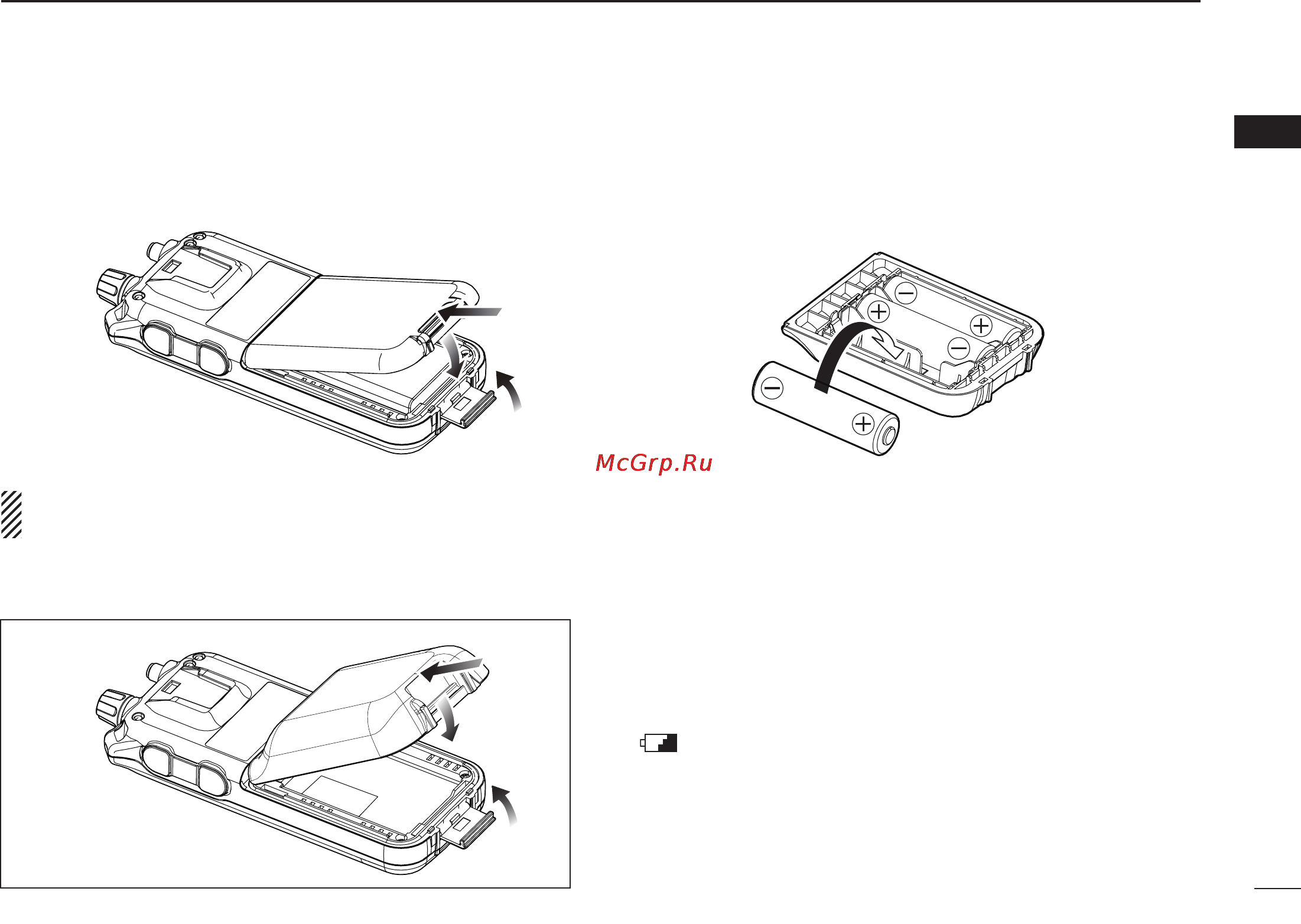

• BP-262 installation
■ Optional battery case
➥ Install 3 × LR6 (AA) size alkaline batteries into the op-
tional BP-262
battery case.
• Be sure to observe the correct polarity.
D Battery information
The batteries may seem to have low capacity when used in
low temperatures such as –10°C
(+14°F) or below. Keep the
battery case or pack warm in this case.
D Battery replacement
When the batteries become exhausted, the battery indicator
“
” appears then the receiving audio may be distorted. In
these cases, replace all batteries with new, same brand, al-
kaline batteries.
