New2001
52
7
MEMORY PROGRAMMING
New2001

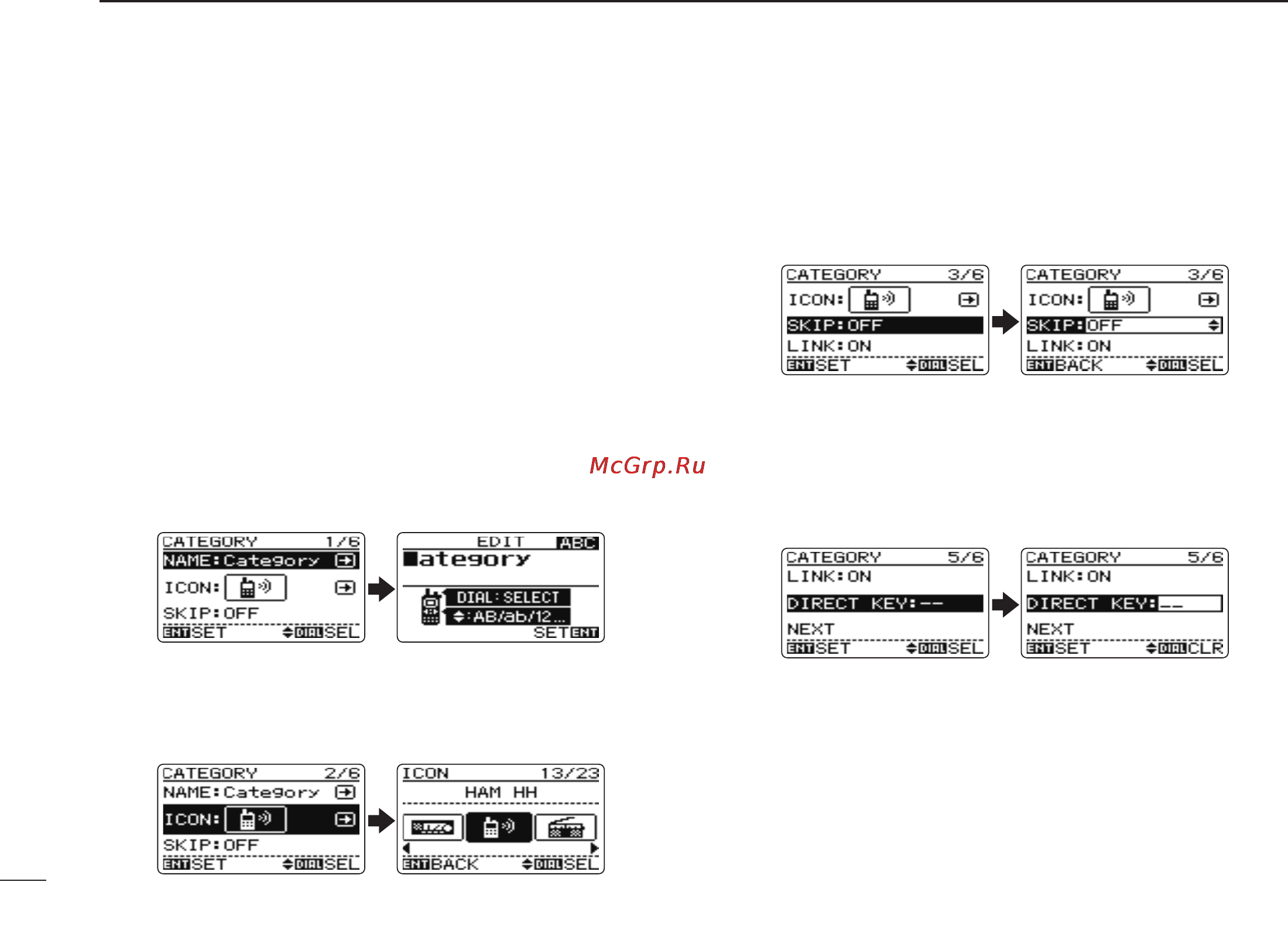

D New CATEGORY programming
q Push [r] or [s] (or rotate [DIAL]) to select the desired
information.
Selectable information:
• NAME • ICON • SKIP • LINK • DIRECT KEY
• NEXT (Edit GROUP programming)
NAME (Category name)
q Push [ENT MW] (or [w]) to edit the name programming.
w Rotate [DIAL] to select the desired character.
• Push [r] or [s] to select the character group from “ABC”
(alphabetical characters; capital letters), “abc” (alphabetical
characters; lower case letters), “123” (numbers) or “!”#” (sym-
bols). See next page for available characters details.
• Push [v] or [w] to move the cursor left or right, respectively.
• Push [CLR SQL] to clear the selected character.
• Push and hold [CLR SQL] to repeat clearing continuously.
ICON
q Push [ENT MW] (or [w]) to edit the setting state.
w Push [r] or [s] (or [v]/[w]) (or rotate [DIAL]) to se-
lect the desired icon, then push [ENT MW].
SKIP, LINK
q Push [ENT MW] (or [w]) to edit the setting state.
w Push [r] or [s] (or rotate [DIAL]) to select the desired
setting, then push [ENT MW].
DIRECT KEY
q Push [ENT MW] (or [w]) to enter the number input.
w Edit the desired 2 digit number with keypad.
• Duplicated number can not be assigned in the same cat-
egory (including direct key for group).
• See p. 51 for direct key operation details.
w Push [s] (or rotate [DIAL]) to select “NEXT,” then push
[ENT MW] to enter the GROUP programming state.
