MEMORY PROGRAMMING
New2001

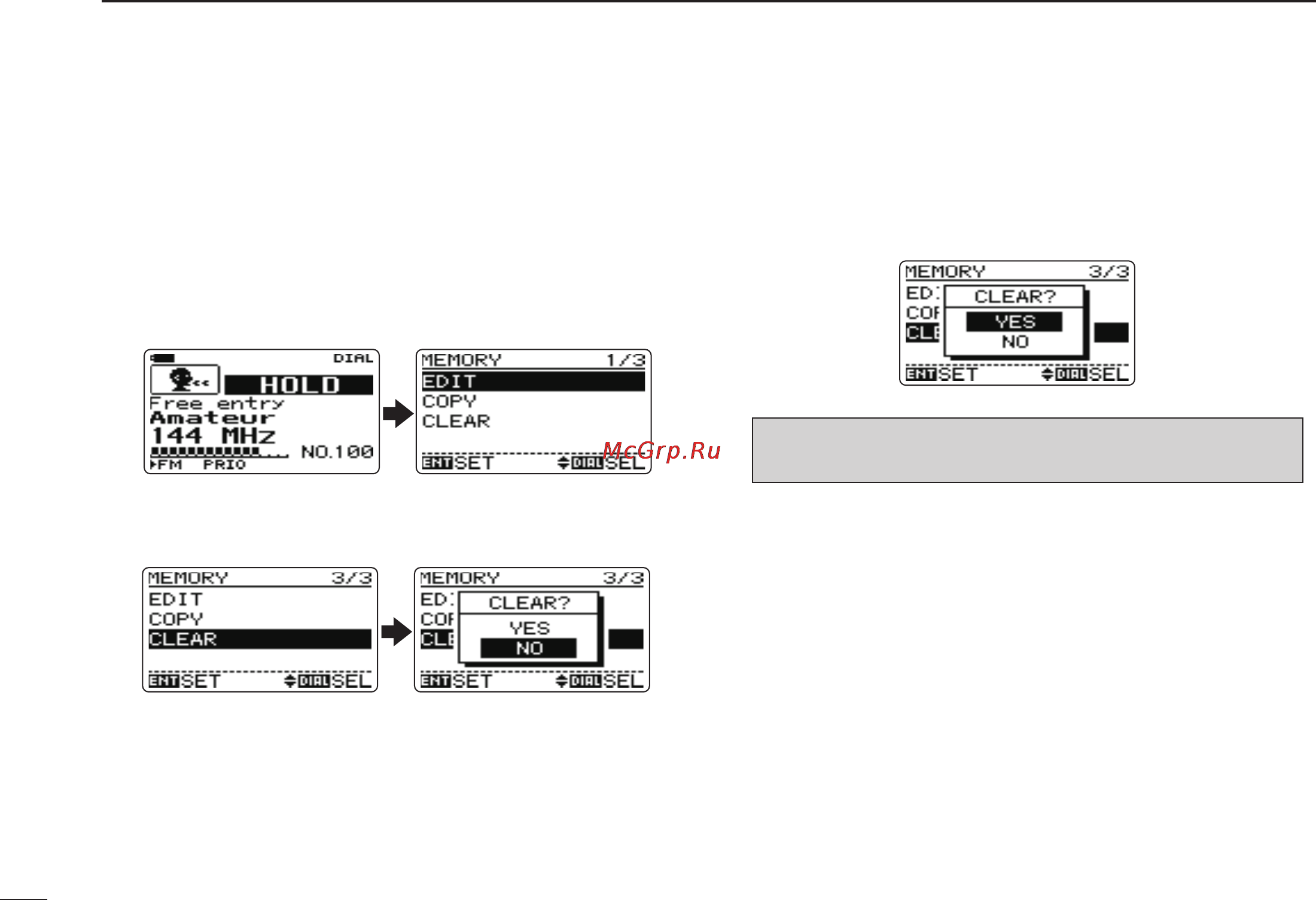

■ Clearing memory contents
Contents of programmed memories can be cleared (erased),
if desired.
q
Select the desired memory channel to be erased as page
56, then push and hold [ENT MW] for 1 sec. to enter
memory programming state.
• 1 short and 1 long beep sound.
w Push [s] twice (or rotate [DIAL]) to select “CLEAR,” then
push [ENT MW].
• “CLEAR?” window appears.
e Push [r] to select “YES,” then push [ENT MW] (or [w]).
• Select “NO,” then push [ENT MW] to cancel clearing.
• Returns to scan holding state.
BE CAREFUL! — the contents of cleared memories
CANNOT be recalled.
