■ Program link search
q

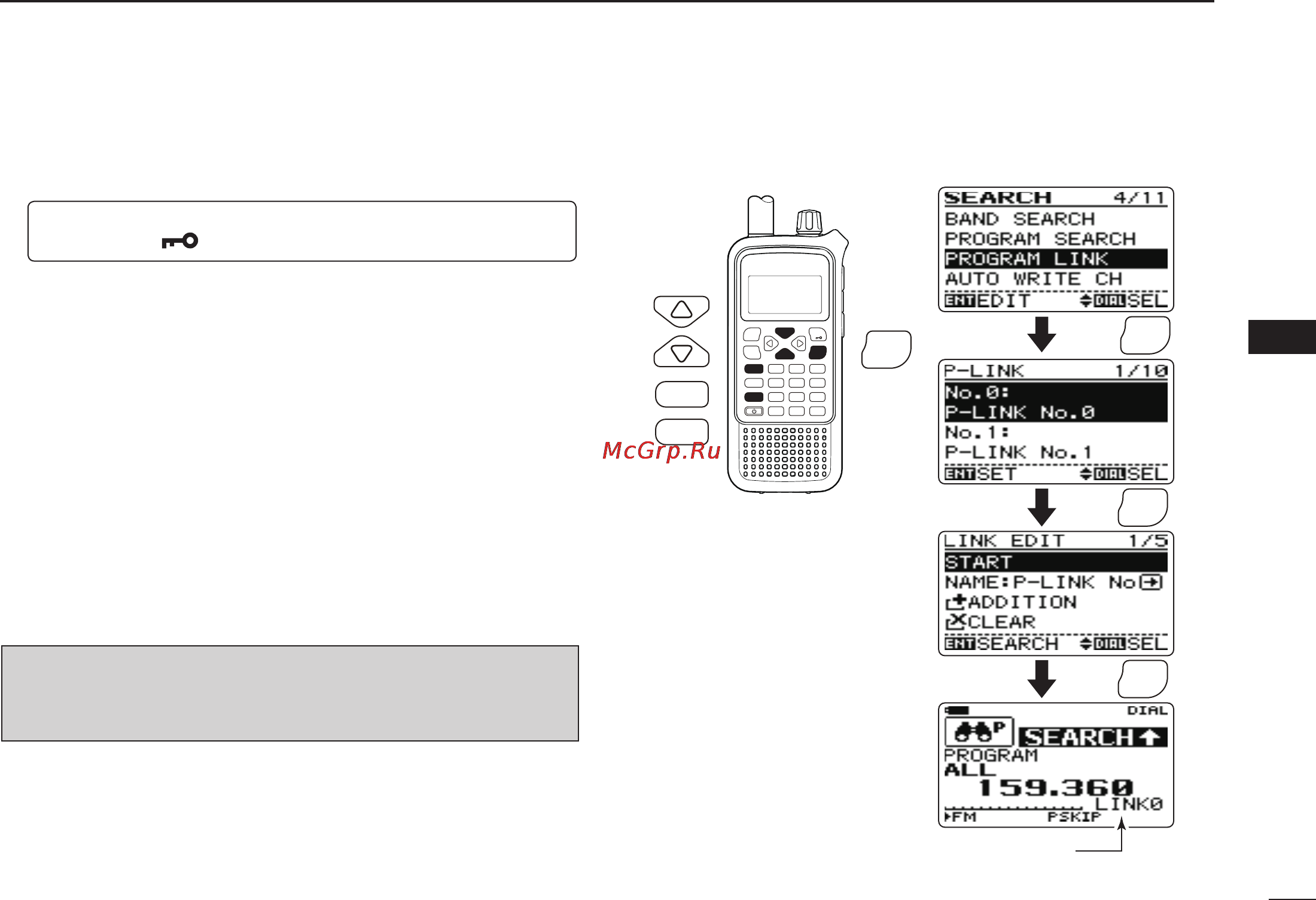

Enter “PROGRAM LINK SEARCH” in SEARCH menu.
MENU ➪ SEARCH ➪ PROGRAM LINK SEARCH
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
• SEARCH menu can also be entered by pushing and holding
[SEARCH] for 1 sec.
• Program link number selection screen appears.
w Push [r] or [s] several times (or rotate [DIAL]) to select
the desired program link number, then push [ENT MW] to
enter the link edit state.
• A total of 10 program link numbers (No. 0 to No. 9) are available.
e Push [ENT MW] again to start the search.
• Search pauses when a signal is received.
• Rotate [DIAL] to change the searching direction.
• After started the search, program link number can be changed
by pushing [v] or [w].
r Push [HOLD V] to stop the search temporarily, if desired.
• Push [HOLD V] again to restart the search.
NOTE: All program searches are linked in default settings.
Program links can be customized, see pages 32, 33 for
programming details.
