86
9
OTHER FUNCTIONS
New2001
86

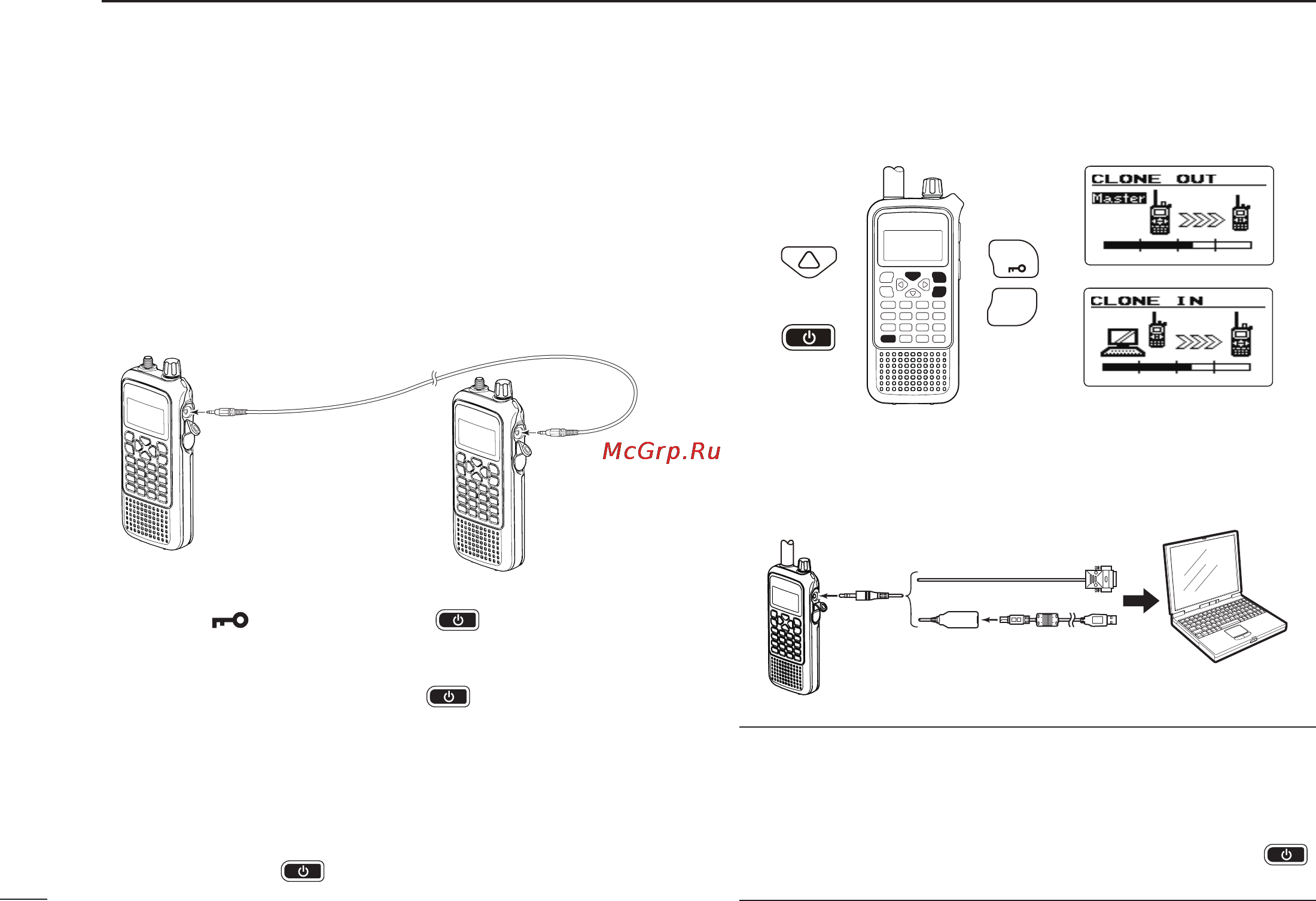

■ Cloning function
The IC-RX7 has receiver-to-receiver data cloning capability.
This function is useful when you want to copy all of the pro-
grammed contents from one IC-RX7 to another.
• An optional OPC-474 cloning cable is required.
q
Turn the receiver’s power OFF, then connect an optional
OPC-474 between both [SP] jacks as below.
to [SP]
OPC-474
to [SP]
Master receiver
Sub receiver
w Master receiver: While pushing and holding [r] and
[MENU
], push and hold [ ] for 1 sec. to enter
cloning mode.
• “MASTER” appears.
Sub receiver: Push and hold [ ] for 1 sec. to turn the
receiver power ON.
(See right below for more information.)
e Push [ENT MW] on the “master” receiver.
• “CLONE OUT” appears on the master receiver and “CLONE IN”
appears on the sub receiver and the bar meters show that clon-
ing is taking place.
• After the cloning is completed, the display shows “CLONE END.”
r Push and hold [ ] for 1 sec. to turn power OFF.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MENU
Master receiver
Sub receiver
MW
ENT
The optional CS-RX7 CLONING SOFTWARE is also available
to clone/edit contents with a PC (for Microsoft
®
Windows
®
2000/XP or Windows Vista
TM
) and using ICF format files.
to [SP]
PC
IC-RX7
OPC-478
(RS-232C type)
OPC-478UC
(USB type)
to USB port
to RS-232C
port
✔ CLONING MODE ENTRY (except Master receiver):
When the CI-V baud rate (p. 69) is selected any other than
“9600” or “AUTO,” the following operations are required.
q
Turn the receiver’s power OFF.
w
While pushing and holding [SCAN], push and hold [ ]
for 1 sec. to enter cloning mode.
