Icom IC-RX7 [32/108] Search and scan operations
![Icom IC-RX7 [32/108] Search and scan operations](/views2/1074718/page32/bg20.png)
New2001
PROGRAM SEARCH (p. 28)
Repeatedly searches between
two user-programmed fre-
quencies. Used for checking
for frequencies within a speci-
fied range such as repeater
output frequencies, etc.
PROGRAM LINK SEARCH (p. 29)
Repeatedly searches user-
programmed frequencies
selected at PROGRAM LINK
item in the SEARCH menu.
All program searches are
linked in default settings.
AUTO WRITE SEARCH (p. 34)
The frequencies that the
search pauses on are auto-
matically stored into memory
channels.
24
New2001
SEARCH AND SCAN OPERATIONS
6

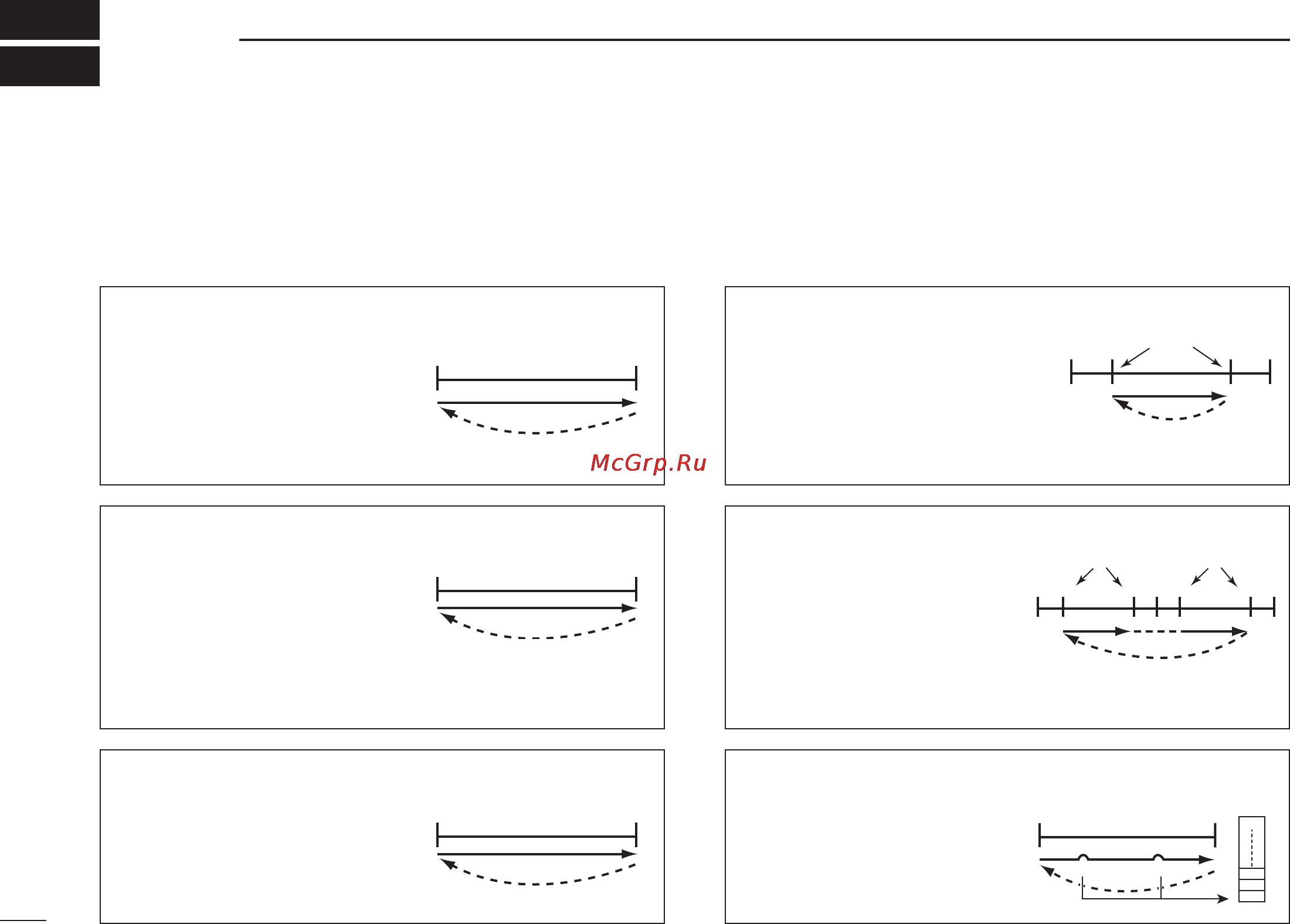

■ Search and scan types
The IC-RX7’s search and scan types are powerful tools for
finding new stations, fast.
FULL SEARCH (p. 26)
Repeatedly searches all fre-
quencies over the entire band.
Some frequency ranges are
not searched according to the
frequency coverage of the re-
ceiver’s version.
BAND SEARCH (p. 27)
Repeatedly searches all fre-
quencies over the entire se-
lected band.
150
kHz
1300.000
MHz
Search
Jump
Band
edge
Band
edge
Search
Jump
Band
edge
LOW HIGH
Band
edge
Edges
Search
Jump
New2001
BASIC SEARCH (p. 26)
Repeatedly searches all
frequencies over the prepro-
grammed band by the optional
cloning software CS-RX7.
Air, Marine, Ham, Racing,
Broadcast, and etc. are avail-
able (default setting).
Band
edge
(Programmed band)
Category
Band
edge
Search
Jump
Band
edge
LOW HIGH
Band
edge
Edges
When the program search No.1 and No.2
are linked.
No.01 No.02
Edges
Search
LOW HIGH
Band
edge
Search
Jump
Jump
Edge Edge
Auto write
channels
Search
Pause Pause
000
001
002
199
Jump
