Icom IC-RX7 [34/108] Basic search

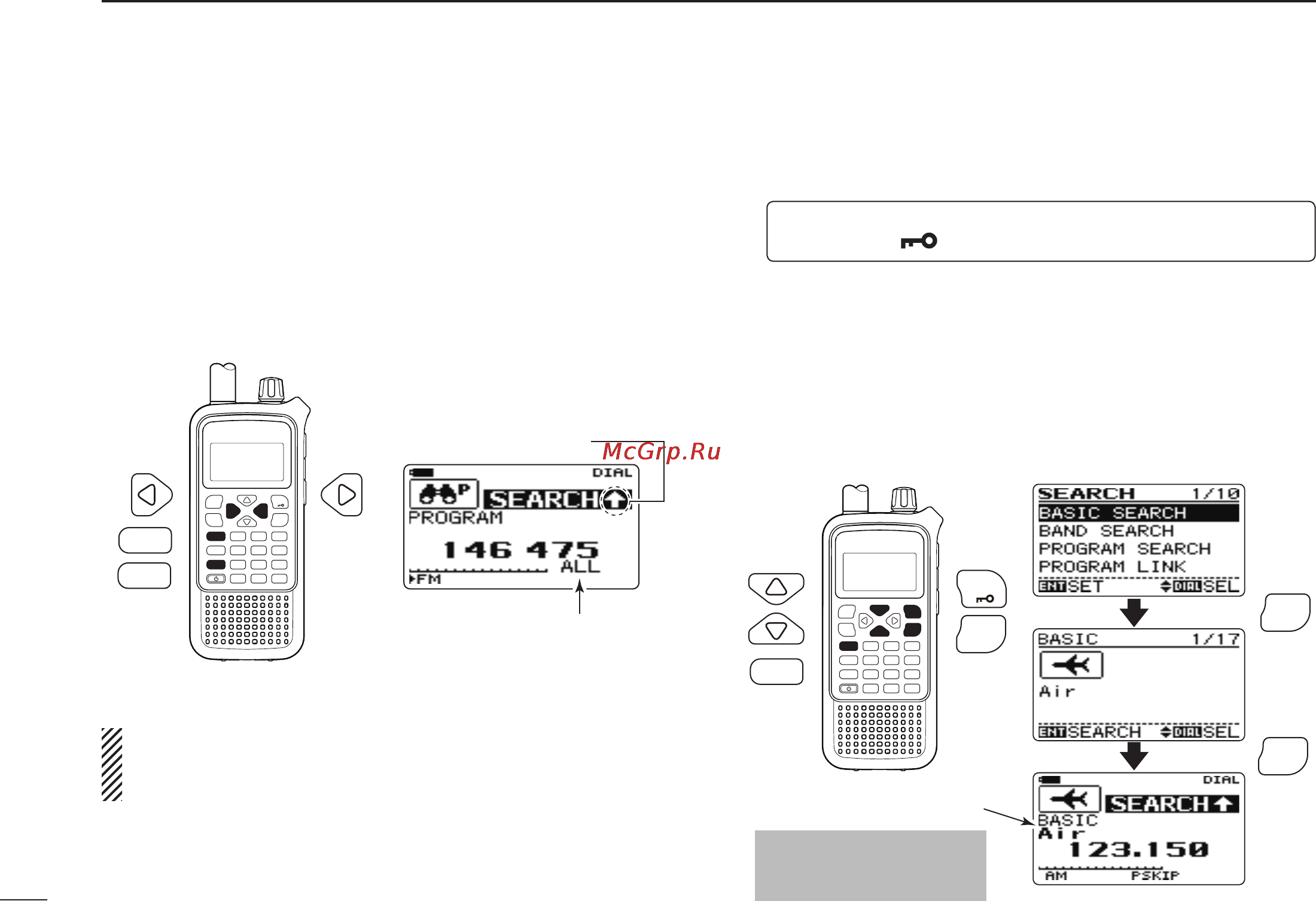

![Icom IC-RX7 [34/108] Basic search](/views2/1074718/page34/bg22.png)
26
6
SEARCH AND SCAN OPERATIONS
New2001 New2001
■ Full search
q Push [SEARCH] to start the full search.
• Search pauses when a signal is received.
• Rotate [DIAL] to change the searching direction.
w Push [v] or [w] several times to select the desired fre-
quency band.
e
Push [HOLD V] to stop the search temporarily, if desired.
• Push [HOLD V] again to restart the search.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
HOLD V
SEARCH
Arrow indicates
searching direction
“ALL” indicator appears
during full search
About the searching steps: The selected tuning step in
each frequency band (in VFO mode) is used during
search.
■ Basic search
q
Enter “BASIC SEARCH” in SEARCH menu.
MENU ➪ SEARCH ➪ BASIC SEARCH
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
• SEARCH menu can also be entered by pushing and holding
[SEARCH] for 1 sec.
• 1st category appears.
w Push [r]/[s] (or rotate [DIAL]) to select the desired cat-
egory, then push [ENT MW] to start the search.
• Search pauses when a signal is received.
• Rotate [DIAL] to change the searching direction.
e Push [HOLD V] to stop the search temporarily, if desired.
• Push [HOLD V] again to restart the search.
MW
MENU
ENT
HOLD
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
HOLD V
MENU
Push
MW
ENT
Push
MW
ENT
“BASIC” and selected
category appear
The frequencies of the
basic search are changed
by optional CS-RX7.
