PANEL DESCRIPTION
New2001
2
LEFT/RIGHT KEY [v]/[w]
➥ During VFO mode or search mode, push to
select the operating frequency band. (p. 18)
➥ During VFO mode, push and hold for 1 sec. to
select and toggle 1 MHz and 10 MHz tuning
steps. (p. 22)
➥ During scan mode, push to select the group.
(p. 18)
➥ During scan mode, push and hold for 1 sec. to
select the category. (p. 18)
➥ During menu screen operation, push to select
the upper layer or lower layer. (p. 59)
UP/DOWN/VOLUME CONTROL KEY [r]/[s]
➥ Adjust audio volume level. (p. 14)
➥ During menu screen operation, push to select
the set items or values. (p. 59)

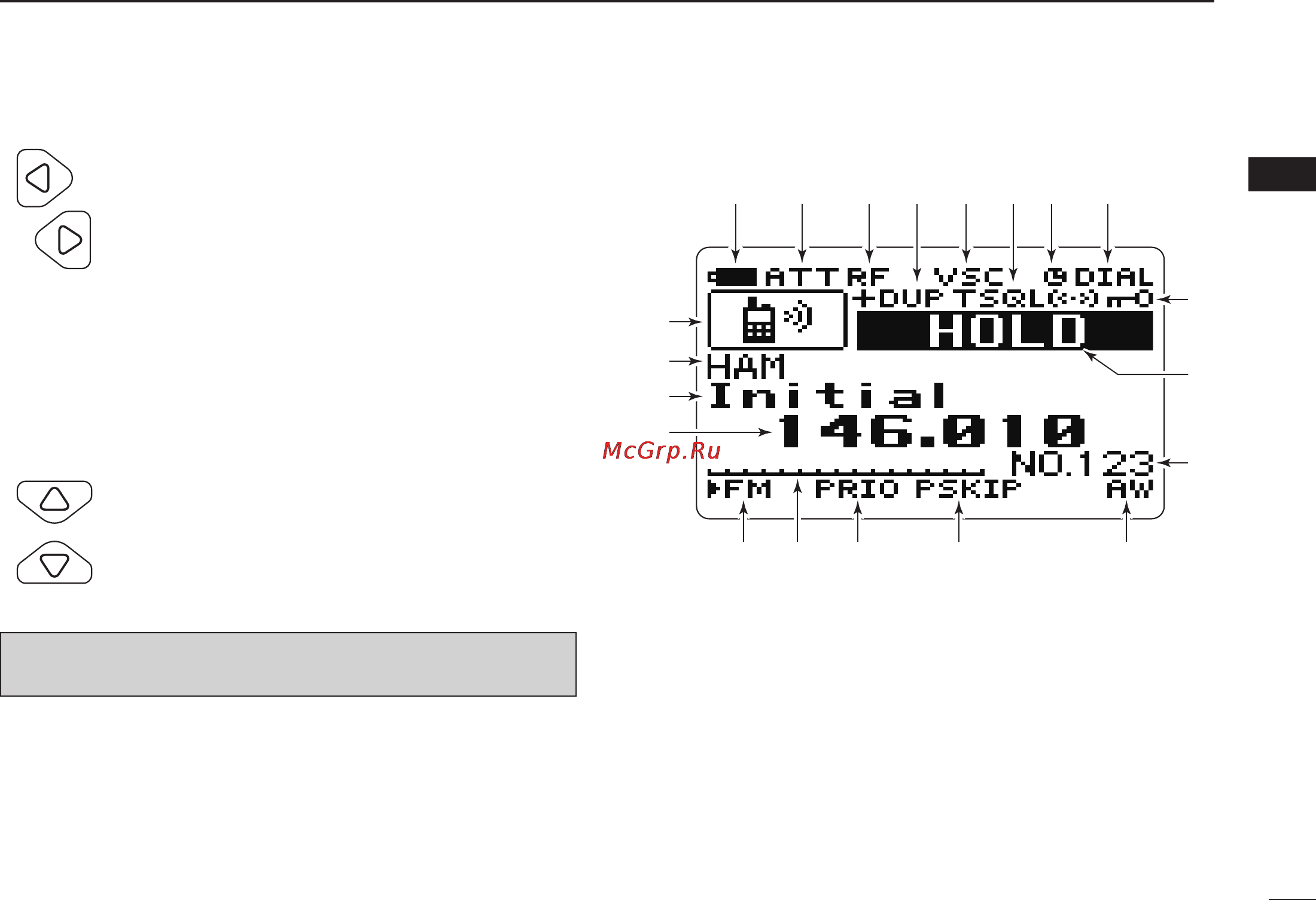

■ Function display
q ICON INDICATOR (p. 52)
Displays a variety of icon.
• Following 23 icons are available for category programming,
TRUCK, BUS, CAR, RACE CAR, TAXI, MOTORCYCLE,
TRAIN, SHIP, YACHT, AIRCRAFT, GLIDER, HAM, HAM HH,
RADIO, TV, EMERGENCY, FIRE, WEATHER, HUMAN, ANI-
MAL, BUILDING, HOUSE and PROGRAM SEARCH.
(Continue to the next page...)
q
w
r
e
t
uy
!8!9
@0 !7 !6
oi
!5 !4 !3
!2
!1
!0
The function of tuning control and volume control can be
traded. See page 77 for details.
