SEARCH AND SCAN OPERATIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

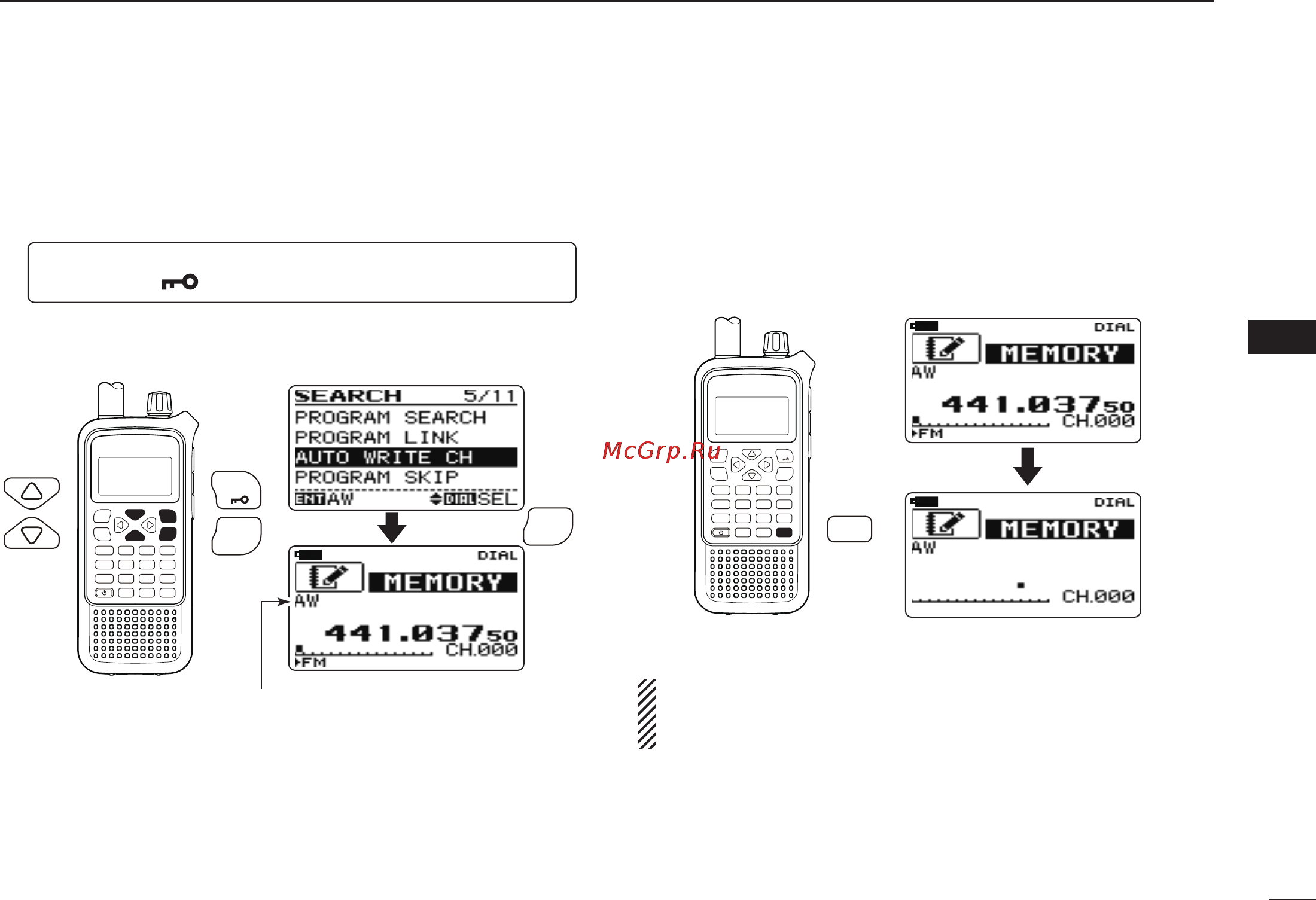

D Recalling the stored frequencies:
q
Enter “AUTO WRITE CH” in SEARCH menu.
MENU ➪ SEARCH ➪ AUTO WRITE CH
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
• SEARCH menu can also be entered by pushing and holding
[SEARCH] for 1 sec.
• Auto write channel appears.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
MENU
Push
MW
ENT
“AW” indicator appears
w Rotate [DIAL] to select the desired channel.
D Clearing the stored frequencies:
q Select the auto write channel group.
w Push and hold [SKIP] for 1 sec. to clear the all channel
contents.
• 1 short and 1 long beeps sound.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
SKIP
NOTE: The auto write channel contents CANNOT be
cleared by an independent channel. Thus it is a good idea
to copy the contents into regular memory channel.
