Icom IC-RX7 [87/108] Other functions
![Icom IC-RX7 [87/108] Other functions](/views2/1074718/page87/bg57.png)
79
9
OTHER FUNCTIONS
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
r Push [ENT MW] (or [v]) to return to MODE/TS/TONE...
menu, and push [CLR SQL] to return to frequency indica-
tion.

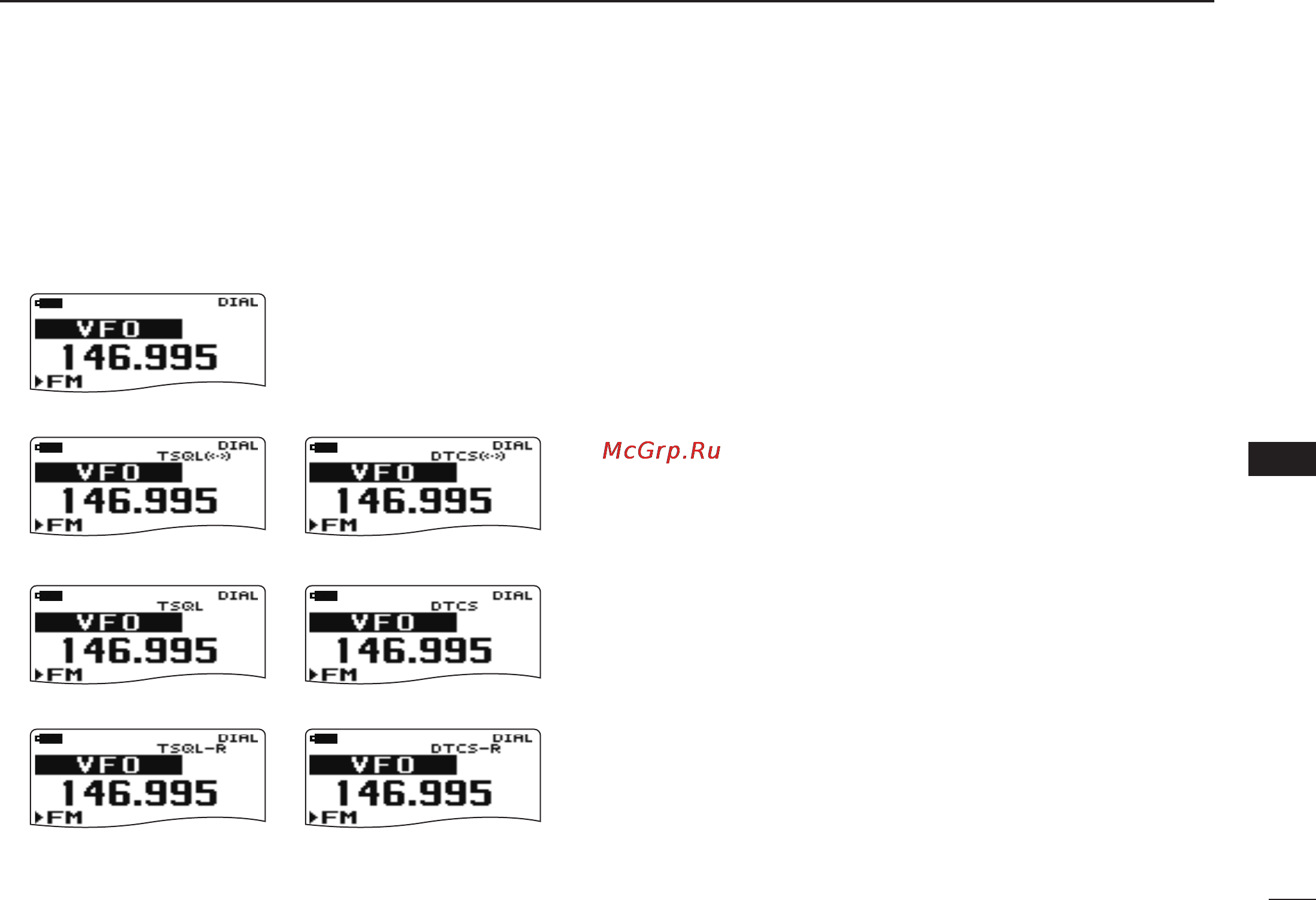

OFF (no indication)
Tone squelch with pocket beep DTCS squelch with pocket beep
Tone squelch DTCS squelch
Tone squelch reverse DTCS squelch reverse
t Operate the receiver in the normal way.
y When the received signal includes a matching tone/code,
the squelch opens and the signal can be heard.
• When the received signal’s tone/code does not match, tone/
DTCS squelch does not open, however, the S-indicator shows
signal strength.
• To open the squelch manually, push and hold [CLR SQL] for
1sec.
D Pocket beep function
q When pocket beep function is activated and the signal
with a matching tone/code is received, the receiver emits
beep tones for 30 sec. and blinks “S.”
w
Push [CLR SQL] to stop the beeps and blinking.
