New2001
80
9
OTHER FUNCTIONS
New2001
q

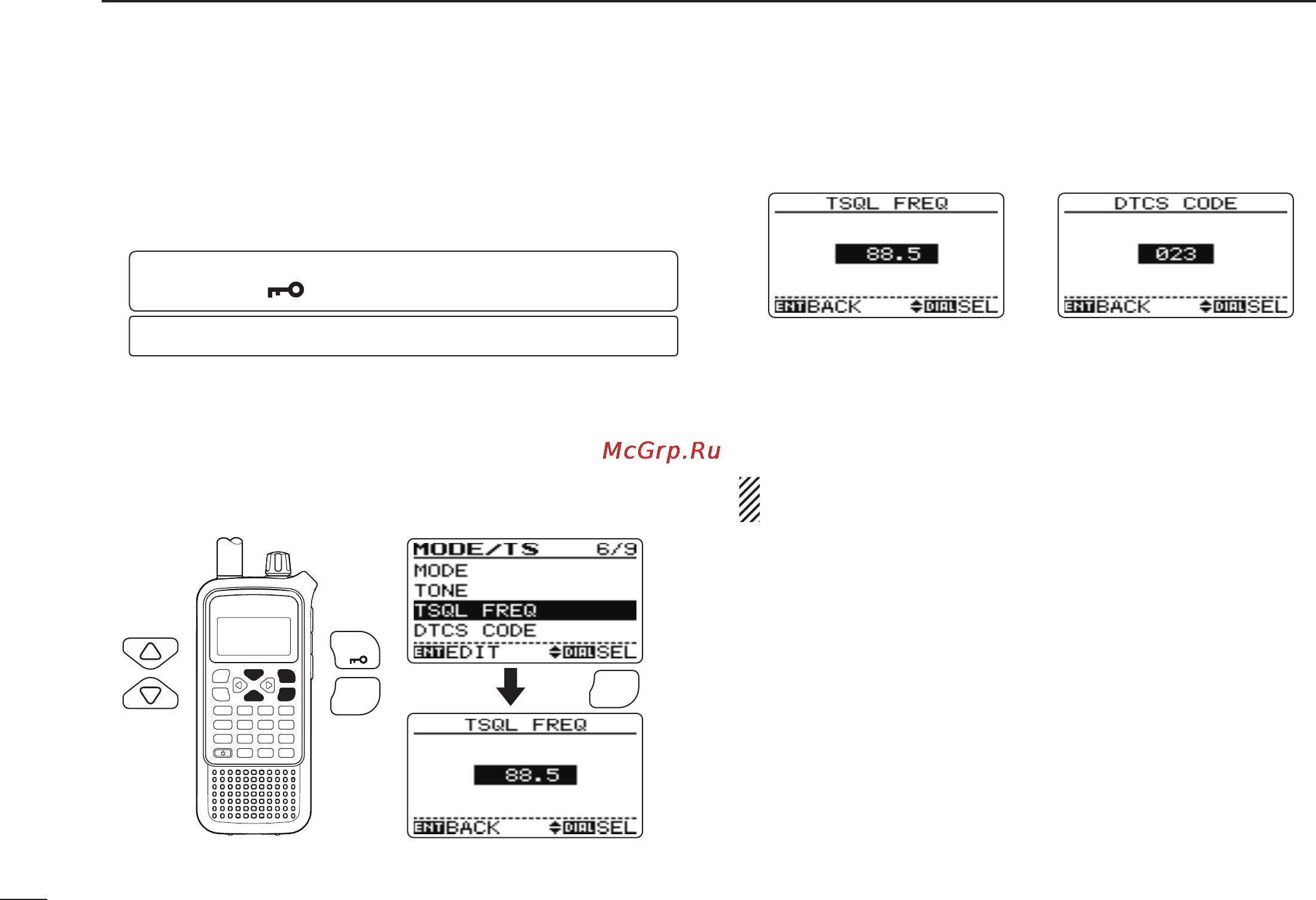

Enter “TSQL FREQ” or “DTCS CODE” in MODE/TS/
TONE... menu
for selecting tone squelch frequency or
DTCS code, respectively
.
MENU ➪ MODE/TS/TONE... ➪ TSQL FREQ (p. 64)
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
MENU ➪ MODE/TS/TONE... ➪ DTCS CODE (p. 65)
w Push [r]/[s] (or rotate [DIAL]) to select the desired tone
squelch frequency or DTCS code.
• Each operating band and each memory channel have inde-
pendent settings.
• See next page for available tone frequencies or DTCS codes
for details.
MW
MENU
ENT
HOLD V
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
MENU
Push
Tone squelch frequency
MW
ENT
Tone squelch frequency
DTCS code
e Push [ENT MW] (or [v]) to return to MODE/TS/TONE…
menu, and push [CLR SQL] to return to frequency indica-
tion.
DTCS phase mode can be selected in “DTCS POLAR-
ITY” setting.
(p. 81)
■ Tone squelch frequency/DTCS code setting
