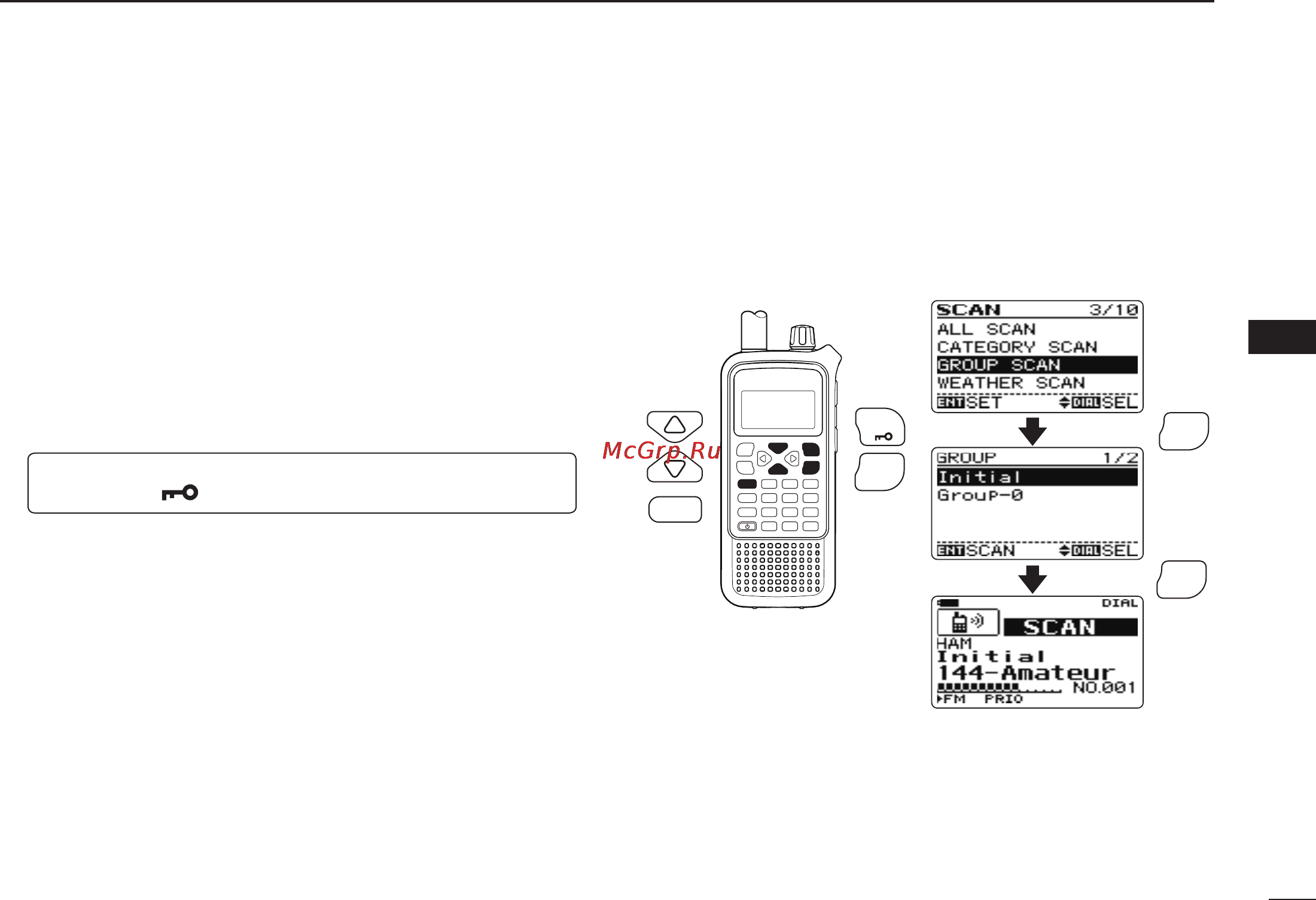

■ Group scan
Group scan repeatedly scans all memory channels in the
same group as the selected memory channel has been pro-
grammed.
q
Select the category that includes the desired group to be
scanned.
➥
Push [SCAN] to start a scan, then push [HOLD V] to
hold the scan.
➥
Push and hold [v] or [w] for 1 sec. to select the cat-
egory.
w
Enter “GROUP SCAN” in SCAN menu.
MENU ➪ SCAN ➪ GROUP SCAN
(Push [MENU ]), (Push [r]/[s], then push [ENT MW].)
• SCAN menu can also be entered by pushing and holding
[SCAN] for 1 sec.
e Push [r]/[s] (or rotate [DIAL]) to select the desired
group, then push [ENT MW].
• Scan pauses when a signal is received.
• Rotate [DIAL] to change the scanning direction.
r Push [HOLD V] to stop the scan temporarily, if desired.
• Push and hold [v] or [w] for 1 sec. several times to select the
desired memory category; or push [v] or [w] several times to
select the desired group.
• Push [HOLD V] again to restart the scan.
MW
MENU
ENT
HOLD
SCAN
.
1
4
7
2
5
8
0
3
6
9
SKIP
NO.
CLR
SQL
DIAL
SEARCH
ATT
MW
ENT
HOLD V
MENU
Push
MW
ENT
Push
MW
ENT
